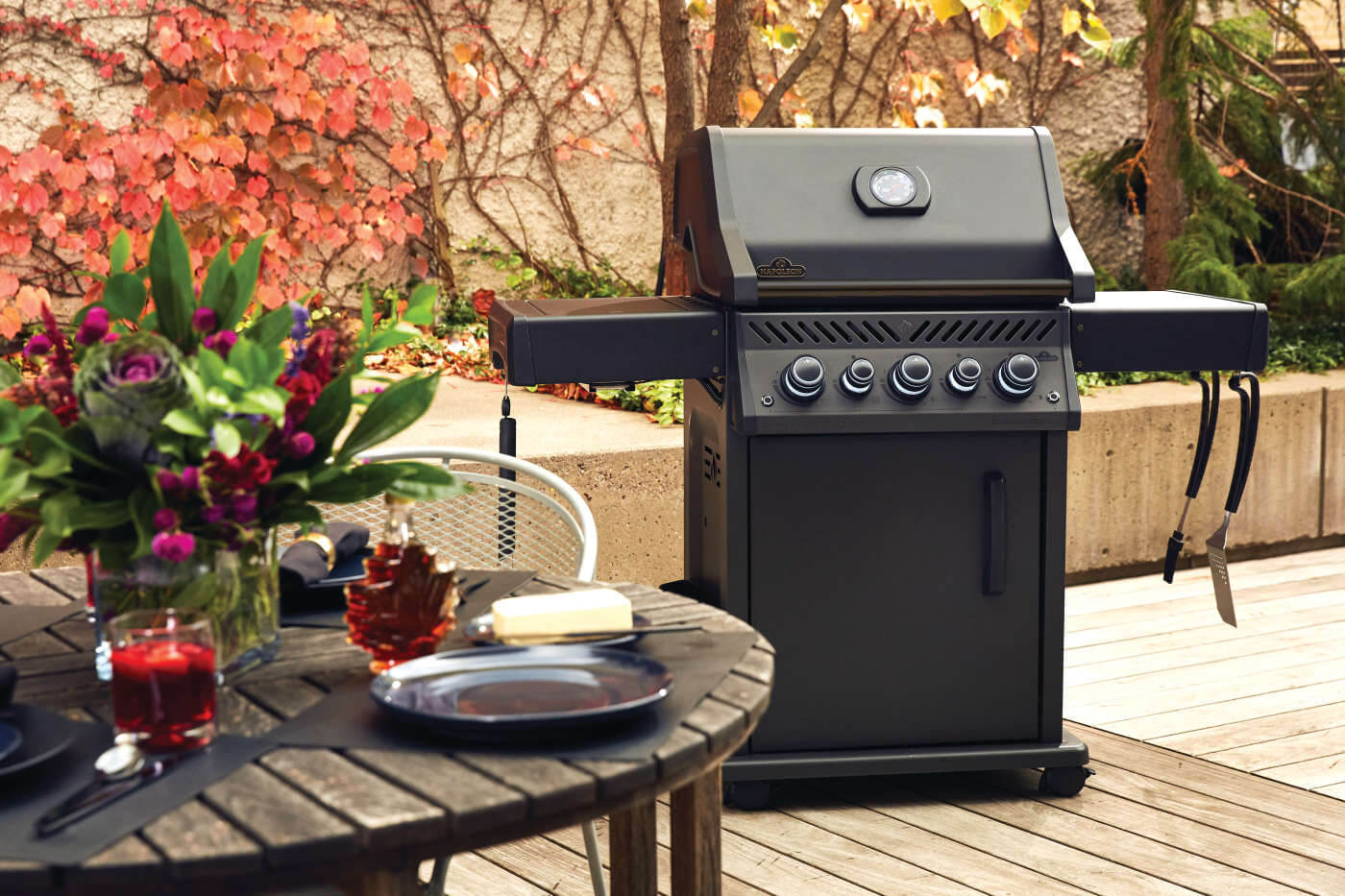

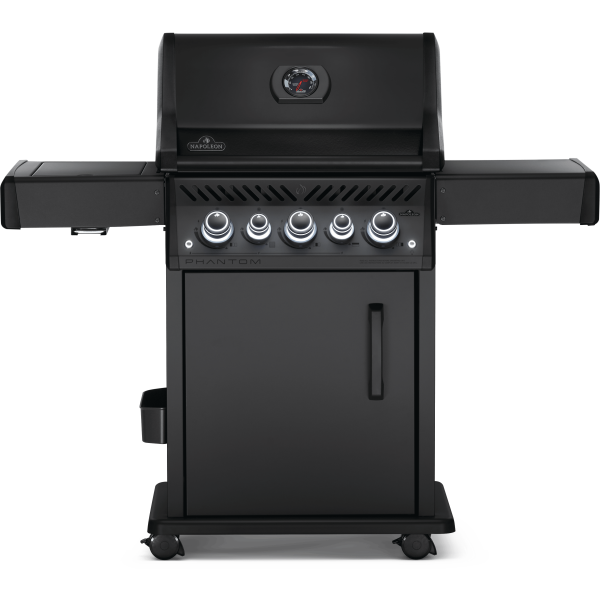

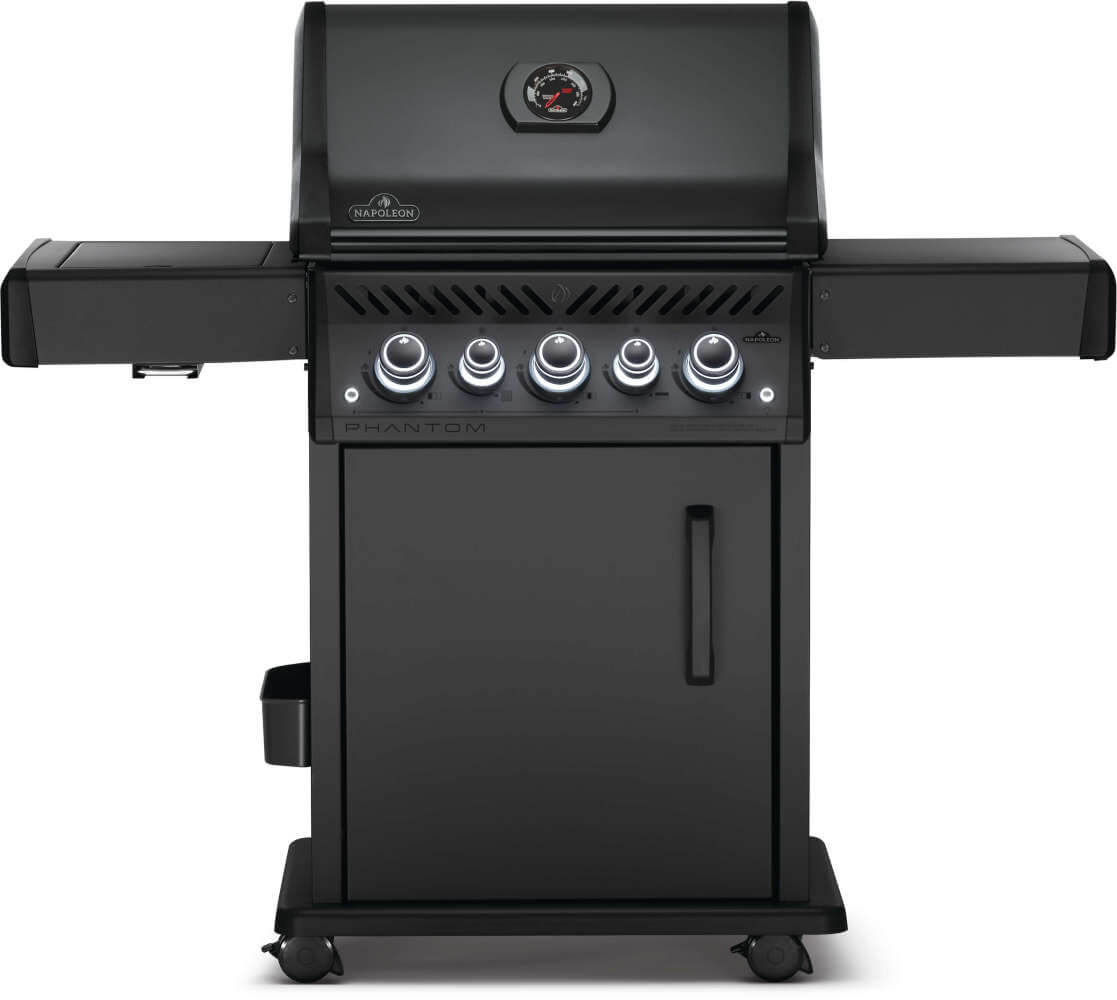

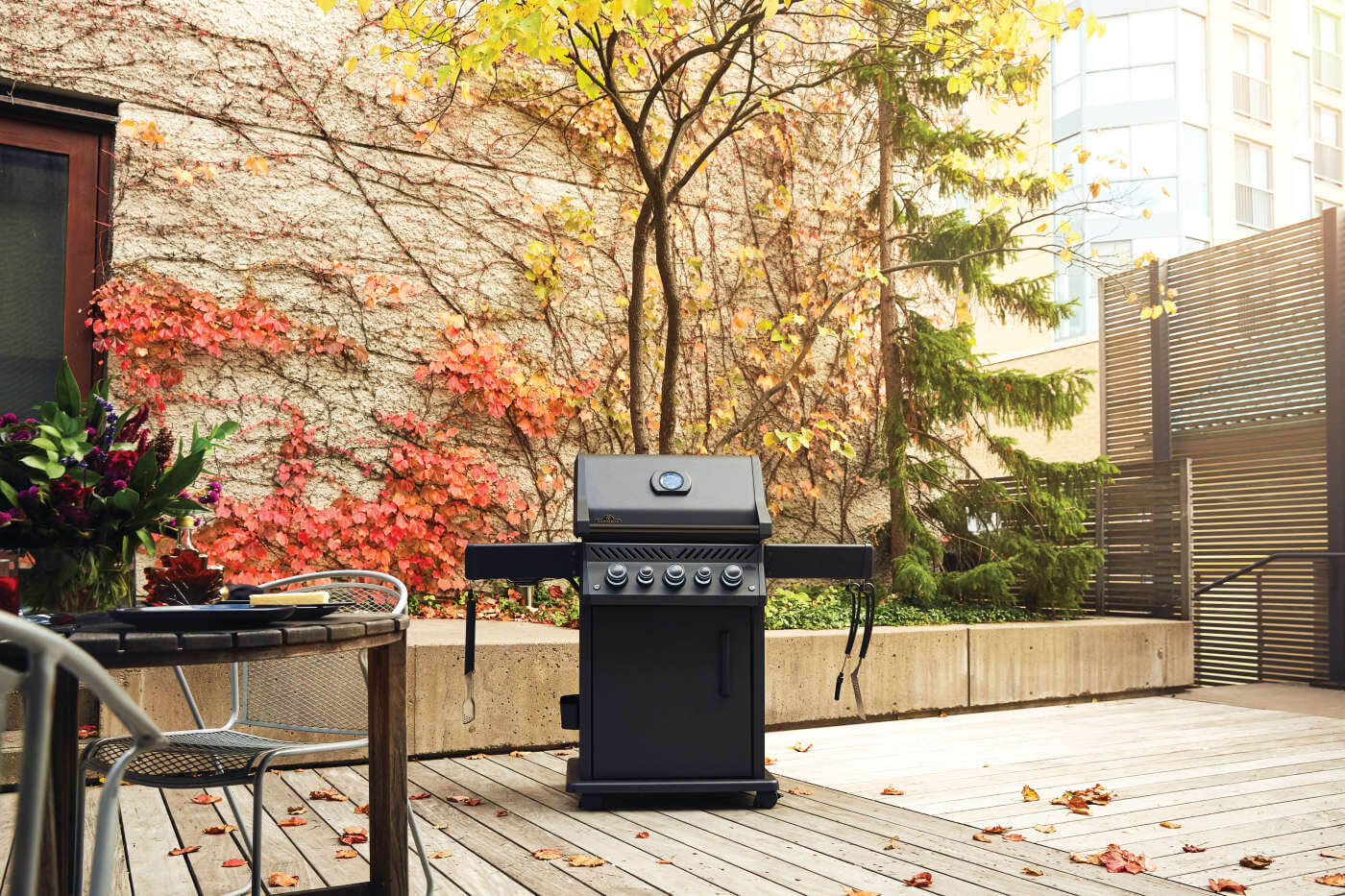

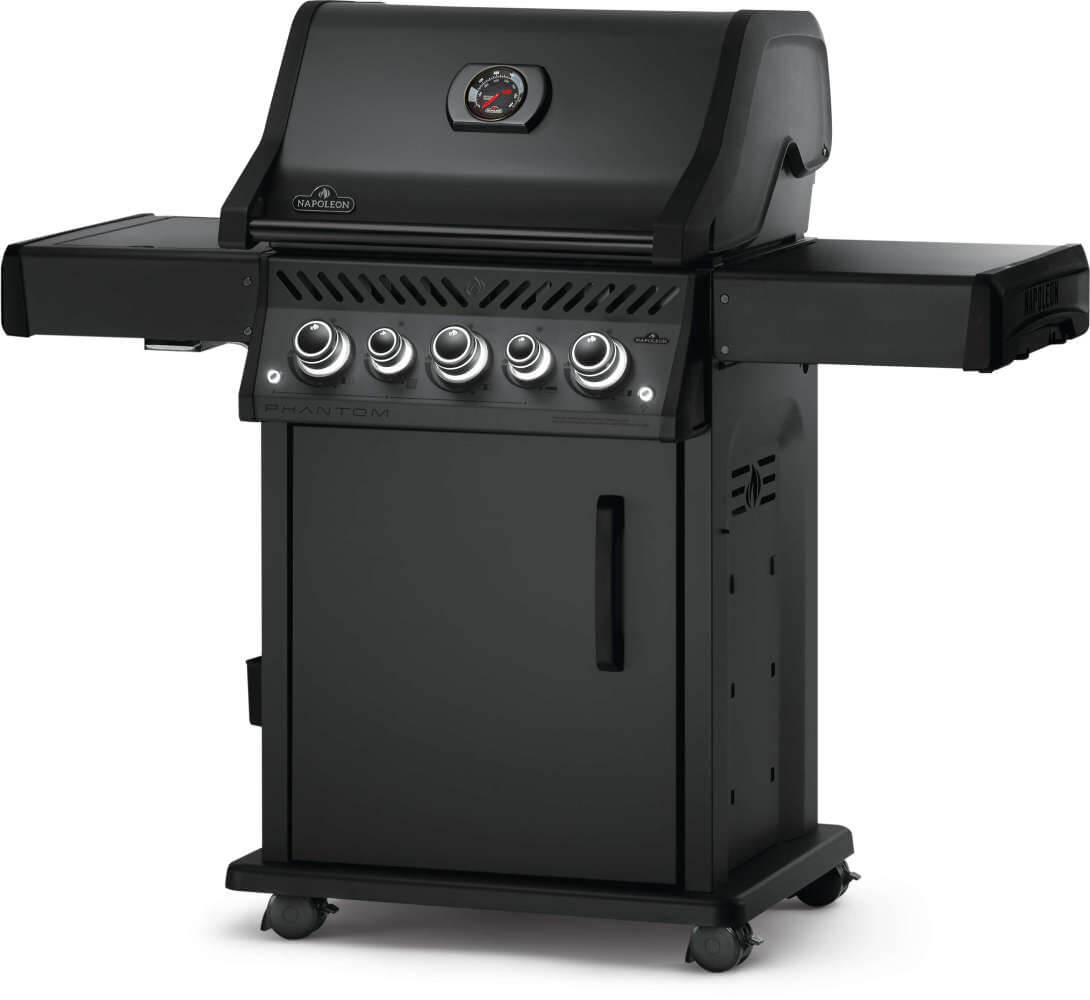

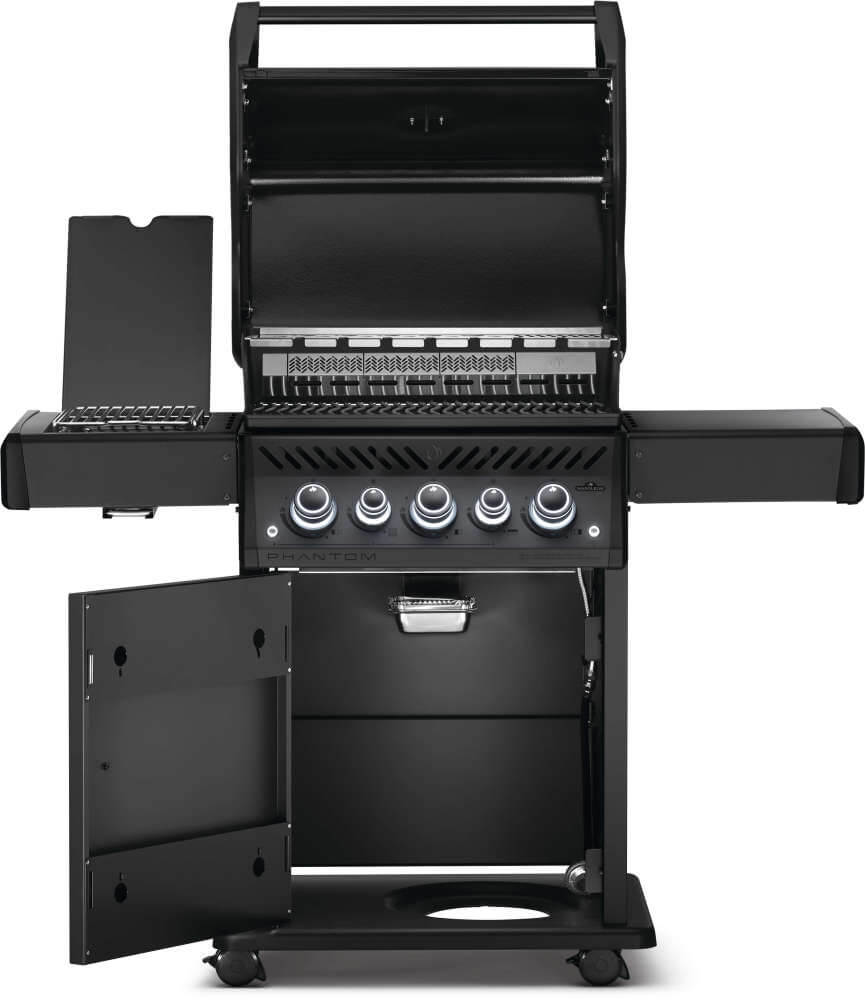

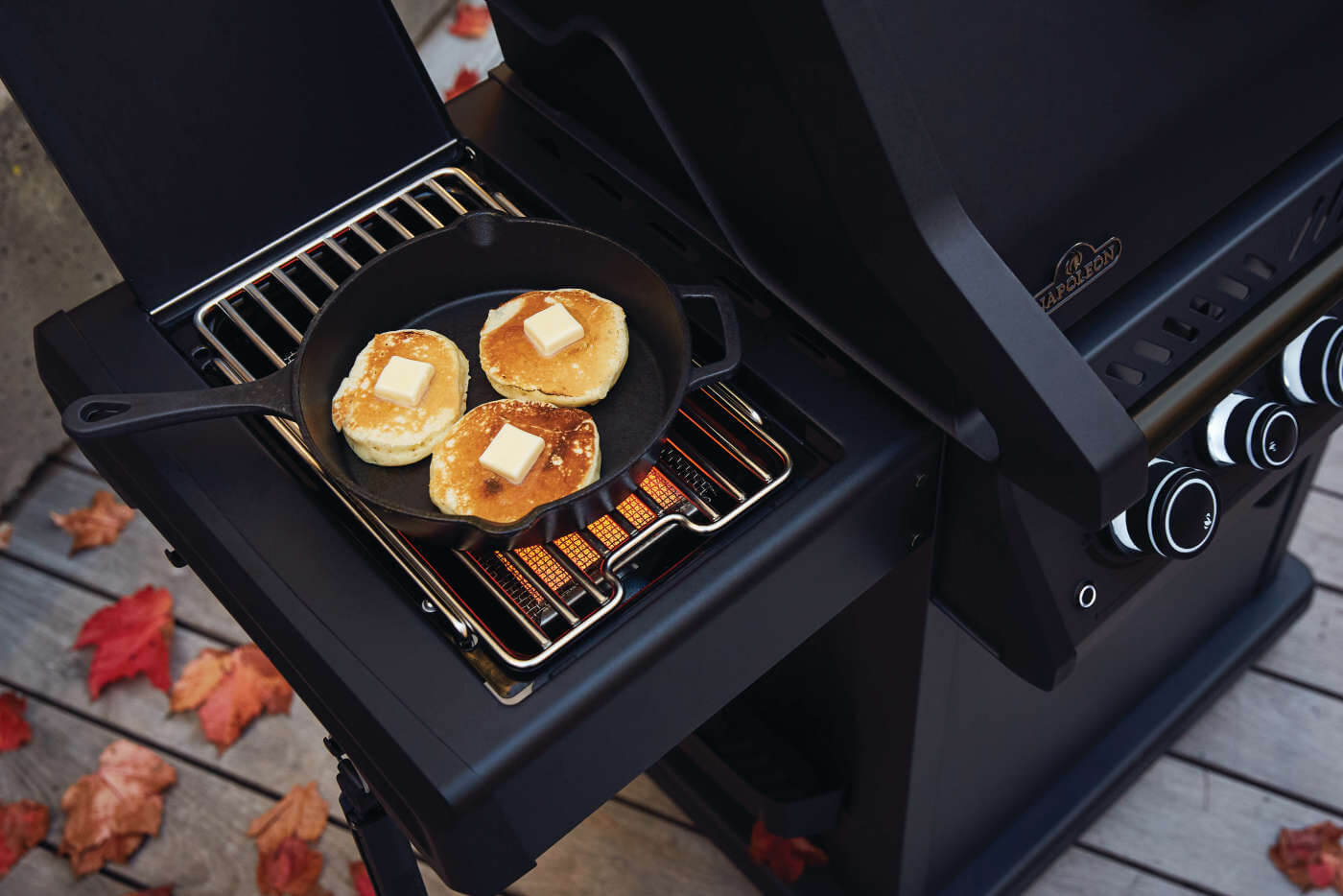

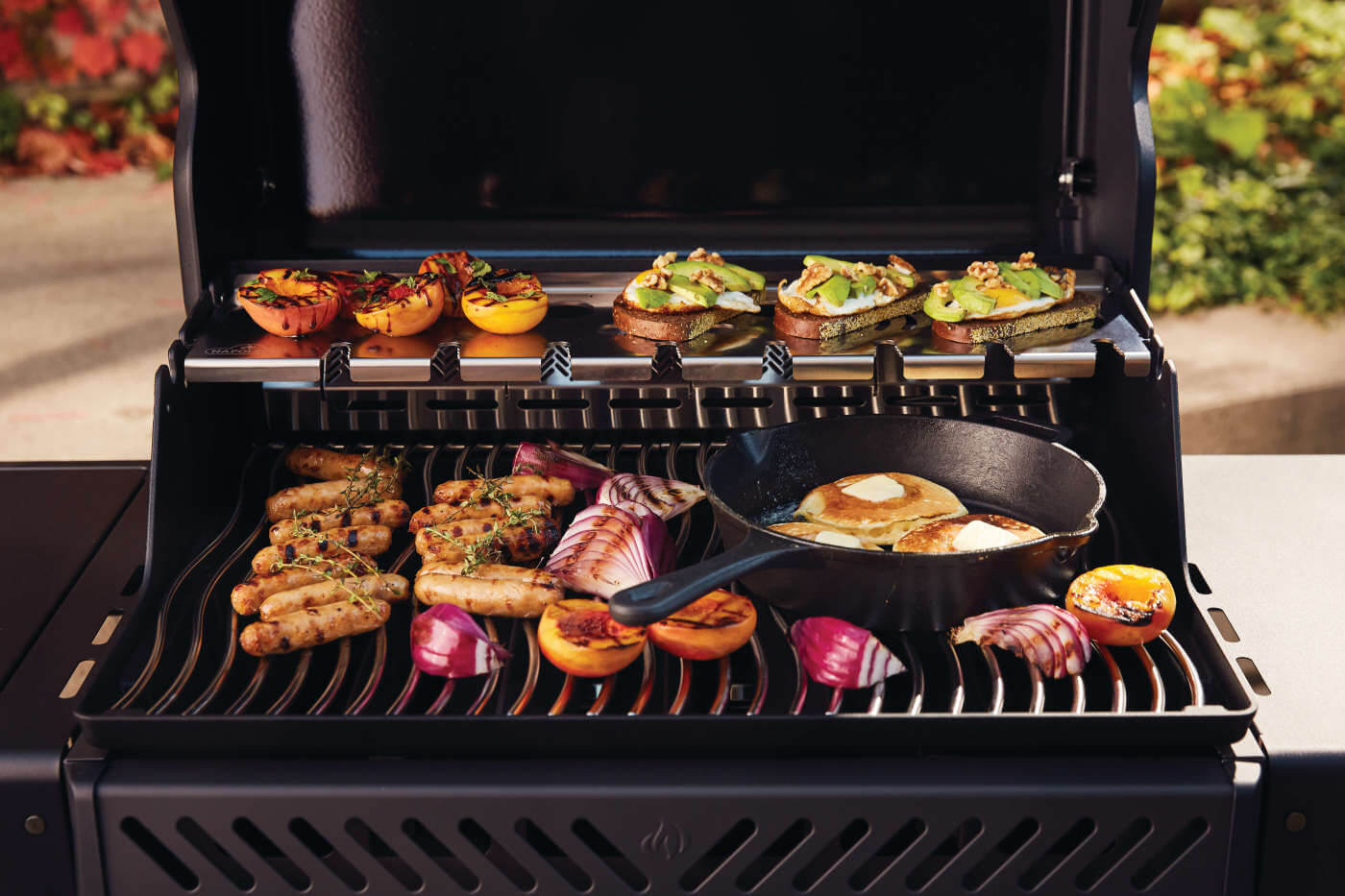

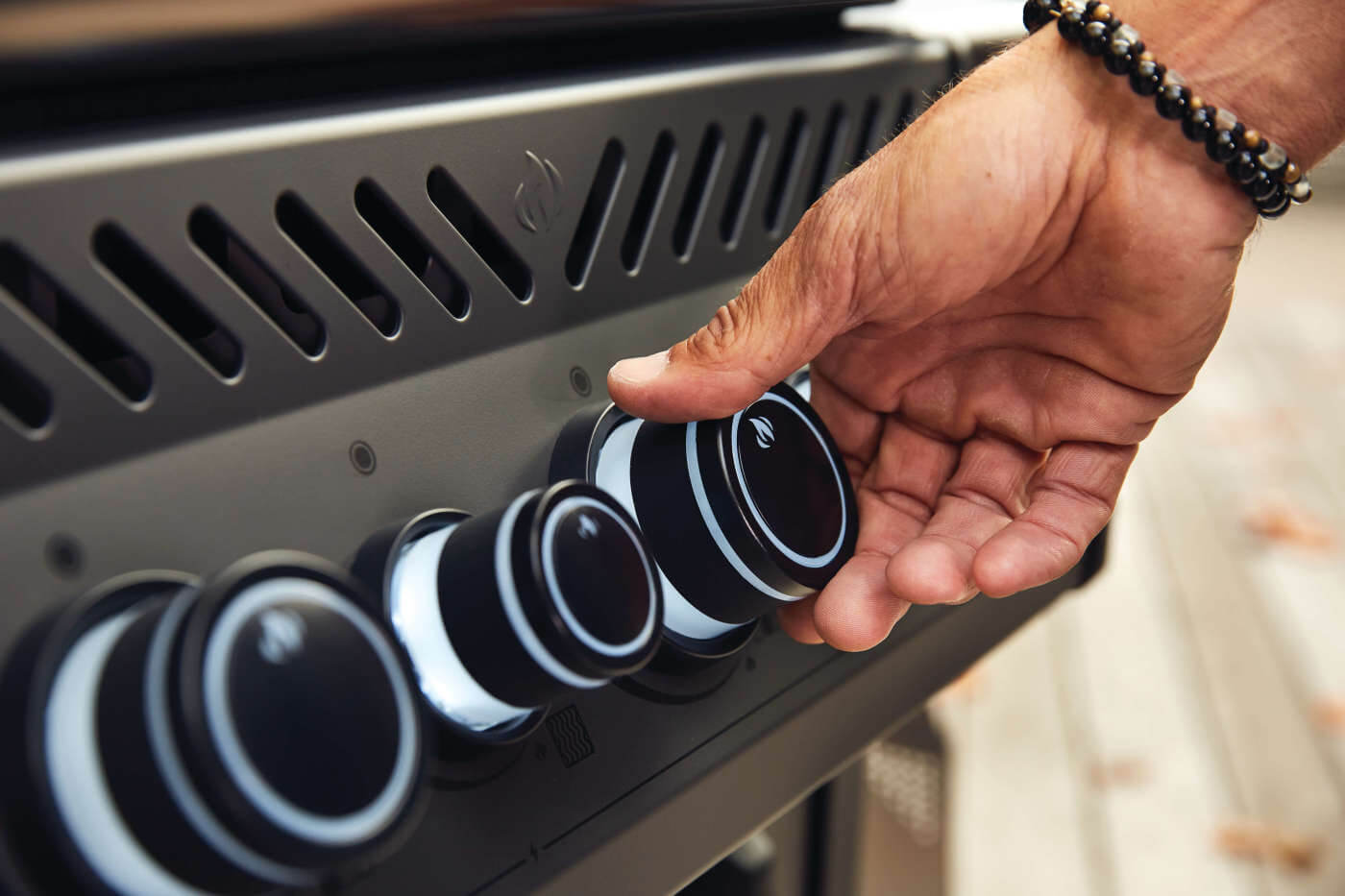

PHANTOM Rogue® SE 425 Gas Grill with Infrared Side and Rear Burner | RSE425RSIBPK-1-PHM | Gas Grills | Luxurious matte black finish from the top of the lid to the locking casters | Deep and dark, the matte black Phantom Rogue® SE 425 Propane Gas Grill with Infrared Side and Rear Burners is a barbecue like no other. From the top of the lid to the easy to move locking casters, this gas barbecue is completely silky matte black. The edgy Phantom Rogue® SE features maintenance-free, stainless steel cooking grids and an integrated multifunctional grilling rack - ideal for entertaining. Sear the perfect steak or create a delightful side dish over the generous infrared sear station side burner. Use the rear infrared rotisserie burner to slow roast food to perfection. The generous folding side shelves provide plenty of prep and serving space while ensuring that your space is maximized. This luxurious matte black barbecue won't leave you in the dark either, the ergonomic knobs are backlit to ensure that late-night entertaining is easy. The Phantom Rogue® SE 425 Gas Grill is more than just a look. It's a lifestyle.
Discontinued
RSE425RSIBPK-1-PHM
PHANTOM Rogue® SE 425 Gas Grill with Infrared Side and Rear Burner
| Part Number | Part Description | ||
|---|---|---|---|
|
|
71501 | Multifunctional Warming Rack for Rogue® 425 |
|
|
|
N010-1113LY | ASSY, WIRE HARNESS CTRL PANEL RSE425-1 |
|
|
|
N010-1234 | ASSY, MANIFOLD 425-1 RSIB LPG NA |
|
| N010-1697-BK1TX | N010-1697-BK1TX |
|
|
|
|
N051-0018-BK1HT | BEZEL, TEMP GAUGE STN STL BLACK |
|
|
|
N080-0366-BK1HT | BRACKET, LID CASTING CVR BK LFT LD3/4/4X |
|
|
|
N080-0367-BK1HT | BRACKET, LID CASTING CVR RT BK LD3/4/4X |
|
|
|
N080-0392-BK1SG | BRACKET, AIR DEFLECTOR BLACK R425 |
|
|
|
N080-0423 | BRACKET, CROSS LIGHT FOLDING R425 |
|
|
|
N080-0447-GY1SG | BRACKET, DRIP PAN GUIDE RSE425/525/625-1 |
|
|
|
N100-0058 | REAR BURNER / BRÛLEUR ARRIÈRE |
|
|
|
N100-0060 | BURNER, MAIN TUBE 18GA ROGUE/RXT/RSE-1 |
|
|
|
N120-0031-BK0TX | CAP, END CONT PANEL LT BLACK LD3/4/4X |
|
|
|
N120-0032-BK0TX | CAP, END CONT PANEL RT BLACK LD3/4/4X |
|
|
|
N135-0052RB-BK1HT | CASTING, BASE REAR BURNER BLACK 425 |
|
|
|
N135-0057-BK1HT | CASTING, LID LEFT BLACK RSE425-1 |
|
|
|
N135-0058-BK1HT | CASTING, LID RIGHT BLACK RSE425-1 |
|
|
|
N200-0118-BK1TX | COVER, BASE BACK, BLACK TXTR RSE425-1 |
|
|
|
N240-0040 | ELECTRODE, 90DEG ROGUE RB, C/W 29" LEAD |
|
|
|
N255-0058 | FITTING, 90 DEG ELBOW 1/4 MF TO 1/8 FPT |
|
|
|
N255-0068 | FITTING, ELBOW 1/4 F FLARE TO 1/8 M NPT |
|
|
|
N335-0113-BK2SG | LID, INSERT PORCELAIN BLK RXT/RSE425-1 |
|
|
|
N350-0087 | HOUSING, REAR BURNER ROGUE |
|
|
|
N357-0021LY | IGNITER, BLOCK 2 SPARK 4.5V |
|
|
|
N370-0980-BX | KIT, BOTTOM SHELF BLK TXTR 425-1 NA |
|
|
|
N380-0039-BK | KNOB, CONTROL LRG BLACK P500-3/RSE425-1 |
|
|
|
N380-0040-BK | KNOB, CONTROL SML BLACK P500-3/RSE425-1 |
|
|
|
N385-0371 | LABEL, HANGTAG REAR BRN TEST/REMOVE RACK |
|
|
|
N385-0505 | HANGTAG, HOSE CLIP EN/FR/ES |
|
|
|
N385-0513-BK | LOGO, NAPOLEON BLACK 3PIN |
|
|
|
N387-0013LY-BK | LIGHT, WHITE LED LRG BLK BEZEL RSE-1 |
|
|
|
N450-0025 | NUT, 1/4-20 TYPE K LOCKNUT STN STL |
|
|
|
N450-0032 | NGZ, NUT M4 TYPE K LOCKNUT STN STL |
|
|
|
N450-0044 | @ NUT,THREAD CUTTING 3/16 STUD SIZE |
|
|
|
N455-0099 | REAR BURNER ORIFICE 1.15MM / ORIFICE DE BRÛLEUR ARRIÈRE 1.15MM (LP) |
|
|
|
N475-0555-BK1TX | PANEL, CTRL BLACK TXTR RSE425RSIB-1 |
|
|
|
N485-0021 | NGZ PIN, HAIRPIN COTTER 2MM X 28MM (285) |
|
|
|
N485-0026 | PIN CLEVIS 6MM X 25MM 365/425/525 |
|
|
|
N510-0013 | RUBBER BUMPER FOR GSS48COV / PARE-CHOCS POUR COUVERCLE |
|
| N530-0003 | REGULATOR 14" HOSE 1 OUTLET |
|
|
|
|
N570-0076 | SCREW, #8X1/2 HI/LO TAP PHIL PAN HD |
|
|
|
N570-0078 | @ * SCREW, M4 X 8MM PAN HD PHIL ZINC |
|
|
|
N570-0104 | 10-24 X 3/8” SCREW / VIS, 10-24 X 3/8 PO |
|
|
|
N570-0118 | SCREW,1/4-20X3/8 HEX HD BLK ZINC TYPE23 |
|
|
|
N570-0122 | SCREW,1/4-20 X 3/8" THREAD ROLL STN STL |
|
|
|
N570-0131 | SCREW, 1/4-20 X 9/16" SELF-LOCKING |
|
|
|
N570-0145-BK | SCREW 1/4-20X1/2 IN THRD RL TRS T30 BK |
|
|
|
N585-0103-BK1SG | SHIELD, HEAT CONTROL PANEL BLACK LD3 |
|
|
|
N590-0261-BK0TX | TRAY, CONDIMENT BLACK 365/425/525/625 |
|
|
|
N660-0007LY | SWITCH, MOMENT 4.5V |
|
|
|
N685-0025-BK4ES | GAUGE, HEAT INDICTR BLK P500-3/RSE425-1 |
|
|
|
N720-0082 | CONNECTOR, FLEX STN STL 1/4" X 32" |
|
|
|
N735-0026 | WASHER, SPRING STL RB, PWDR COAT SMOOTH |
|
|
|
N735-0032 | WASHER, ALUMINIUM 0.250x0.875 IN |
|
|
|
N750-0016 | ELECTRONIC IGNITION LEAD / FIL D’ALLUMAGE ÉLECTRONIQUE |
|
| Z010-0051 | Z010-0051 |
|
|
| Z010-0061 | Z010-0061 |
|
|
|
|
N010-1031-PHM-SER | ASSY, LID SEMI-GLOSS BLACK RSE425-PHM |
|
|
|
N010-1113 | LED WIRE HARNESS / LED FIL HARNAIS |
|
|
|
N010-1466-SER | ASSY, BASE CASTING BLK RSE425RSIB-PHM |
|
|
|
N010-1467-SER | ASSY, SHELF RT MATTE BLACK RSE425-1 |
|
|
|
N010-1468-SER | ASSY, CONT PANEL RSIB RSE425-1-PHM LPG |
|
|
|
N010-1470-SER | ASSY, SHELF IR SB MATTE BLACK RSE425-1 |
|
|
|
N080-0364 | BRACKET SIDE SHELF “A” / SUPPORT DE LA TABLETTE LATÉRALE « A » |
|
|
|
N080-0365 | BRACKET SIDE SHELF “B” / SUPPORT DE LA TABLETTE LATÉRALE « B » |
|
|
|
N080-0378-BK1SG | BRACKET, DOOR PIVOT BLACK LD3/4/4X |
|
|
|
N080-0380-BK1SG | BRACKET, MAGNET BLACK R365MK-1 |
|
|
|
N120-0038-BK0TX | CAP, END SD SHLF BLACK LD4/4X |
|
|
|
N130-0010-BK | CASTER, 3 IN WITH SHAFT, BRAKE BLACK |
|
|
|
N160-0023 | SB HOSE ORIFICE RETAINER CLIP / CLIP D’ARRÊT D’ORIFICE TUYAU BRÛLEUR LATÉRAL |
|
|
|
N160-0033-BK1SG | CLIP, GREASE TRAY BLACK LD3/4/4X |
|
|
|
N160-0034-BK1SG | CLIP, RETAINER TANK TOP BLACK LD3/4/4X |
|
|
|
N160-0035-BK0TX | CLIP, RETAINER TANK PLASTIC LD3/4/4X |
|
|
|
N200-0118-BK1FL | COVER, BASE BACK, MATTE BLACK RSE425-1 |
|
|
|
N240-0026 | SIDE BURNER ELECTRODE / ÉLECTRODE DE BRÛLEUR LATÉRAL |
|
|
|
N255-0027 | FITTING, UNION 3/8” FLARE / L’RACCORD, 3/8 PO ÉCLATER |
|
|
|
N325-0094-BK0TX-SER | HANDLE, DOOR, BLACK LD3/R365MK-1 |
|
|
|
N335-0098-BK1TX | LID, IR SD BRN BLACK P500-3/RSE425-1 |
|
|
|
N350-0076LY | HOUSING, BATTERY RSE525-1 |
|
|
|
N370-0928-BK-SER | KIT, SHLF HRDWR W/ ROD RSE425-1-PHM |
|
|
|
N370-0979-BX | KIT, DOOR SINGLE BLACK TXTR RSE425-1 |
|
| N385-0513-BK-SER | LOGO, NAPOLEON BLACK 3PIN+CLIPS |
|
|
|
|
N387-0013-BK | LIGHT, WHITE LED LRG BLK BEZEL RSE425-1 |
|
|
|
N387-0014-BK | LIGHT, WHITE LED SML BLK BEZEL RSE425-1 |
|
|
|
N430-0002 | MAGNETIC CATCH / LOQUET MAGNÉTIQUE |
|
|
|
N455-0109 | SIDE BURNER ORIFICE #58 / ORIFICE DE BRÛLEUR LATÉRAL NO 58 |
|
|
|
N475-0363-BK1FL | PANEL, REAR CART MATTE BLACK RSE425-1 |
|
|
|
N475-0607-BK1TX | PANEL, LFT/RT CART BLACK TXTR RSE425-1 |
|
|
|
N510-0015 | SOCKET, CASTER 365/425/525/625 |
|
|
|
N555-0091 | ROD, PIVOT SD LID |
|
|
|
N570-0013 | @SCREW #8 X 5/8" ST.ST. PAN HD. PHIL. |
|
|
|
N590-0256-BK1FL | SHELF, BOTTOM CART MATTE BLACK 425-1 NA |
|
|
|
N590-0300-BK1TX | SHELF, SD RGHT PLAIN MT BLK RSE425-1-PHM |
|
|
|
N660-0007 | SWITCH, MOMENT 4.5V |
|
|
|
N710-0062 | TRAY, GREASE ALUM (HARD TOOLED) |
|
|
|
N710-0094 | PAN, DRIP STN STL 425 (SINGLE DOOR CAB) |
|
|
|
S81005 | Infrared Side Burner for LEX 485 & Prestige® 450/500/665 |
|
|
|
S81006 | Infrared Side Burner Screen for LEX 485 & Prestige® 450/500/665 |
|
|
|
S83012 | Stainless Steel Side Burner Grid for Prestige® 500/665, Rogue® SE, PRO & PRO-S 425/525/625 |
|
|
|
S83013 | Two Stainless Steel Cooking Grids for Rogue® 425 |
|
|
|
S85001 | 14" Regulator for Propane LEX, Rogue® & Prestige® Series |
|
|
|
S87001 | 1 Burner & 2 Sear Plates for Rogue® Series, Prestige® 500 and PRO 500 Model Gas Grills |
|
|
|
S87010 | Cross Light Bracket & One Screws for Rogue® 425 |
|
|
|
S87014 | Lid Pivot for All Rogue® Series |
|
|
|
S91010 | Temperature Gauge for Phantom P500 / RSE425 |
|
