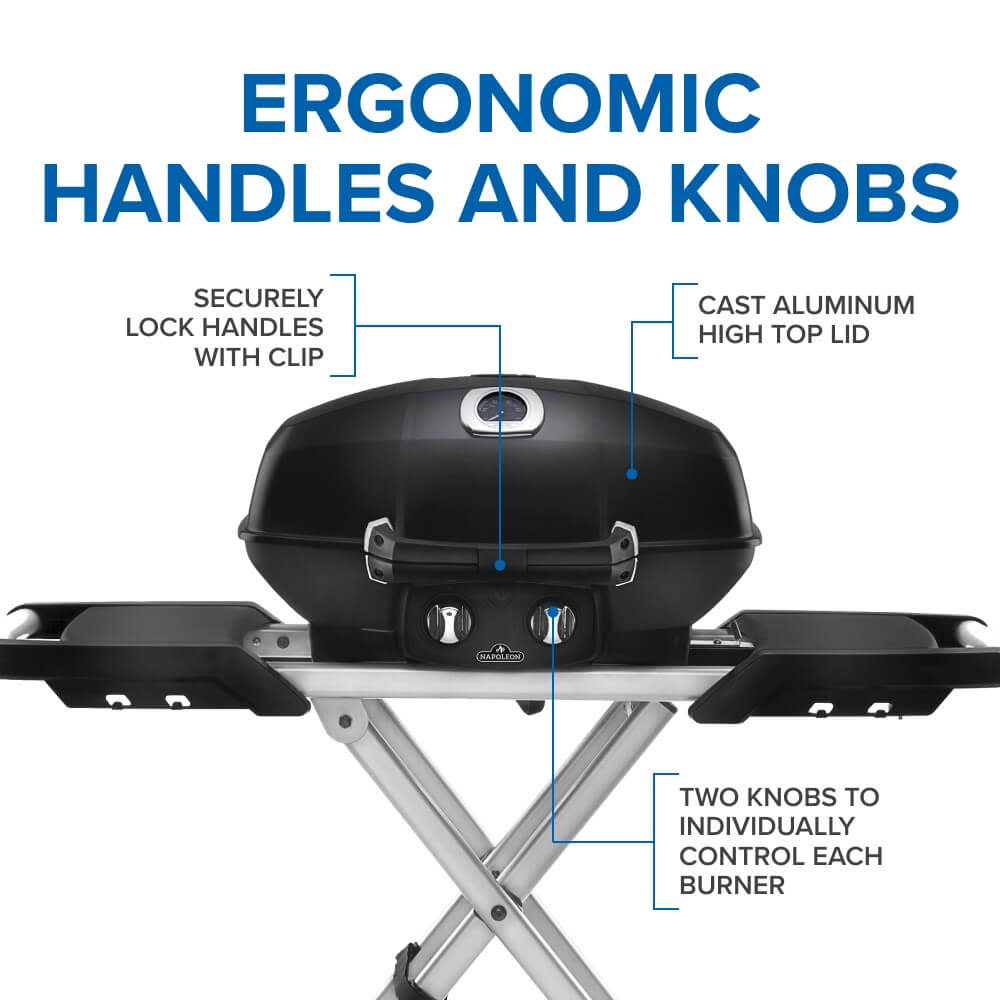

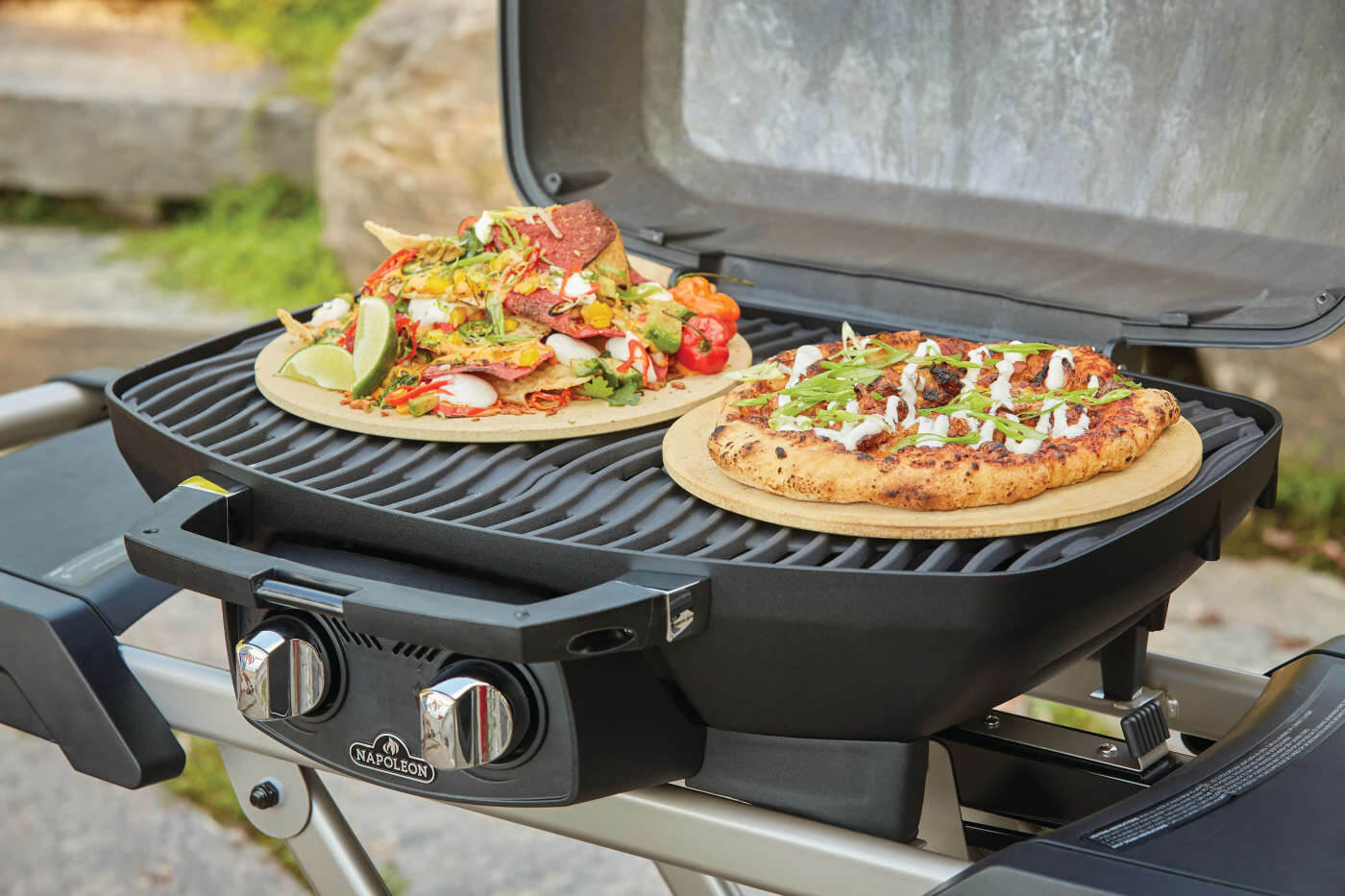

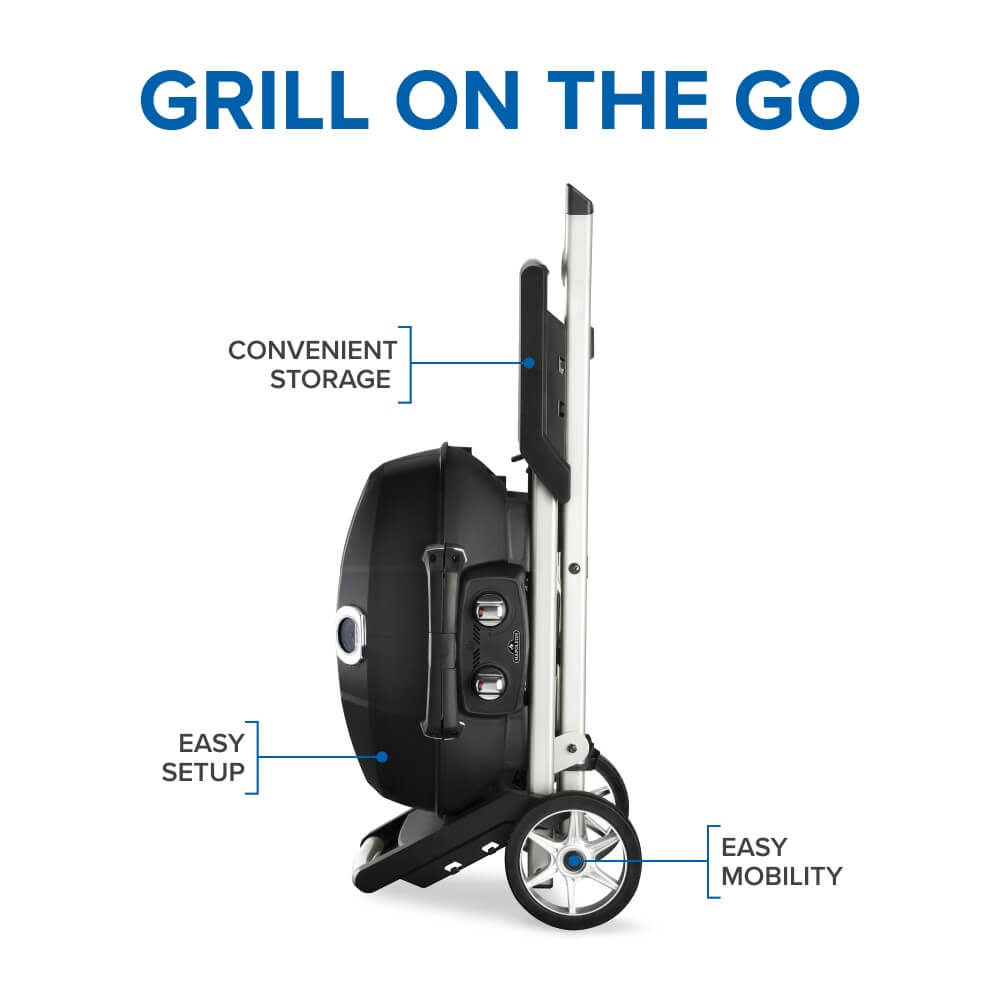

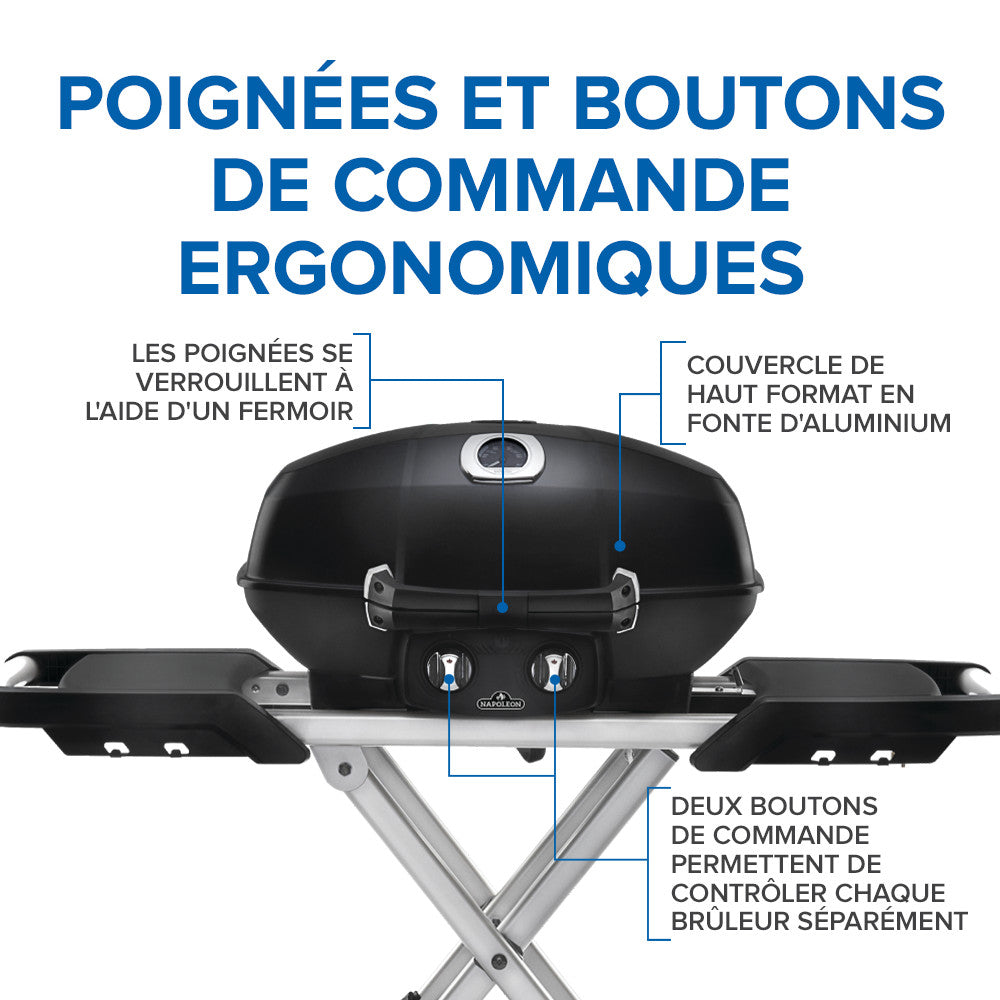

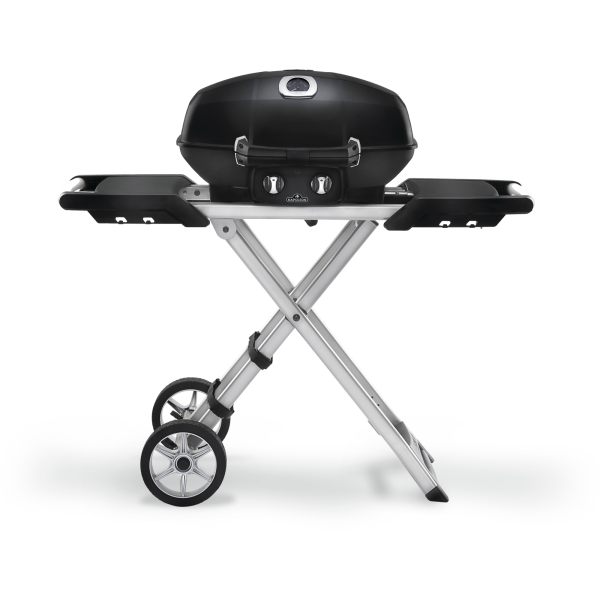

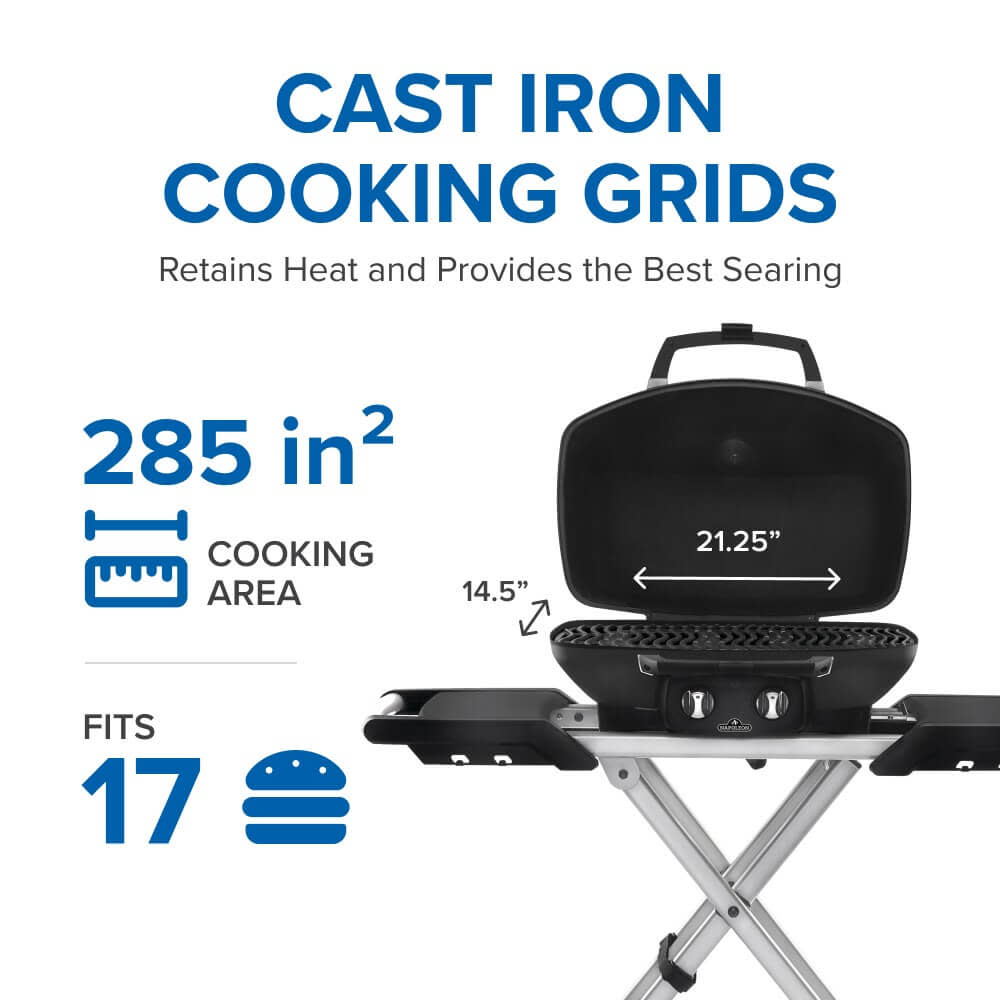

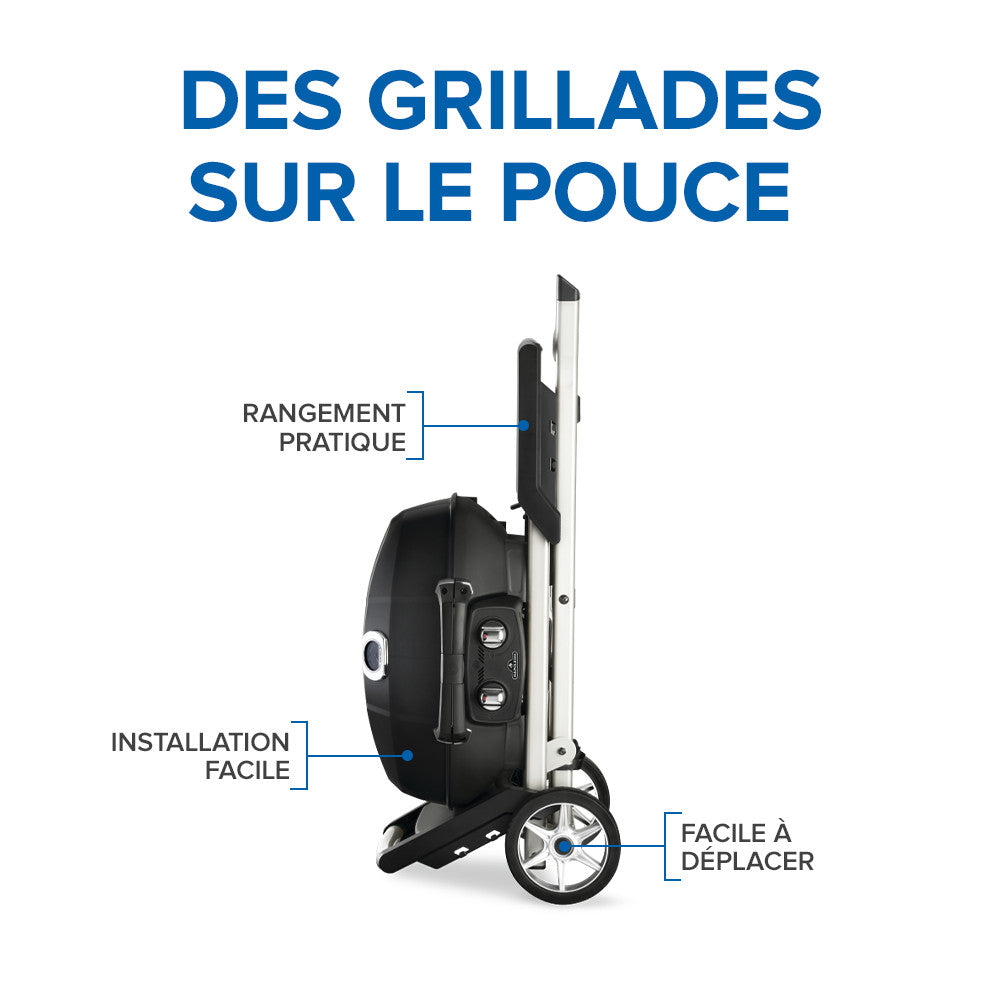

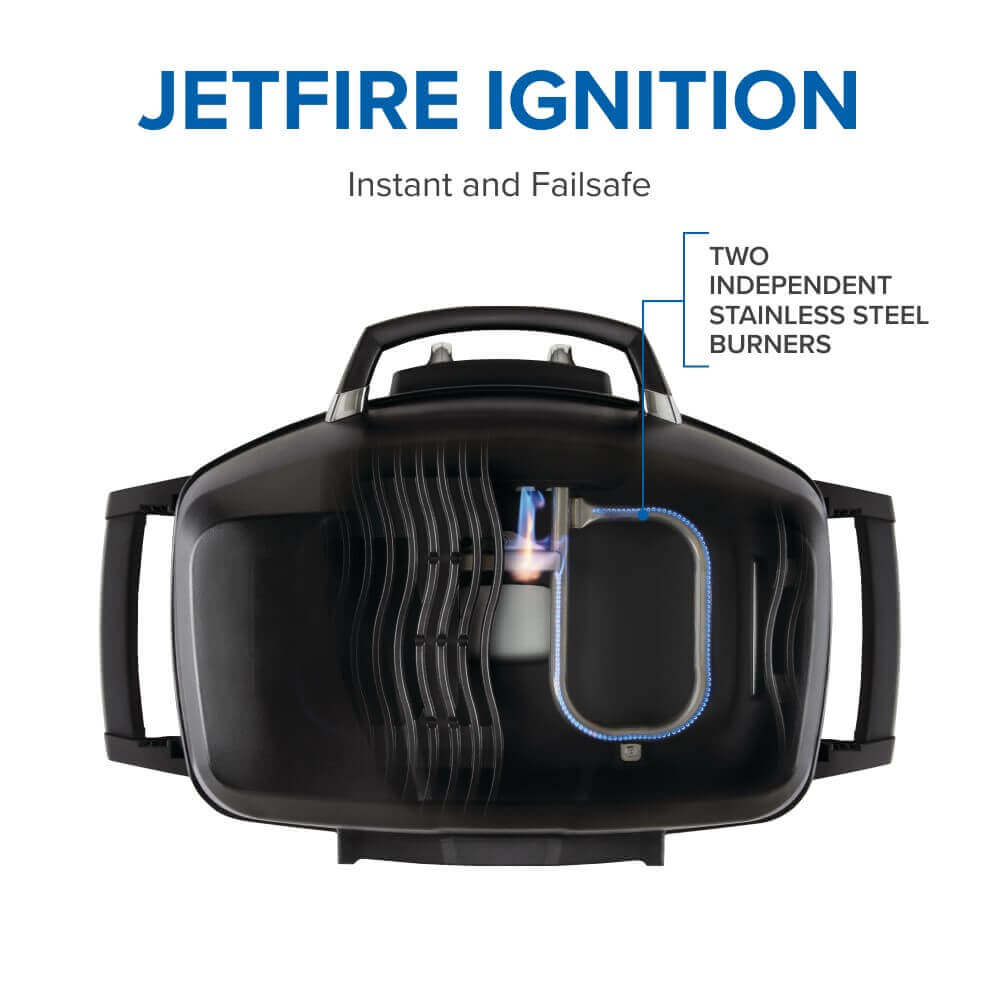

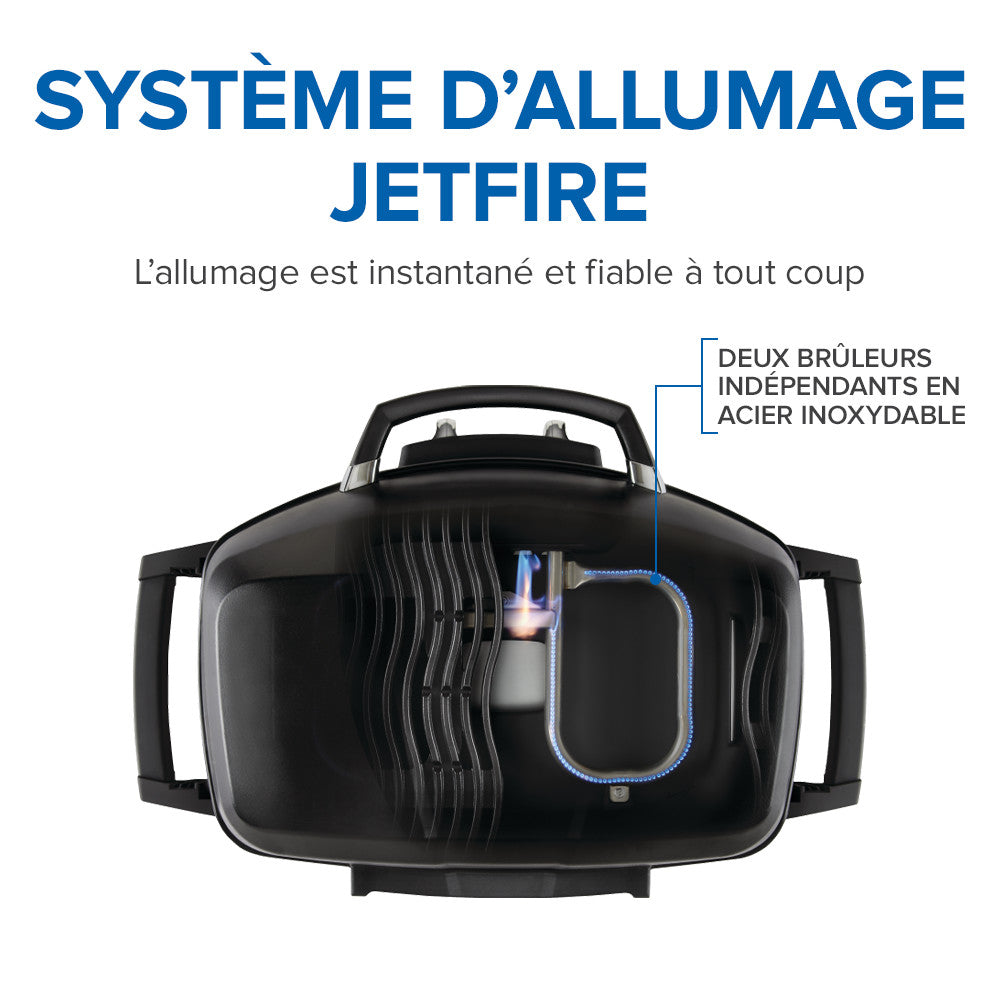

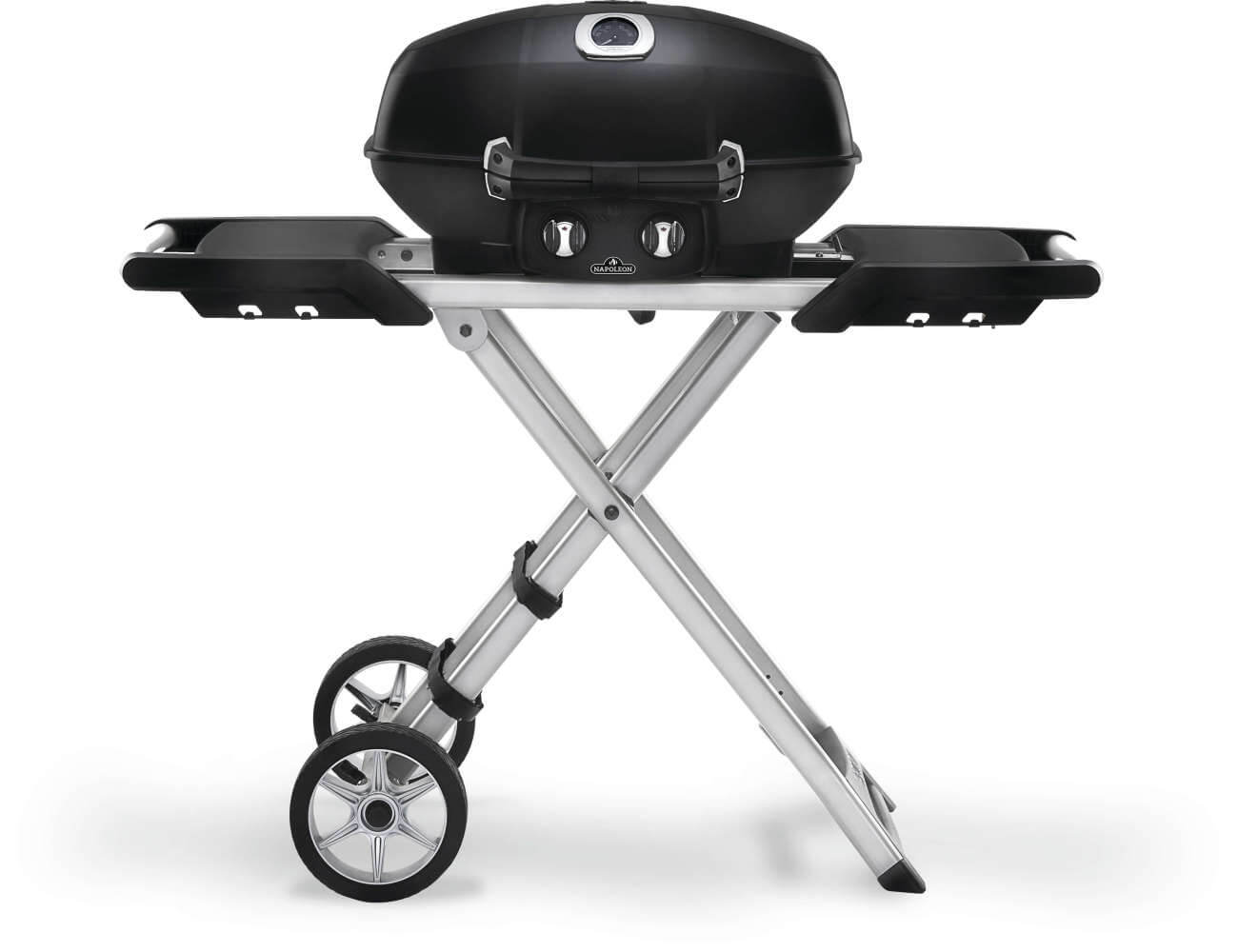

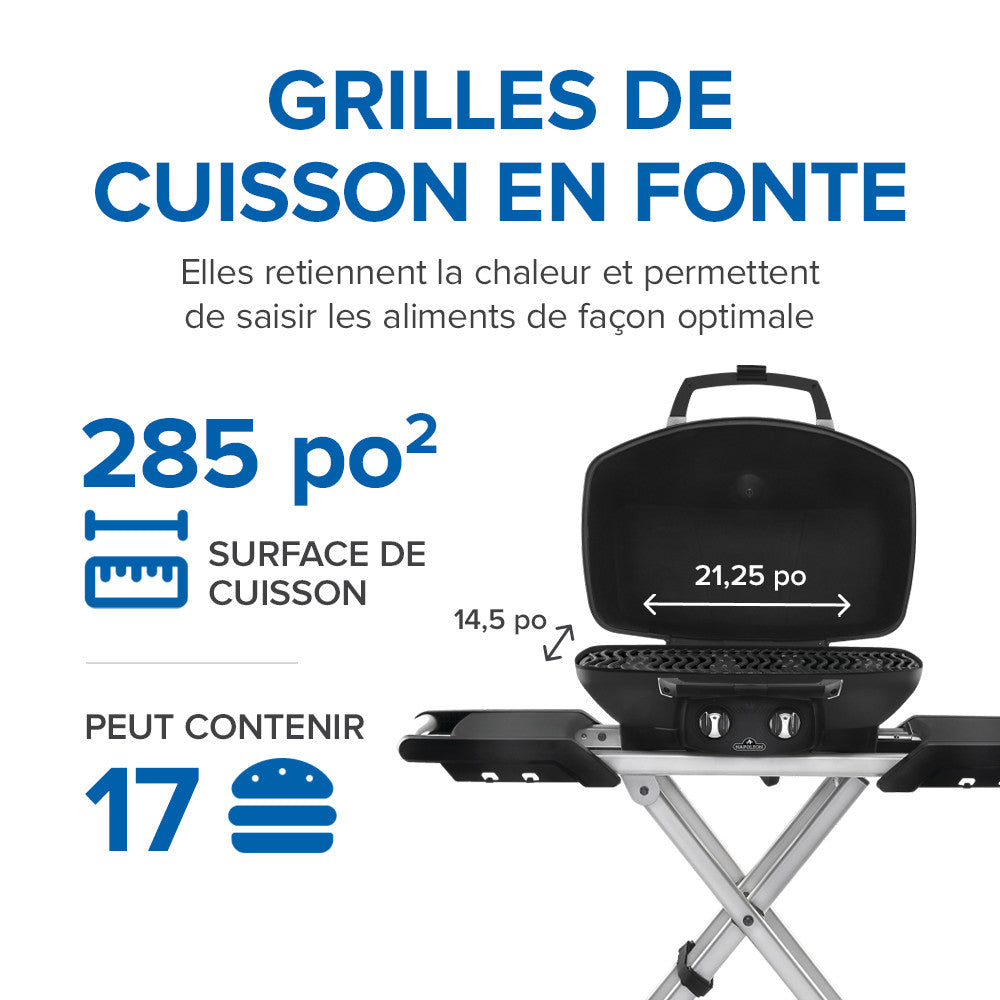

TravelQ™ PRO285X Portable Propane Gas Grill with Scissor Cart, Black | PRO285X-BK | Portable Grills | 12,000 BTU's | Napoleon's TravelQ™ PRO285 Portable Propane Gas Grill with scissor cart can grill up to 17 hamburgers at once on the 285 square inches of cooking area. The stylish all-black finish with chrome details will match any outdoor decor. The cast aluminum, high-topped lid design lets you take portable grilling to the gourmet level. Roast whole chickens or turkeys, pork and even prime rib; this little grill can do it. Using the dual stainless steel burners, you have precise control over the temperature, just like on Napoleon's full sized grills. High heat searing is a snap and you'll know it's a Napoleon with the iconic WAVE™ cooking grids for those distinctive sear marks. This grill has everything you need for perfect portable grilling anywhere, the nimble cart features all-terrain wheels, easy folding, setup, compact storage, and propane tank straps. This grill is perfect for any adventure. You can't beat this professional grill in a portable package.
PRO285X-BK
TravelQ™ PRO285X Portable Propane Gas Grill with Scissor Cart, Black
| Part Number | Part Description | ||
|---|---|---|---|
|
|
N010-0773 | NGZ, ASSY MANIFOLD LPG (285) |
|
|
|
N010-0804-SS1SG | NGZ ASSY, CART FRONT BEAM TQ285X |
|
|
|
N010-0805-SS1SG | NGZ ASSY, CART REAR BEAM TQ285X |
|
|
|
N010-0806-SS1SG | NGZ ASSY, CART WHEEL SIDE TQ285X |
|
|
|
N010-0821 | NGZ ASSY, BRACKET LEFT DRIP PAN TQ285X |
|
|
|
N010-0822 | NGZ ASSY, BRACKET RIGHT DRIP PAN TQ285X |
|
|
|
N080-0302 | NGZ, BRACKET CROSS LIGHT (285) |
|
|
|
N100-0046 | NGZ, BURNER TUBE LEFT LPG (285) |
|
|
|
N100-0047 | NGZ, BURNER TUBE RIGHT LPG (285) |
|
|
|
N120-0021 | NGZ, END CAP SD SHELF RIGHT TQ285X |
|
|
|
N120-0022 | NGZ, END CAP SD SHELF LEFT TQ285X |
|
|
|
N120-0023 | NGZ, CAP NYLON WHEEL FRAME TQ285X |
|
|
|
N135-0045-BK1HT | NGZ, CASTING BASE BLACK (285) |
|
|
|
N135-0048-BK1HG | NGZ, CASTING LID BLACK (PRO285) |
|
|
|
N160-0017 | NGZ CLIP,ELECTRODE WIRE/R BURN FD TUBE |
|
|
|
N160-0026 | NGZ, CLIP NYLON TQ285X |
|
|
|
N200-0107 | NGZ COVER, DUST REGULATOR TQ285X |
|
|
|
N200-0108-BK1HT | NGZ COVER, LEFT LEG TQ285X |
|
|
|
N200-0109-BK1HT | NGZ COVER, RIGHT LEG TQ285X |
|
|
|
N272-0001 | NGZ, FOOT SCISSOR CART TQ285X |
|
|
|
N305-0087-BK2FL | NGZ,GRID COOKING CAST LEFT (285) |
|
|
|
N305-0088-BK2FL | NGZ,GRID COOKING CAST RIGHT (285) |
|
|
|
N325-0082 | NGZ, HANDLE TOP/BOTTOM (TQ285/TQ285X) |
|
|
|
N325-0084 | NGZ, HANDLE FOOT SCISSOR CART TQ285X |
|
|
|
N325-0085-SS1SG | NGZ, HANDLE CART CHASSIS TQ285X |
|
|
|
N325-0086-SS1SG | NGZ, HANDLE CART SHELF TQ285X |
|
|
|
N345-0024 | HOSE, ADAPT HIGH PRESSURE 32"(PRO285X)NA |
|
|
|
N370-0798 | NGZ, KIT ASSY FASTNRS PRO285X NA |
|
|
|
N380-0020-RD | BURNER CONTROL KNOB / BOUNTON DE CONTRÔLE POUR BRÛLEUR |
|
|
|
N390-0003 | NGZ, LATCH HANDLE LID (285) |
|
|
|
N390-0004-BK1SG | NGZ, LATCH SLIDE LOCK BLACK (TQ285X) |
|
|
|
N390-0005-SS1SG | NGZ, LATCH SLIDE HANDLE (TQ285X) |
|
|
|
N475-0319 | NGZ, PANEL CONTROL (285) |
|
|
|
N485-0021 | NGZ PIN, HAIRPIN COTTER 2MM X 28MM (285) |
|
|
|
N485-0022 | NGZ, PIN CLEVIS 8MM X 50MM TQ285X |
|
|
|
N485-0029 | PIN, CLEVIS LID 6X20MM STN STL |
|
|
|
N500-0042B | NGZ HNDLE, LID VENT (NK22CK-L/NK22CK-C) |
|
|
|
N525-0047-BK1SG | NGZ RAIL, SLIDING TRACK BLACK TQ285X |
|
|
|
N530-0055 | NGZ REGULATOR (TQ285X/PRO285X) |
|
|
|
N555-0097 | ROD, LIGHTING MATCH, FIXED |
|
|
|
N570-0013 | @SCREW #8 X 5/8" ST.ST. PAN HD. PHIL. |
|
|
|
N570-0073 | @ SCREW, 1/4-20 X 3/8 S/S HEX WASHER HD |
|
|
|
N570-0076 | SCREW, #8X1/2 HI/LO TAP PHIL PAN HD |
|
|
|
N570-0078 | @ * SCREW, M4 X 8MM PAN HD PHIL ZINC |
|
|
|
N570-0086 | @SCREW, AB THREAD 14 X 1/2 HEX HD WASHER |
|
|
|
N570-0104 | 10-24 X 3/8” SCREW / VIS, 10-24 X 3/8 PO |
|
|
|
N570-0108 | NGZ,SCREW M8 X 35MM PAN HD BLK TQ285X |
|
|
|
N570-0109 | NGZ,SCREW M8 X 60MM PAN HD BLK TQ285X |
|
|
|
N570-0111 | NGZ, SCREW #14 X 1-1/4 ZINC HEX HD |
|
|
|
N585-0089-BK1HT | NGZ, SHIELD HEAT CNTRL PNL (285) BLK |
|
|
|
N590-0237 | NGZ SHELF, LEFT/RIGHT TQ285X |
|
|
|
N630-0006 | NGZ SPRING EXTENSION TQ285X/365/425/525 |
|
|
|
N640-0006 | STRAP, TIE SELF-LOCKING 5.6MM X 150MM |
|
|
|
N655-0158 | NGZ SUPPORT, BASE HANDLE LEFT (285) |
|
|
|
N655-0159 | NGZ SUPPORT, BASE HANDLE RIGHT (285) |
|
|
|
N655-0200 | NGZ SUPP, LID HANDLE LEFT (PRO285X) |
|
|
|
N655-0201 | NGZ SUPP, LID HANDLE RIGHT(PRO285X) |
|
|
|

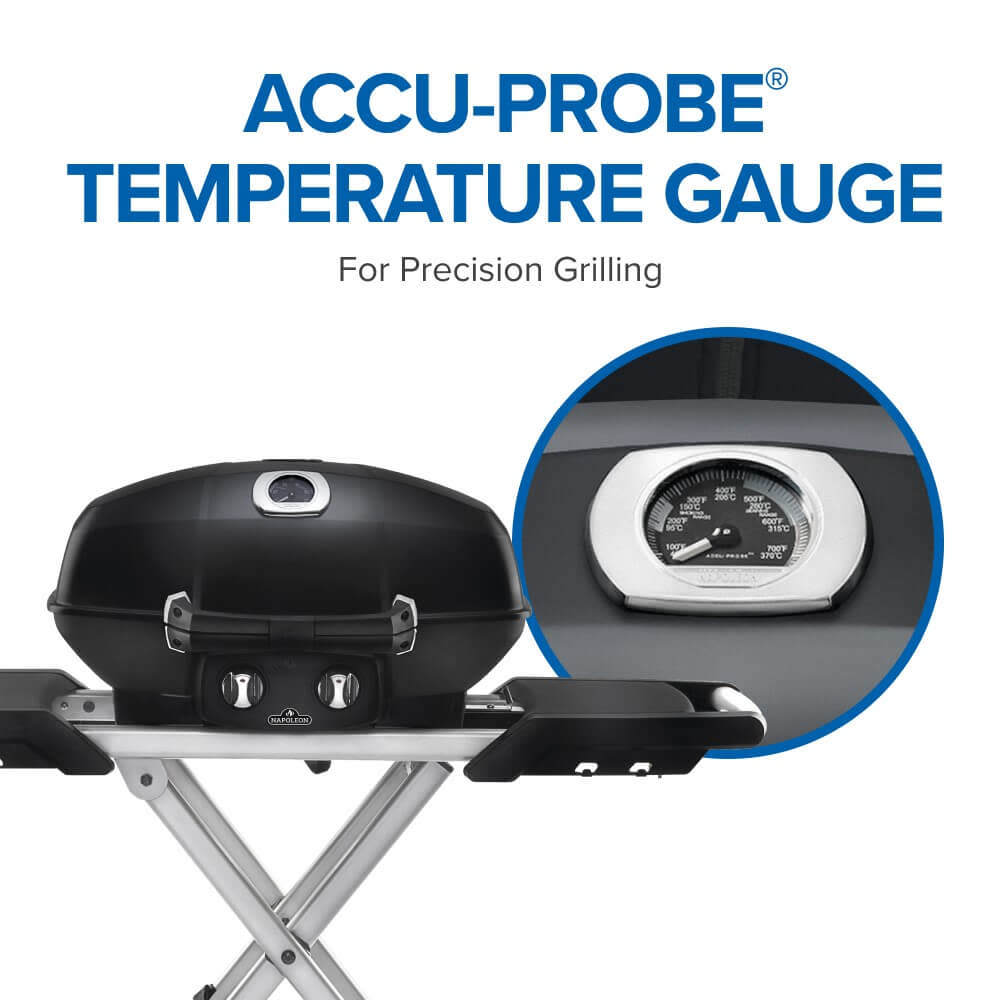

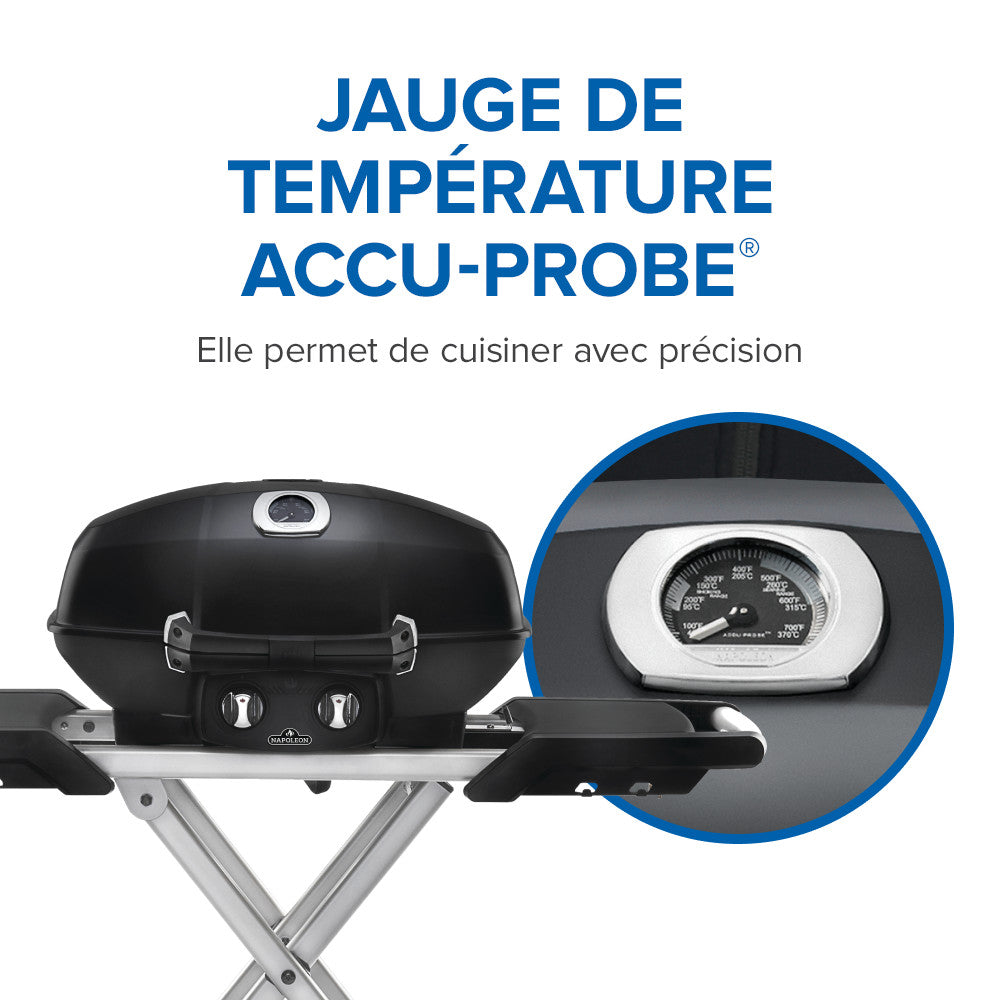

N685-0017 | NGZ, GAUGE TEMPERATURE (PRO285) |
|
|
|

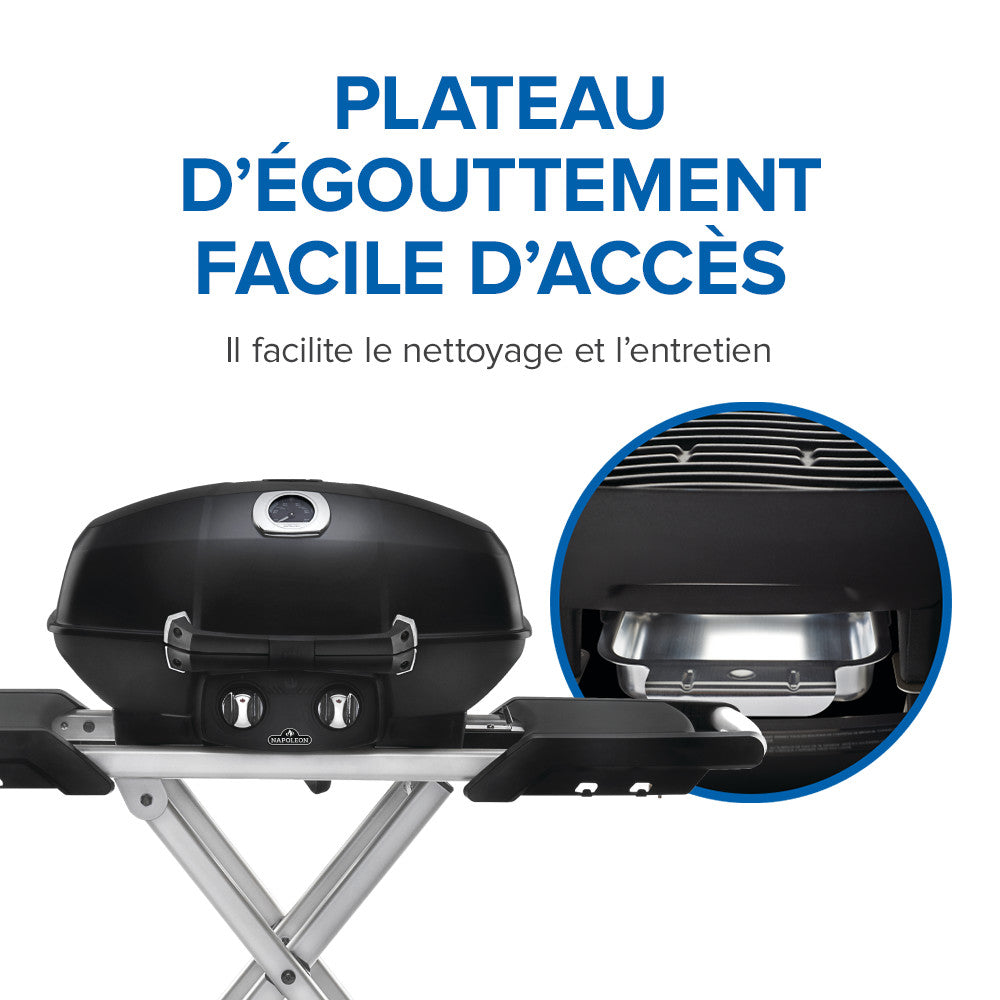

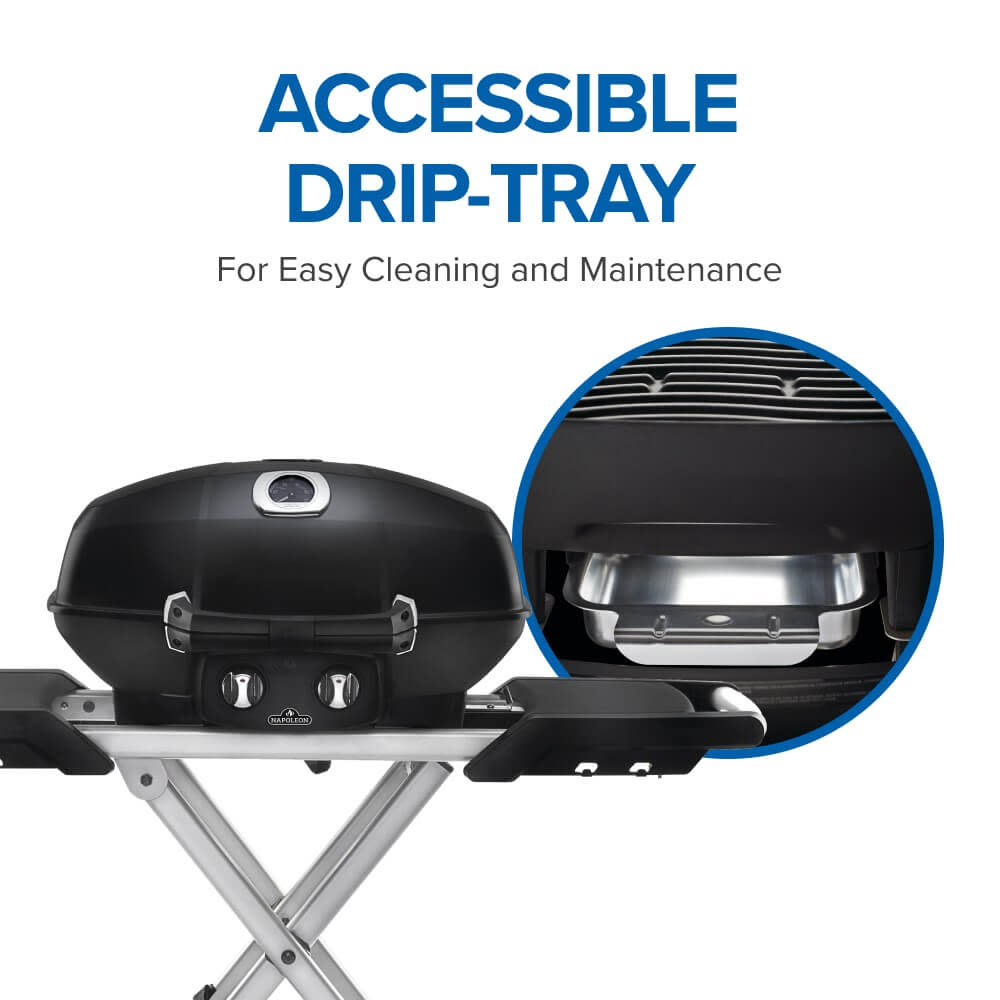

N710-0079 | NGZ, PAN DRIP (285/285X) |
|
|
|
N720-0060 | NGZ CONNECTOR,FLEX MANIFOLD 1/4X14"(285) |
|
|
|
N720-0067-SS1SG | NGZ TUBE, CART FOOT SIDE TQ285X |
|
|
|
N735-0018 | NGZ WASHER, LEG PIVOT TQ285X |
|
|
|
N735-0019 | NGZ WASHER,8MM NYLON TQ285X |
|
|
|
Z080-0032-BK1HT | BRACKET, REGULATOR TQ285X/PRO285X |
|
|
|
Z450-0015 | NGZ, NUT M8 BLK ZINC NYLOCK |
|
|
|
Z570-0023 | SCREW 10-24 X 6MM STAINLESS STEEL / VIS 10-24 X 6MM ACIER INOXYDABLE |
|
|
|
Z570-0029 | SCREW, 10-24 35 MM STN STL PAN HEAD |
|
|
|
Z570-0033 | SCREW, 10-24 12 MM STN STL PAN HEAD |
|
|
|
Z570-0036 | NGZ, SCREW,1/4-20 X 1 1/8" PAN HEAD BLK |
|
|
|
Z570-0037 | SCREW, 10-24 42 MM STN STL PAN HEAD |
|
|
|
Z735-0009 | NGZ, WASHER, LOCK - SPLIT STN STL M5 |
|
|
|
Z745-0001 | WHEEL, NAP 8"- 6 SPOKE 8.5 MM BORE |
|
|
|
N010-0820-SER | NGZ ASSY, SHELF SIDE TQ285X |
|
|
|
N010-0942-BK | NGZ, ASSEMBLY CAST LID BLACK (PRO285X) |
|
|
|
N010-0943 | NGZ, HANDLE TOP SPLIT (PRO285X) |
|
|
|
N015-0009 | NGZ AXLE, WHEEL TQ285X |
|
|
|
N080-0304 | NGZ, BRACKET DRIP PAN SUPPORT (285) |
|
|
|
N105-0016 | NGZ, BUSHING WHEEL |
|
|
|
N160-0025 | NGZ CLIP, RETAINER MANIFOLD FLEX (285) |
|
|
|
N160-0037 | CLIP, RETAINER TANK PLASTIC PRO285XCE |
|
|
|
N325-0082B-SER | NGZ, HANDLE BOTTOM SPLIT (TQ285/TQ285X) |
|
|
|
N325-0084-SER | NGZ, HANDLE FOOT SCISSOR CART TQ285X |
|
|
|
N450-0043 | NGZ, NUT AXLE PLASTIC CAP 8MM |
|
|
|
N475-0319-SER | NGZ, PANEL CONTROL 285 NA / 30MBAR |
|
|
|
N485-0023 | NGZ, PIN CLEVIS 6MM X 23MM (PRO285) |
|
|
|
N525-0047-BK1SG-SER | NGZ RAIL, SLIDING TRACK BLACK TQ285X |
|
|
|
N530-0055-SER | NGZ REGULATOR (TQ285X/PRO285X) SER |
|
|
|
N570-0008 | #8 X 1/2" SCREW - VIS #8 X 1/2" |
|
|
|
N570-0068 | @ SCREW,14X 1/2 STN STL HEX WSHR HD AB |
|
|
|
N570-0110 | NGZ,SCREW SHOULDER BLACK 1/4-20 TQ285X |
|
