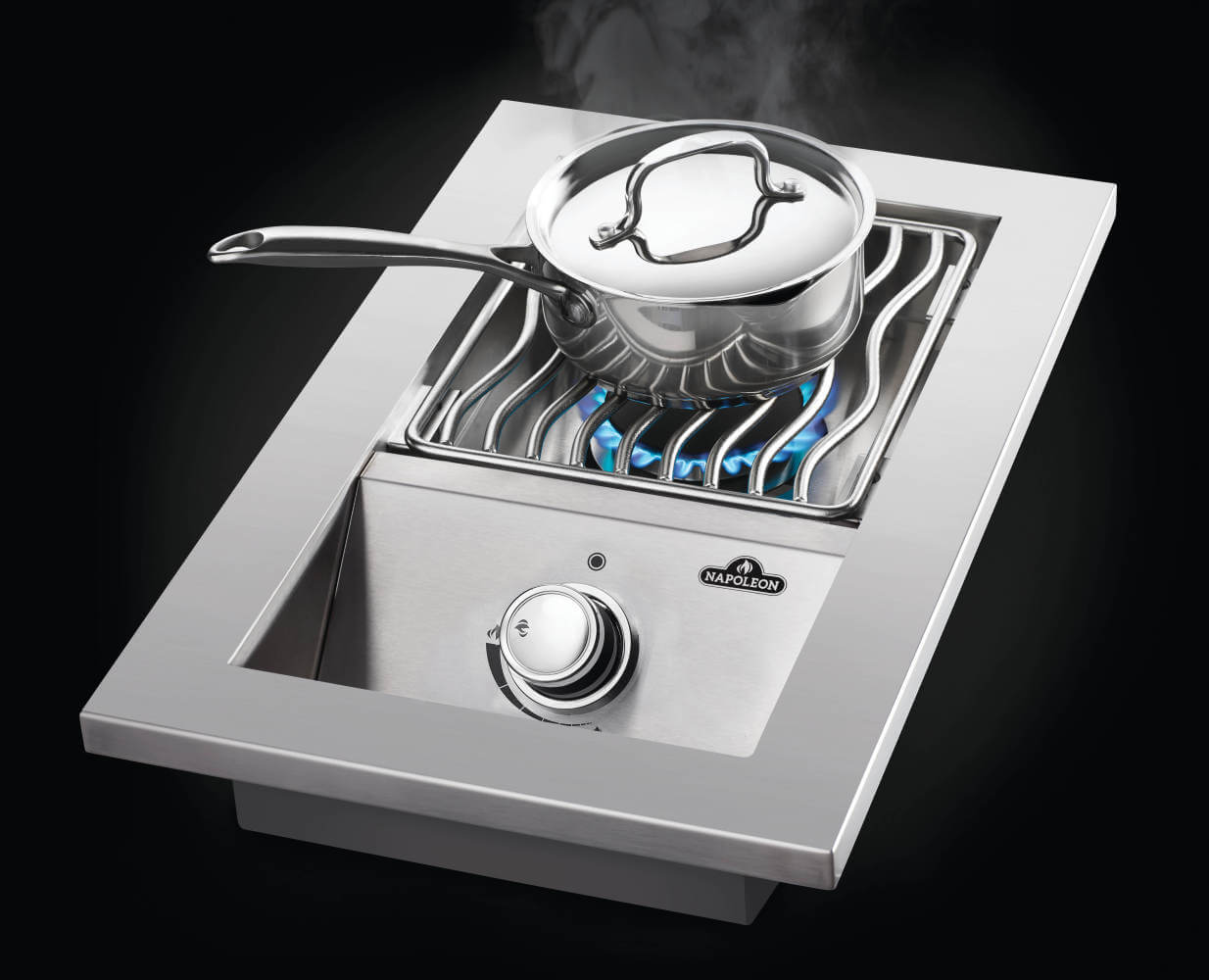

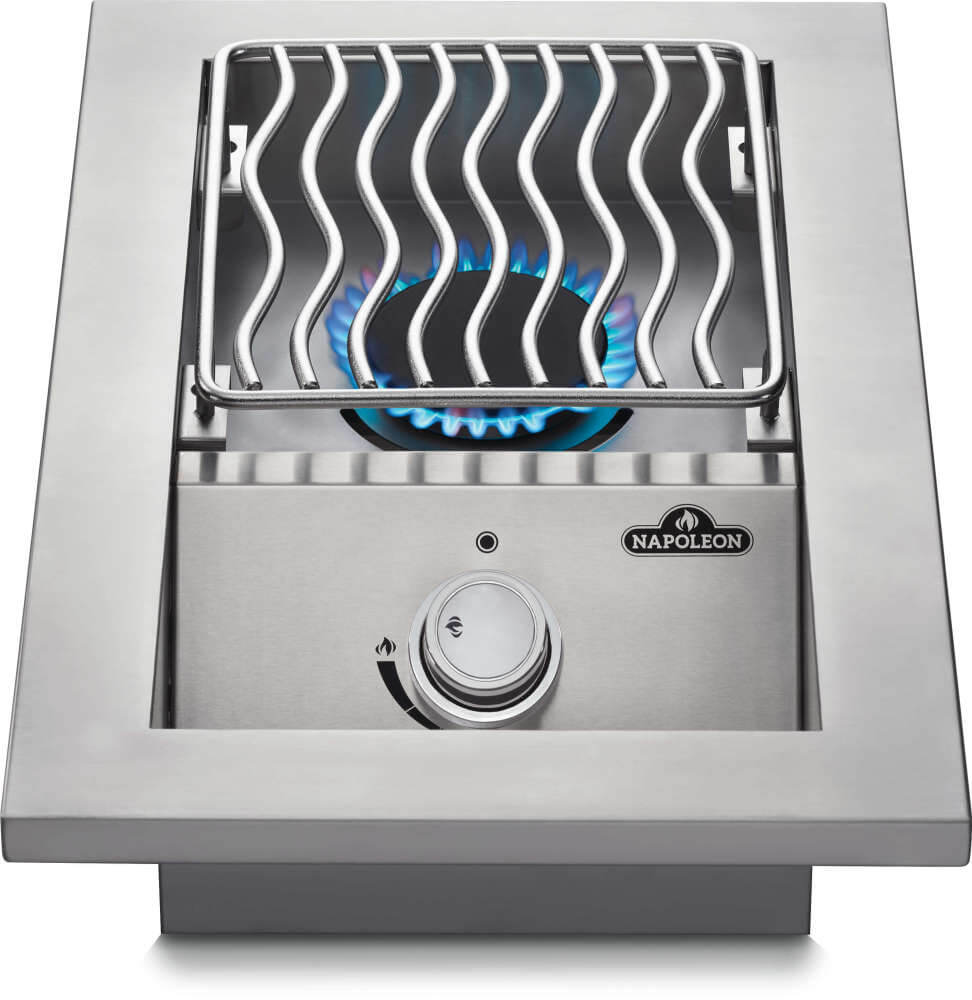

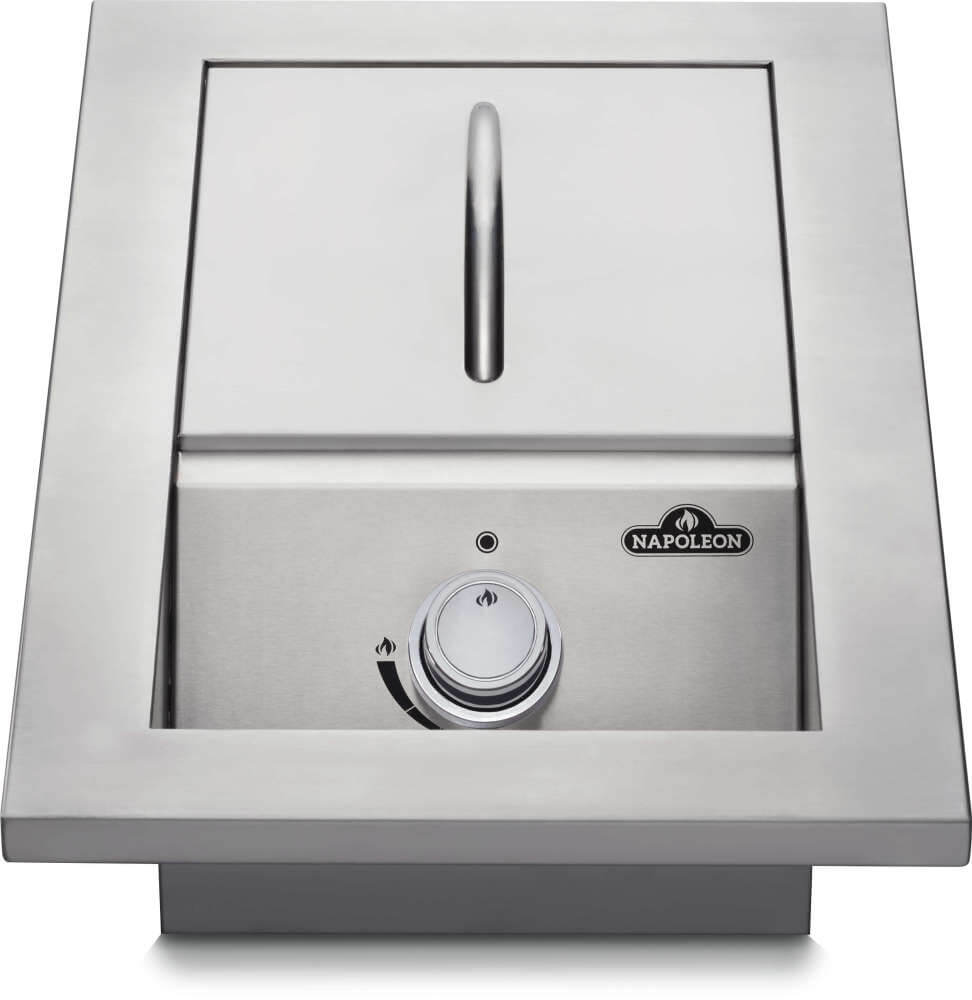

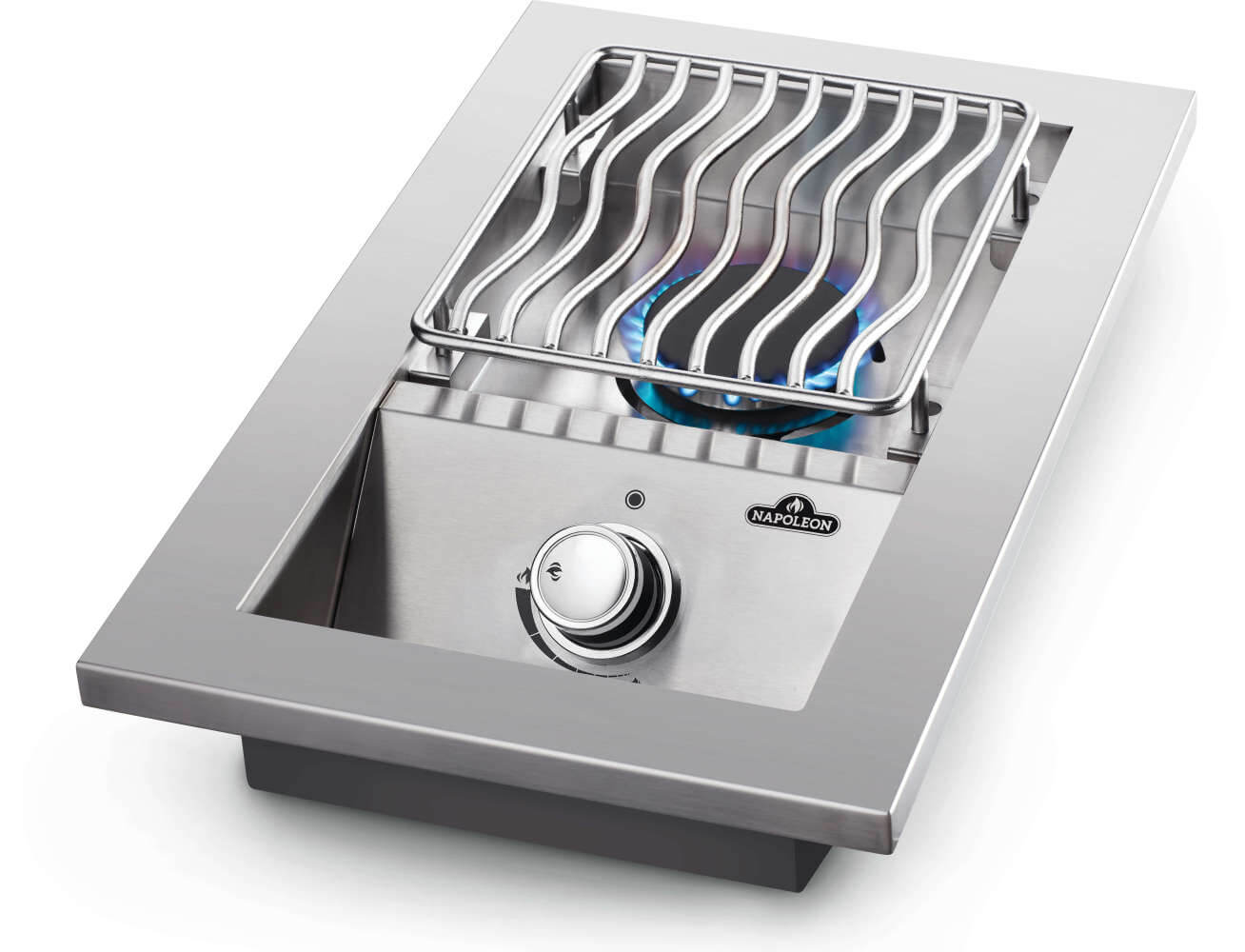

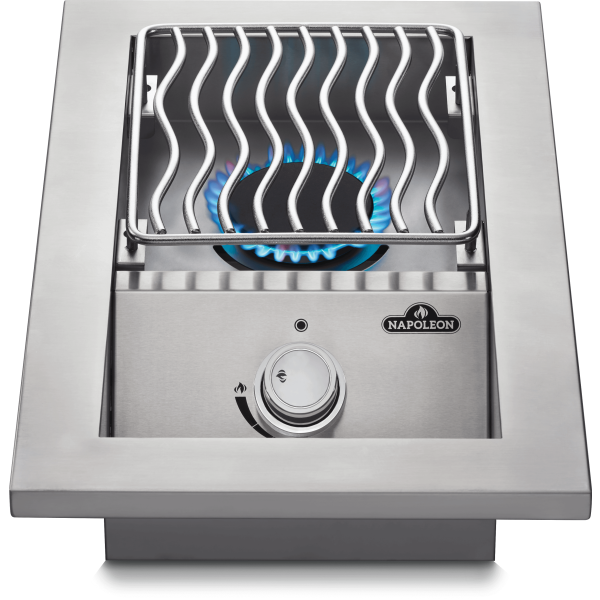

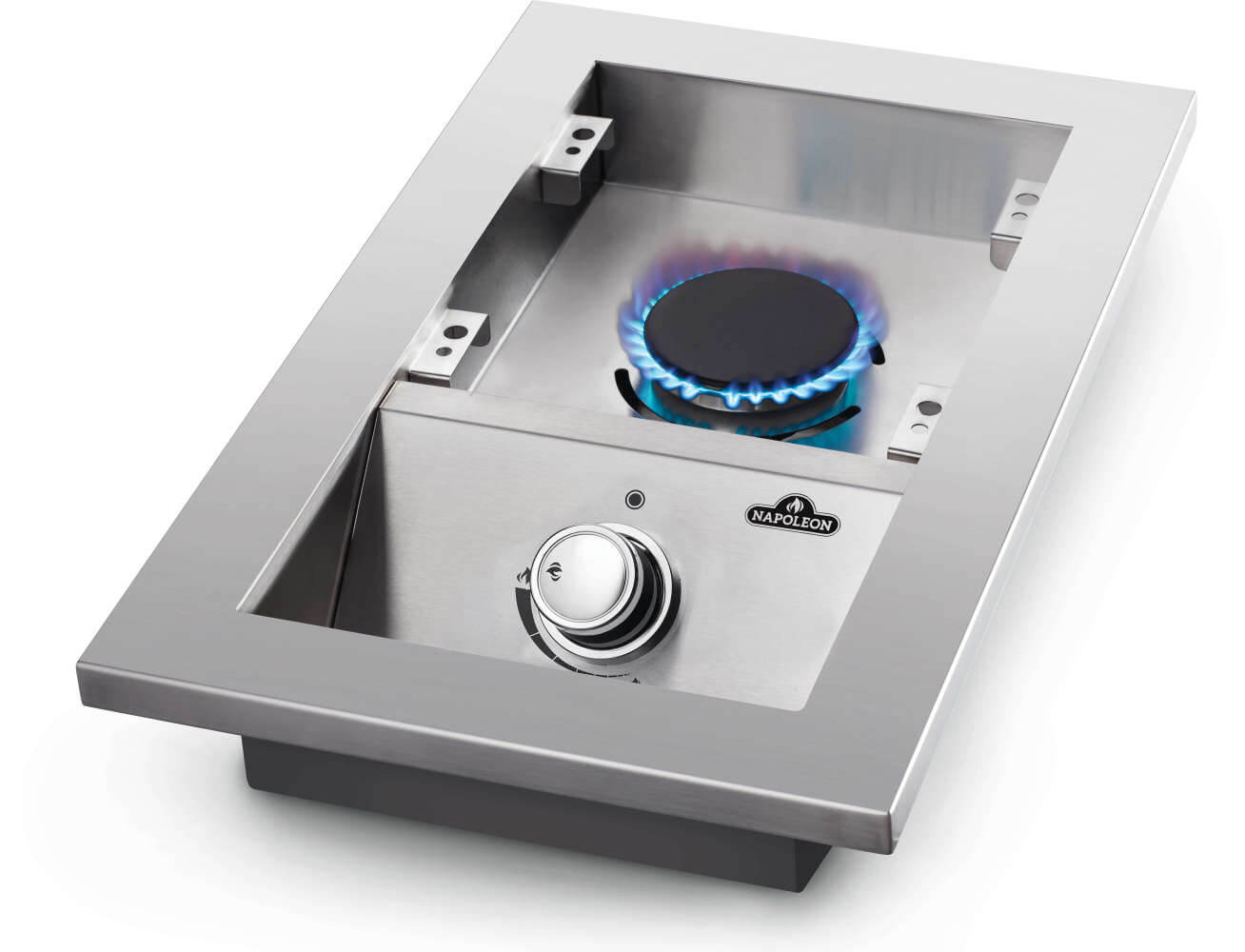

Built-in 500 Series Single Range Top Burner, Stainless Steel Cover | BI10RTNSS | Built-in Components | 10,000 BTU's | Create sides and sauces while the main grill is in use with this 10-inch, drop-in, Inline Range Burner, in Natural Gas. Instantly ignite these burners single-handed with the JETFIRE™ Ignition System. The large, ergonomic control knobs are easy to use and control. Made from premium stainless steel, this drop-in side burner matches your custom outdoor kitchen. This burner provides stylish longevity and was built for ease of install. This excellent addition to your outdoor kitchen is easily protected with the included stainless steel protective cover.
BI10RTNSS
Built-in 500 Series Single Range Top Burner, Stainless Steel Cover
| Numéro de pièce | Description de la pièce | ||
|---|---|---|---|
|
|
N010-1356 | MANIFOLD (NG) / SOUPAPE (NG) |
|
|
|
N010-1454 | ASSEMBLY, BASE WELDED BI10RT |
|
|
|
N051-0015 | BEZEL, KNOB SML PRO500-1/P500-3 |
|
|
|
N080-0454 | BRACKET, JETFIRE MOUNT BIB10RT |
|
|
|
N100-0062 | BURNER, RANGE BI/BIB10/12/18RT |
|
|
|
N155-0001 | CLAMP, MANIFOLD A, BIB10, BIG32/38/44 |
|
|
|
N155-0002 | CLAMP, MANIFOLD B, BIB10, BIG32/38/44 |
|
|
|
N255-0069 | FITTING 7/16-20 TO M13X1 / RACCORD 7/16-20 TO M13X1 |
|
|
|
N305-0118 | GRID, STN STL BIB10 |
|
|
|
N325-0049 | REPLACEMENT HANDLE (X2) (FOR GSS36COV) |
|
|
|
N335-0135 | LID, STN STL BIB10 |
|
|
|
N380-0047 | KNOB, CNTRL SML W/ BRKT BI 500 SERIES |
|
|
|
N385-0404 | @LABEL, BI COMBUST WARNINGS EN/ES/FR |
|
|
|
N385-0405 | LABEL, BI WARNINGS EN/ES/FR |
|
|
|
N455-0106 | ORIFICE (NG) / ORIFICE (NG) |
|
|
|
N540-0001 | NGZ RING, TAG LIGHT INSTR |
|
|
|
N555-0097 | ROD, LIGHTING MATCH, FIXED |
|
|
|
N570-0008 | #8 X 1/2" SCREW - VIS #8 X 1/2" |
|
|
|
N570-0013 | @SCREW #8 X 5/8" ST.ST. PAN HD. PHIL. |
|
|
|
N570-0038 | SCREW 1/4-20 X 1/2 STAINLESS / VIS 1/4-20 X 1/2 ACIER INOXYDABLE |
|
|
|
N570-0093 | NGZ SCREW, M4X8MM PAN HD PHIL STN STL |
|
|
|
N570-0137 | SCREW, 1/4-20 X 3/8 STN STL PAN HEAD |
|
|
|
N640-0006 | STRAP, TIE SELF-LOCKING 5.6MM X 150MM |
|
|
|
N710-0130 | DRIP PAN / TIROIR D'ÉGOUTTEMENT |
|
|
|
N720-0085 | FLEXIBLE CONNECTOR 1/4 X 4 STAINLESS / CONNECTEUR FLEXIBLE 1/4 X 4 ACIER INOX |
|
|
|
N720-0094 | FLEX TUBE STAINLESS STEEL 60IN X 1/2IN |
|
|
|
W615-0043 | #10 X 1/4 BLACK SPACER / ENTRETOISE NOIR #10 X 1/4 |
|
|
|
Z020-0001 | NGZ BAG,MANUAL |
|
|
|
N010-1322 | BASE / CUVE |
|
|
|
N010-1354 | MANIFOLD (NG) / SOUPAPE (NG) |
|
|
|
N080-0454-SER | BRACKET, JETFIRE MOUNT/SCREWS BIB10RT |
|
|
|
N720-0070 | CONNECTOR, FLEX STN STL 1/2" X 30" |
|
|
|
S81008 | BURNER, BIB10RT NAT |
|
|
|
S83031 | Stainless Steel Cooking Grid for Built-in 700 Series Single Range Top Burner |
|
Manuels / Guides de produits
N415-0601-Built-In-Series-Manual-RevH.pdf
Télécharger
N415-0711.pdf
Télécharger

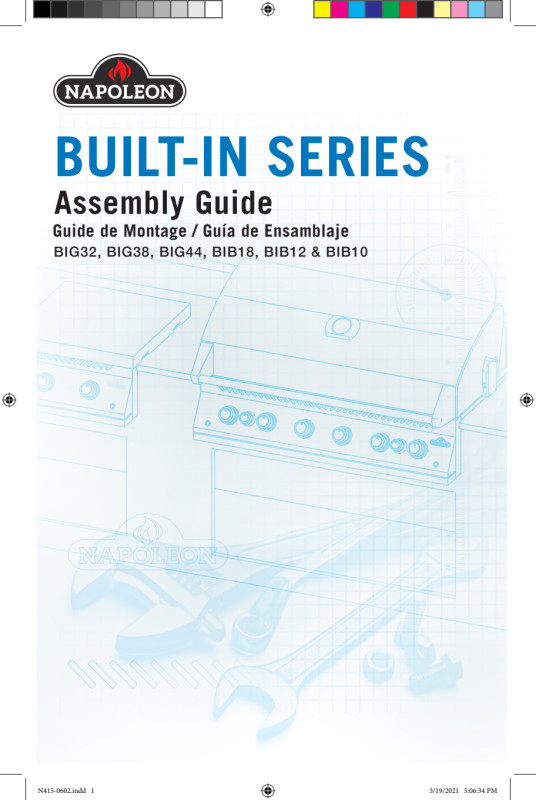

Built-In-700-Series-Assembly-Guide-May2022.pdf
Télécharger
