Legend LD3 Propane Gas Grill, Stainless Steel | LD3PSS | Gas Grills | 36,000 BTU's | The Grill. The Myth. The Napoleon Legend LD3. This stainless steel, 3 burner propane gas grill is built to last. Inside, porcelainized cast iron cooking grids provide the ideal sear with their Iconic WAVE™ pattern that lets you know it's a Napoleon. Stainless steel sear plates are staggered to prevent flare-ups, creating flavor, not flames. Enjoy easy lighting using the JETFIRE™ ignition system and ergonomic knobs. Control temperature within the grill for multiple cooking styles and options thanks to the ACCU-PROBE™ temperature gauge. Save space by folding down the generous side shelves, making this grill the perfect option for outdoor areas where space is at a premium.
Obsolete
LD3PSS

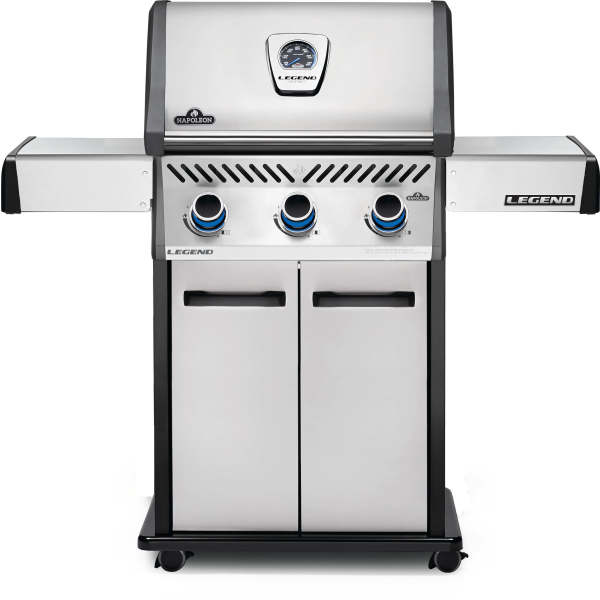

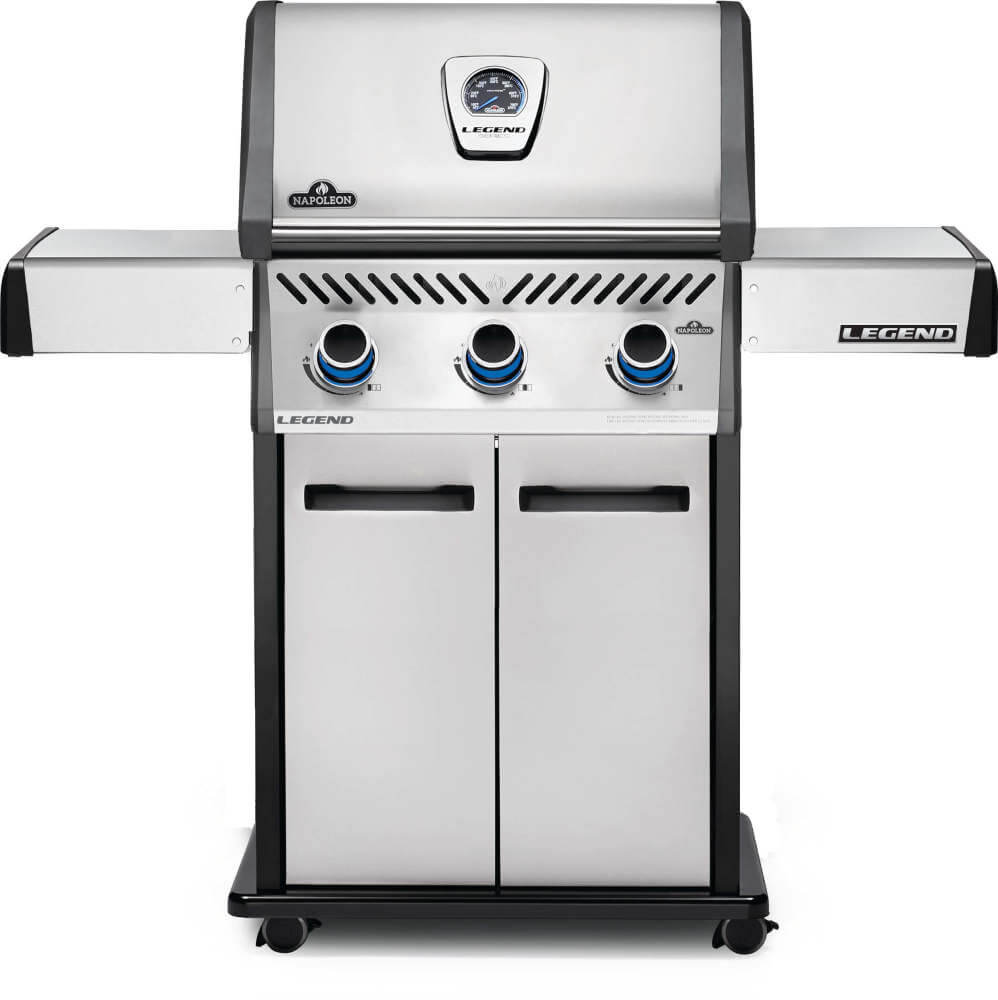

Legend LD3 Propane Gas Grill, Stainless Steel
| Numéro de pièce | Description de la pièce | ||
|---|---|---|---|
|
|
N010-0867 | ASSY, HANDLE STN STL 425 |
|
|
|
N010-1182 | ASSY, MANIFOLD 425 LPG |
|
|
|
N051-0011 | BEZEL, CONTR KNOB - P/PRO/LD/LEX/TRMPH |
|
|
|
N080-0366-BK1HT | BRACKET, LID CASTING CVR BK LFT LD3/4/4X |
|
|
|
N080-0367-BK1HT | BRACKET, LID CASTING CVR RT BK LD3/4/4X |
|
|
|
N080-0368-GY1SG | BRACKET DRIP PAN GUIDE 365/425/525 |
|
|
|
N080-0392-GY1SG | BRACKET, AIR DEFLECTOR R425 |
|
|
|
N080-0423 | BRACKET, CROSS LIGHT FOLDING R425 |
|
|
|
N100-0056 | BURNER, MAIN TUBE 365/425/500/525 |
|
|
|
N120-0031-BK0TX | CAP, END CONT PANEL LT BLACK LD3/4/4X |
|
|
|
N120-0032-BK0TX | CAP, END CONT PANEL RT BLACK LD3/4/4X |
|
|
|
N122-0450 | CARDBRD, CE TANK TRAY/ KIT SPCER 425 525 |
|
|
|
N200-0118-BK1SG | COVER, BASE BACK BLACK LD3 |
|
|
|
N335-0110 | LID, INSERT STN STL RXT/RSE425-1 |
|
|
|
N380-0031 | NGZ KNOB CONTR ROUND LRG BLUE GRIP |
|
|
|
N385-0449 | LABEL, 15 YEAR BUMPER WARRANTY EN/FR |
|
|
|
N385-0505 | HANGTAG, HOSE CLIP EN/FR/ES |
|
|
|
N385-0513 | LOGO, NAPOLEON 3PIN |
|
|
|
N450-0044 | @ NUT,THREAD CUTTING 3/16 STUD SIZE |
|
|
|
N485-0021 | NGZ PIN, HAIRPIN COTTER 2MM X 28MM (285) |
|
|
|
N485-0026 | PIN CLEVIS 6MM X 25MM 365/425/525 |
|
|
|
N510-0013 | RUBBER BUMPER FOR GSS48COV / PARE-CHOCS POUR COUVERCLE |
|
|
|
N520-0050 | RACK, WARMING CHROME PLTD ROGUE 425-1 |
|
| N530-0003 | REGULATOR 14" HOSE 1 OUTLET |
|
|
|
|
N570-0076 | SCREW, #8X1/2 HI/LO TAP PHIL PAN HD |
|
|
|
N570-0078 | @ * SCREW, M4 X 8MM PAN HD PHIL ZINC |
|
|
|
N570-0118 | SCREW,1/4-20X3/8 HEX HD BLK ZINC TYPE23 |
|
|
|
N570-0122 | SCREW,1/4-20 X 3/8" THREAD ROLL STN STL |
|
|
|
N570-0131 | SCREW, 1/4-20 X 9/16" SELF-LOCKING |
|
|
|
N570-0145-BK | SCREW 1/4-20X1/2 IN THRD RL TRS T30 BK |
|
|
|
N585-0103-BK1SG | SHIELD, HEAT CONTROL PANEL BLACK LD3 |
|
|
|
N585-0120 | SHIELD, HEAT LID INSERT RSE/RXT425 |
|
|
|
N685-0024 | TEMP GAUGE LEGEND, LD3/4/4X |
|
|
|
W450-0005 | @ NUT, SPRING |
|
| Z010-0051 | Z010-0051 |
|
|
|
|
N010-1043-SS-SER | ASSY, DOOR LEFT STN STL LD3 |
|
|
|
N010-1045-SS | ASSY, LID SS, BLACK CAST, LD3 |
|
|
|
N010-1046-SS-SER | ASSY, DOOR RIGHT STN STL LD3 |
|
|
|
N010-1049-SS-SER | ASSY, SHELF SIDE RIGHT SS LOGO LD3 |
|
|
|
N010-1050-SS-SER | ASSY, SHELF SIDE LEFT SS LD3 |
|
|
|
N010-1056-SER | ASSY, BASE CASTING LD3 |
|
|
|
N010-1601-SER | ASSY, CONT PANEL SS LD3 LPG |
|
|
|
N080-0364 | BRACKET SIDE SHELF “A” / SUPPORT DE LA TABLETTE LATÉRALE « A » |
|
|
|
N080-0365 | BRACKET SIDE SHELF “B” / SUPPORT DE LA TABLETTE LATÉRALE « B » |
|
|
|
N080-0378-BK1SG | BRACKET, DOOR PIVOT BLACK LD3/4/4X |
|
|
|
N080-0387-BK1SG | BRACKET, MAGNET DBL DOOR BK LD3/4/4X |
|
|
|
N105-0011 | DOOR BUSHINGS / BAGUES DE PORTE |
|
|
|
N120-0030-BK0TX | CAP, END SD SHLF BLACK LD3 |
|
|
|
N160-0034-BK1SG | CLIP, RETAINER TANK TOP BLACK LD3/4/4X |
|
|
|
N160-0035-BK0TX | CLIP, RETAINER TANK PLASTIC LD3/4/4X |
|
|
|
N160-0045 | CLIP, FLEX LINE, ADJUSTABLE |
|
|
|
N325-0094-BK0TX-SER | HANDLE, DOOR, BLACK LD3/R365MK-1 |
|
|
|
N370-0745 | KIT, ROTISSERIE MOUNT R425 |
|
|
|
N385-0226 | LOGO, LEGEND CAST ALUM BLACK BCKGRND |
|
|
|
N385-0513-SER | LOGO, NAPOLEON 3PIN+CLIPS |
|
|
|
N430-0002 | MAGNETIC CATCH / LOQUET MAGNÉTIQUE |
|
|
|
N475-0363-BK1SG | PANEL, REAR CART BLACK LD3 |
|
|
|
N475-0607-BK1SG | PANEL, LEFT/RIGHT CART BLACK LD3/4/4X |
|
|
|
N510-0015 | SOCKET, CASTER 365/425/525/625 |
|
|
|
N590-0256-BK1SG | SHELF, BOTTOM CART BLACK LD3 |
|
|
|
N710-0062 | TRAY, GREASE ALUM (HARD TOOLED) |
|
|
|
N710-0096 | PAN, DRIP STN STL 425 (DBL DOOR CAB) |
|
|
|
S82001 | 3" Caster Set for Rogue® Series and Prestige® 500 |
|
|
|
S83008 | Two Cast Iron Cooking Grids for Rogue® 425 |
|
|
|
S85001 | 14" Regulator for Propane LEX, Rogue® & Prestige® Series |
|
|
|
S87001 | 1 Burner & 2 Sear Plates for Rogue® Series, Prestige® 500 and PRO 500 Model Gas Grills |
|
|
|
S87010 | Cross Light Bracket & One Screws for Rogue® 425 |
|
|
|
S87014 | Lid Pivot for All Rogue® Series |
|
|
|
S87015 | Folding Side Shelf Kit for Prestige®, LEX, Rogue® and Triumph® |
|
