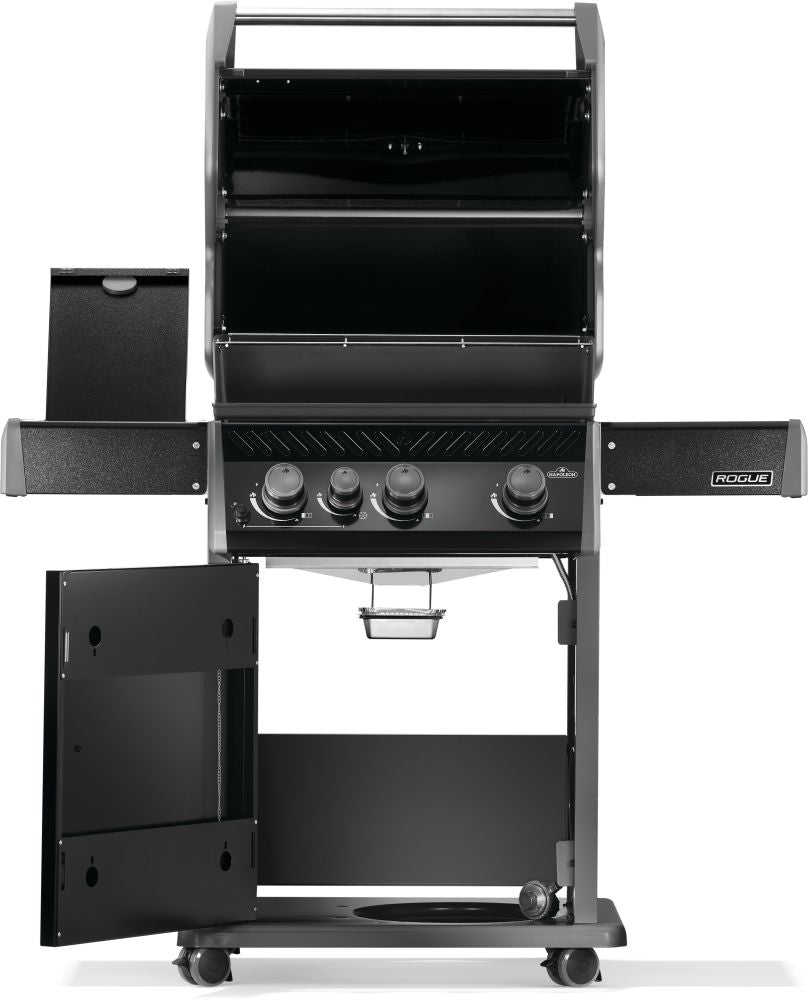

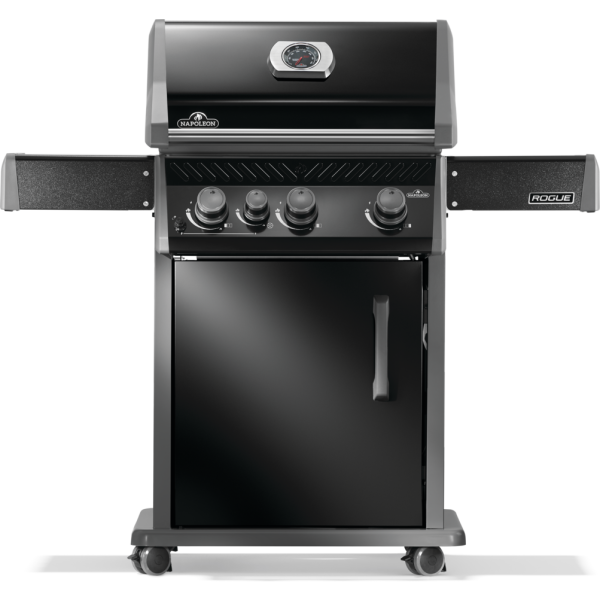

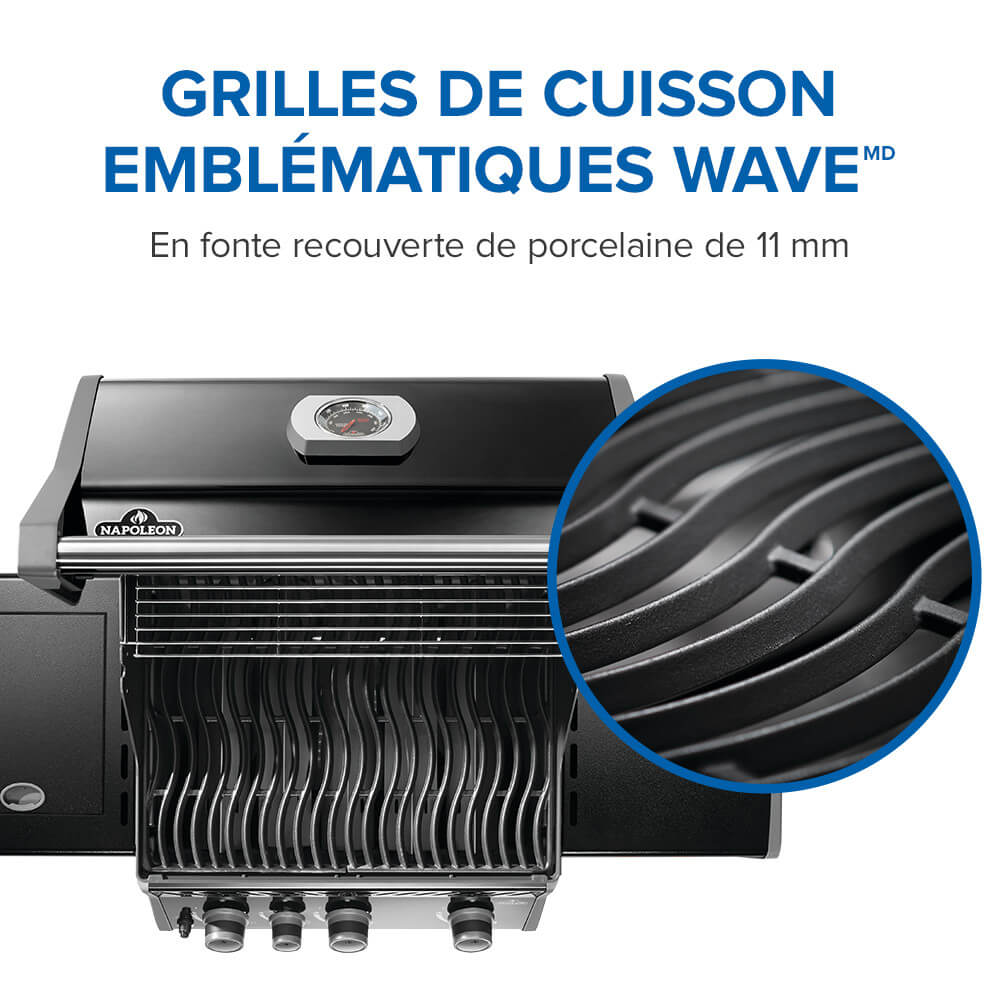

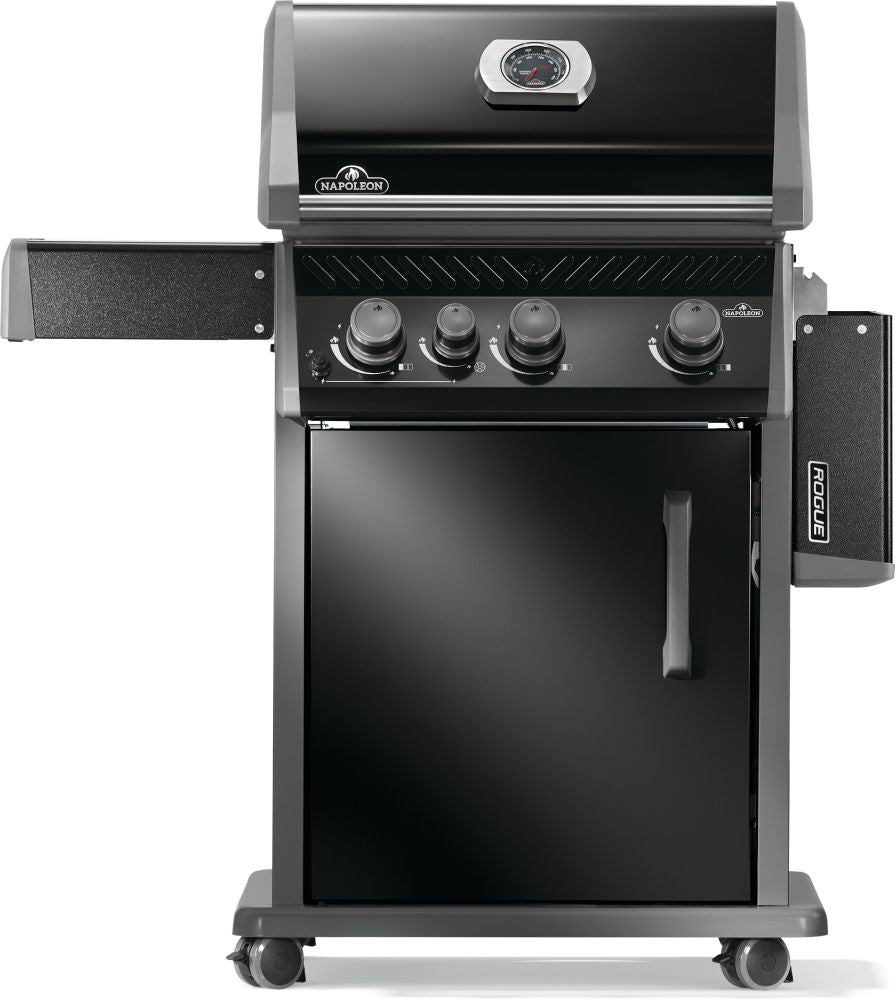

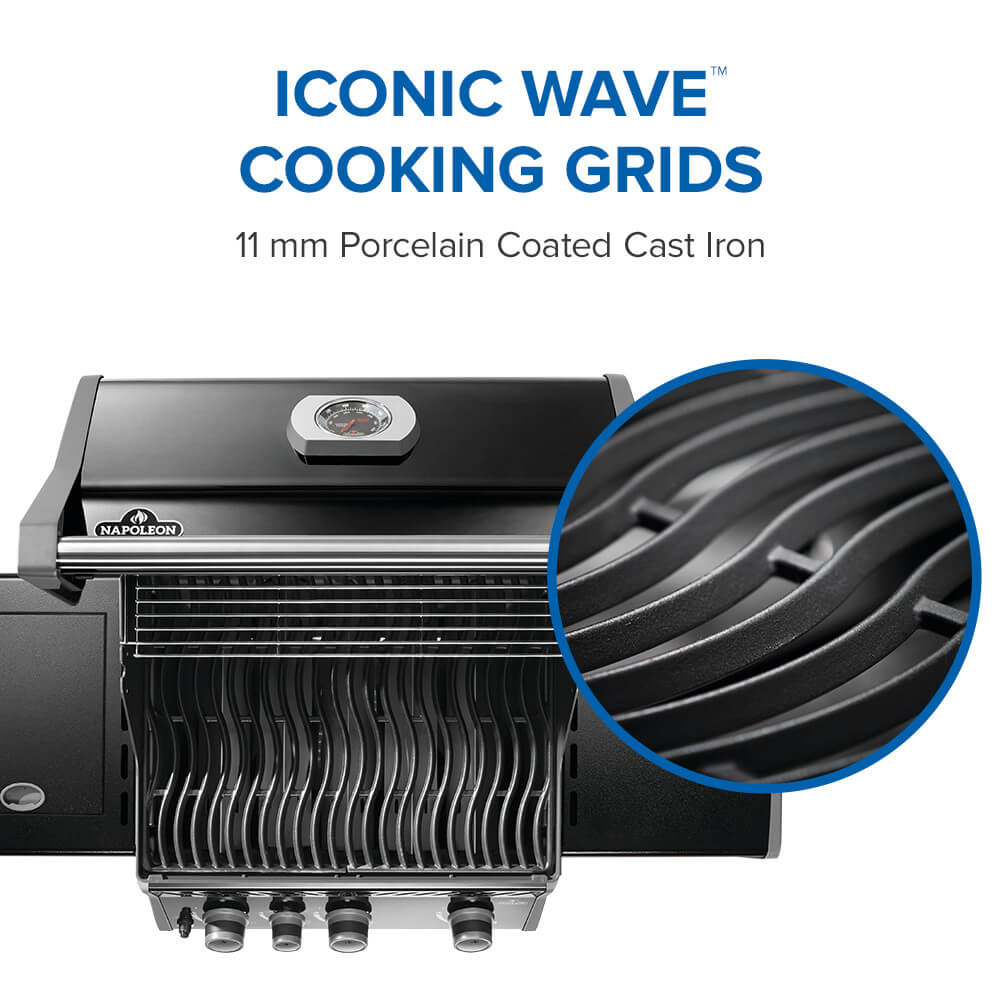

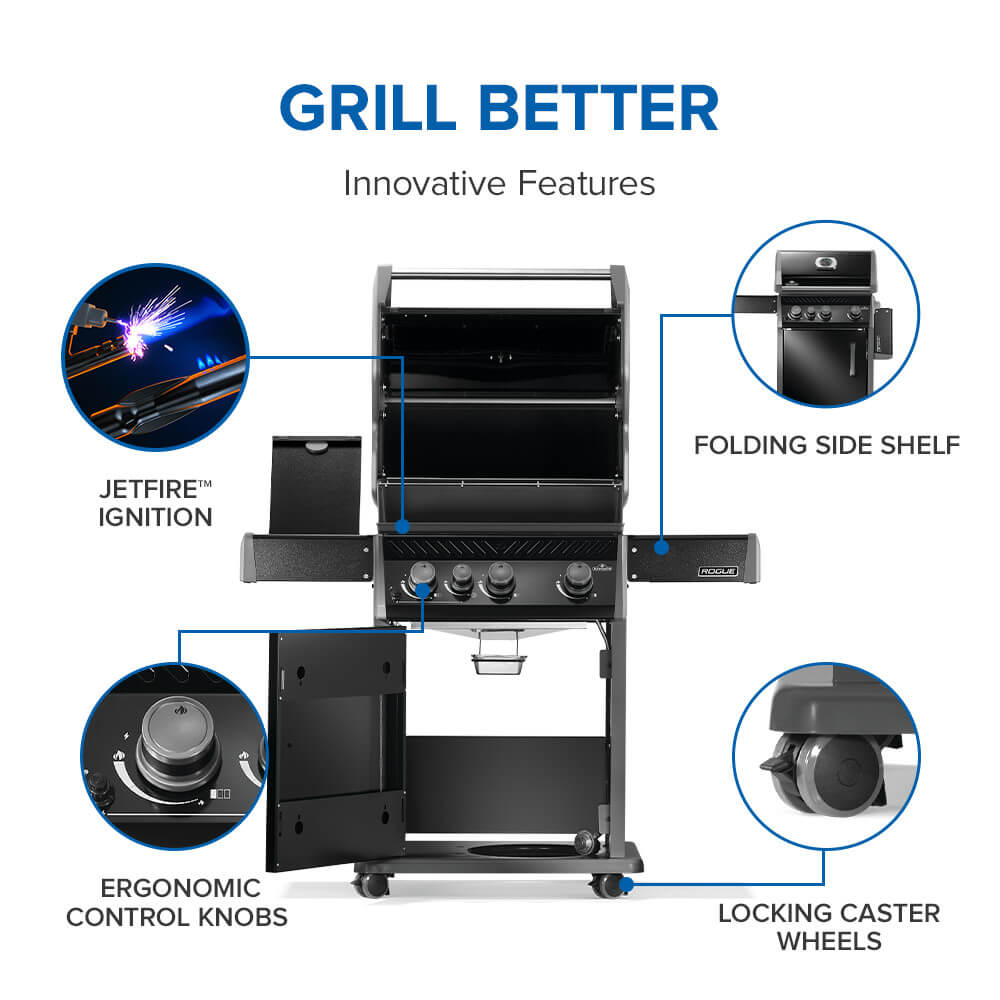

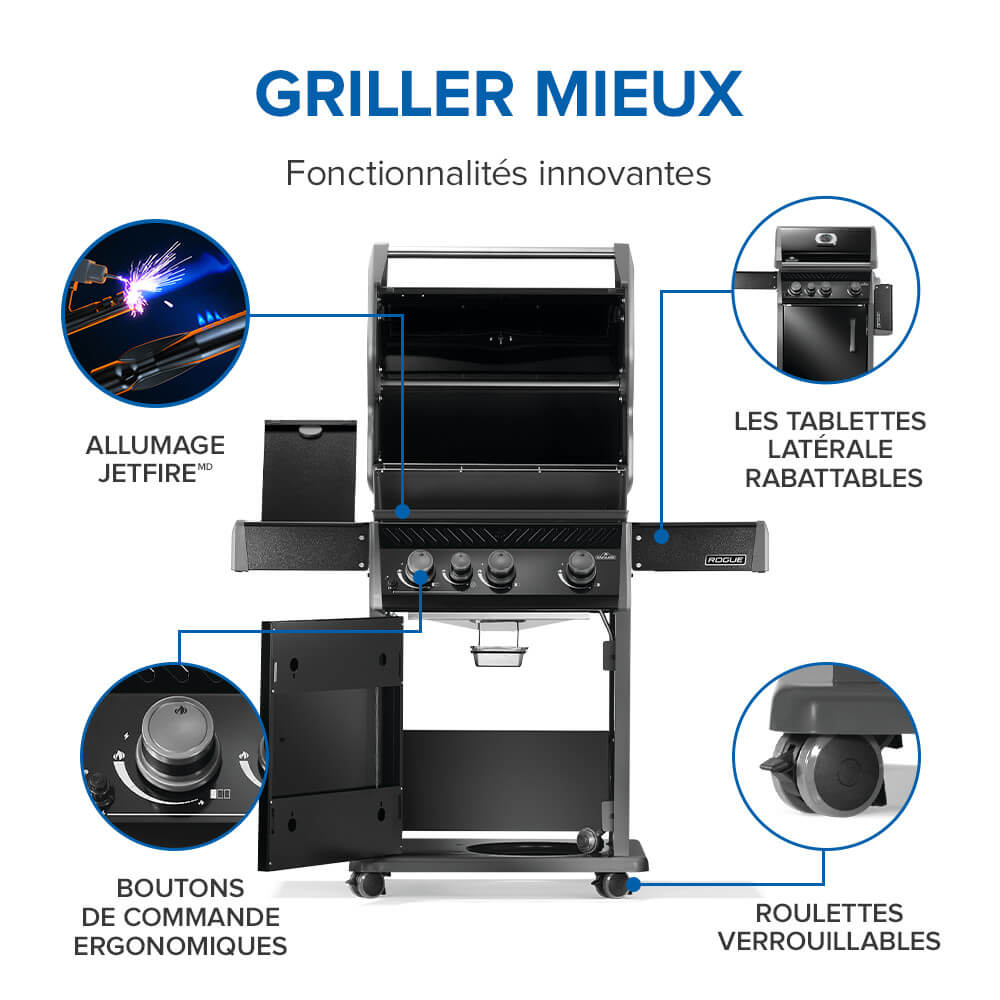

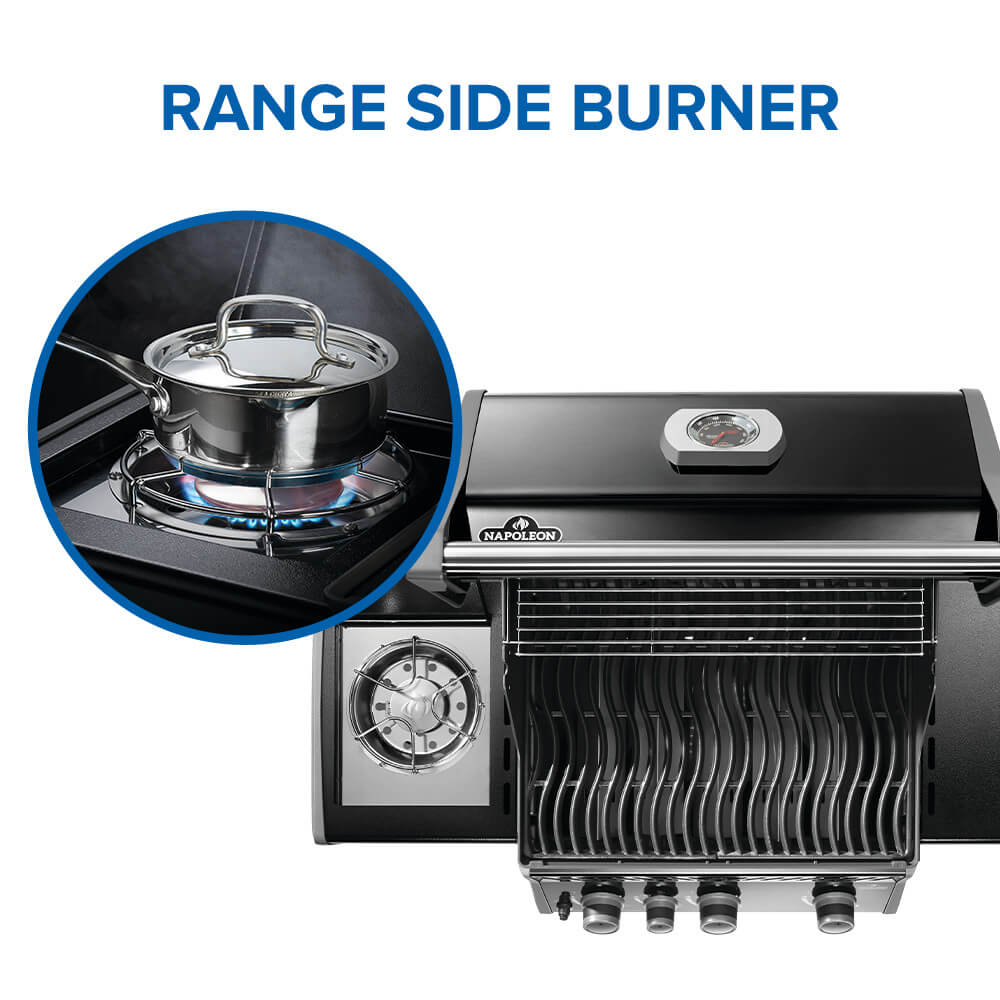

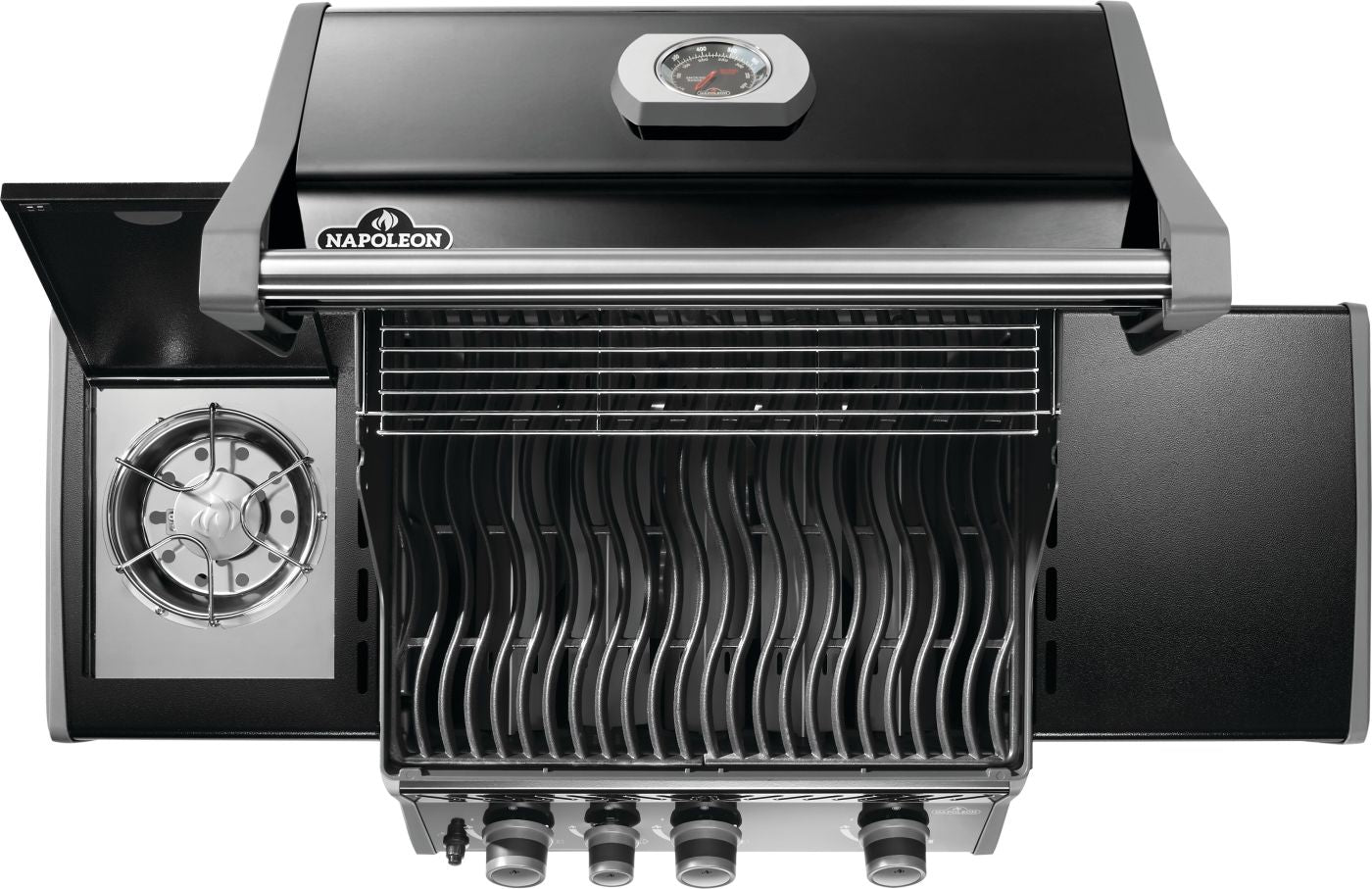

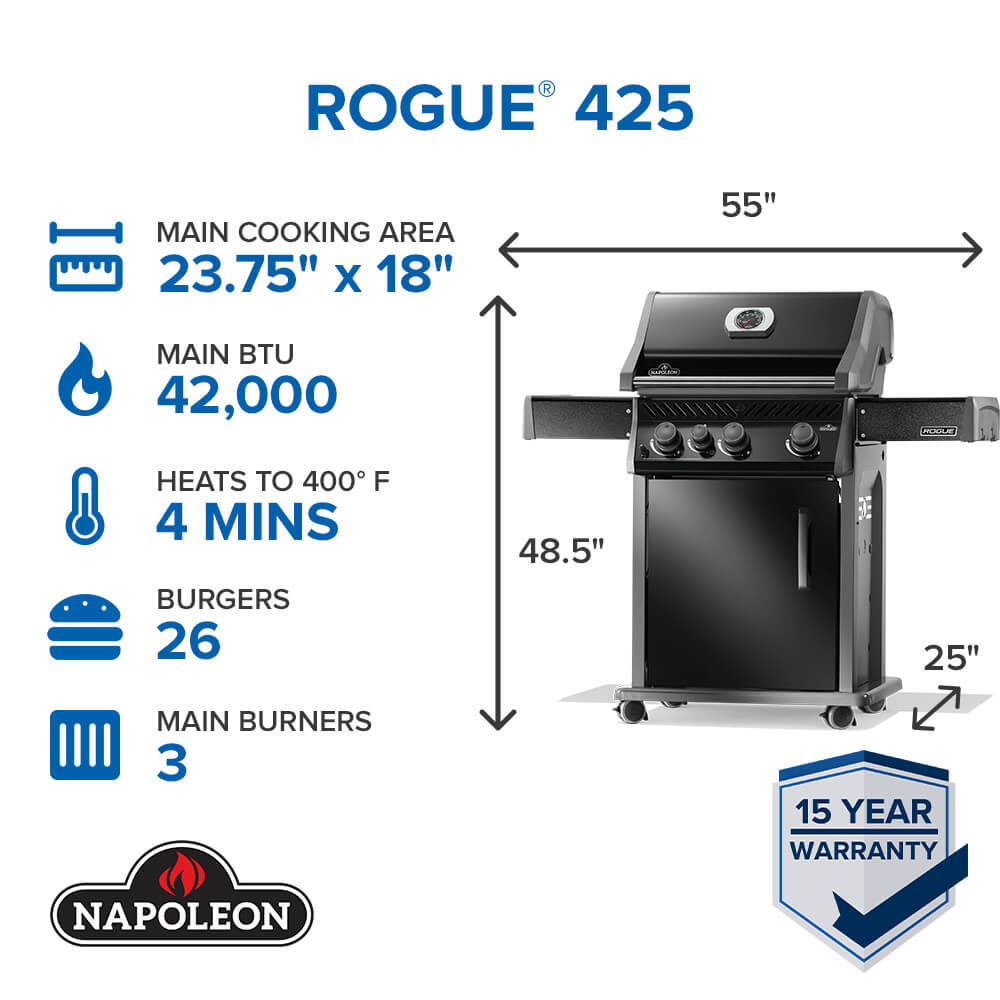

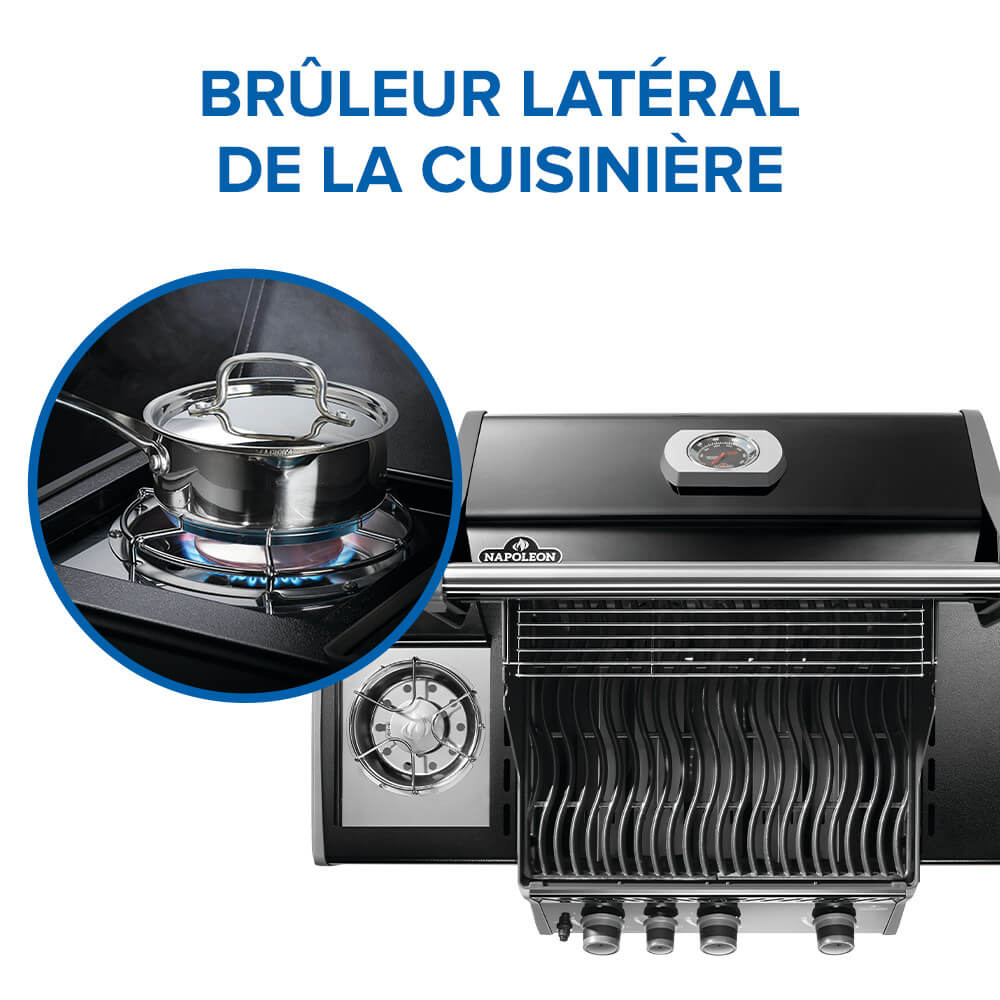

Rogue® 425 Natural Gas Grill with Range Side Burner, Black | R425SBNK-2-FB | Gas Grills | 51,000 BTU's | The sleek, black, Napoleon Rogue® 425 Natural Gas Grill provides succulent sears on our signature Wave cast iron grids. Three stainless steel burners ensure precise temperature control, while dual-level sear plates intensify flavors by vaporizing drippings. With 425 square inches of grilling space, whip up mouthwatering meals for any occasion. An integrated Range Side Burner makes sauces and sides a breeze. The easy-to-maintain porcelainized lid and powder coat body seamlessly blend with your outdoor setting. Maneuver with ease using locking casters and save space with folding side shelves. Discover unparalleled versatility, quality, and affordability with the Napoleon Rogue®.
R425SBNK-2-FB

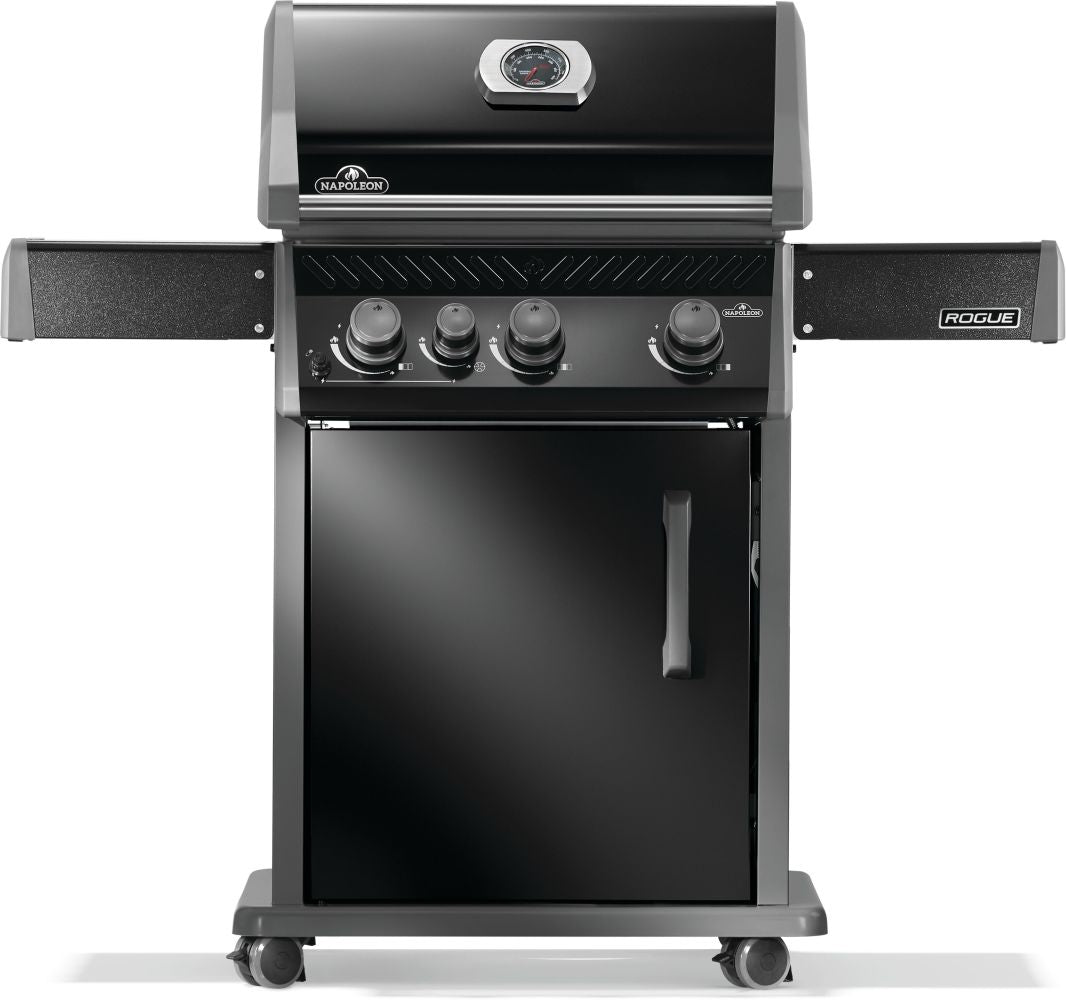

Rogue® 425 Natural Gas Grill with Range Side Burner, Black
| Numéro de pièce | Description de la pièce | ||
|---|---|---|---|
|
|
N010-0867 | ASSY, HANDLE STN STL 425 |
|
|
|
N010-1185 | ASSY, MANIFOLD IR/FLME SD BRN 425 NAT |
|

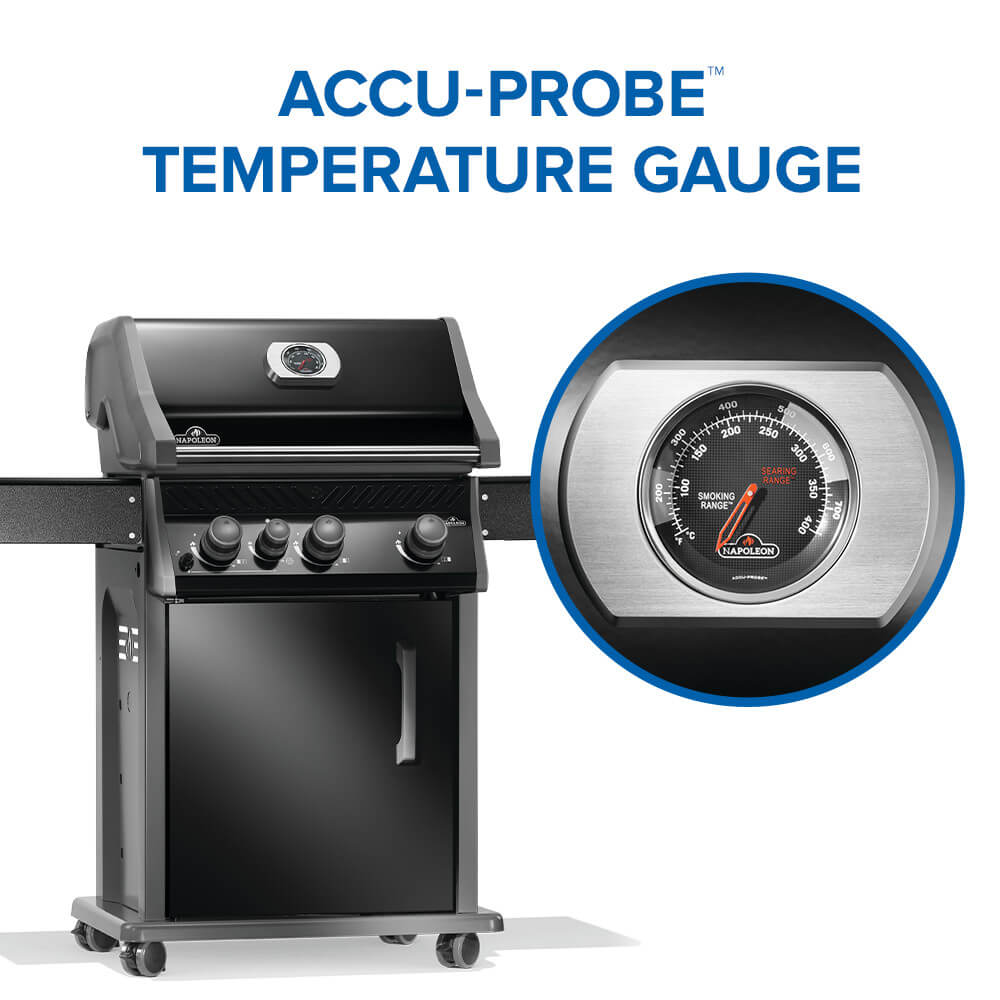

| N051-10001987-GY1HT | BEZEL, TEMP GAUGE GRAY, ROGUE-2 |
|
|
|
|
N080-0366-GY1HT | BRACKET, LID CASTING CVR LFT 365/425/525 |
|
|
|
N080-0367-GY1HT | BRACKET, LID CASTING CVR RT 365/425/525 |
|
|
|
N080-0368-GY1SG | BRACKET DRIP PAN GUIDE 365/425/525 |
|
|
|
N080-0392-GY1SG | BRACKET, AIR DEFLECTOR R425 |
|
|
|
N080-0423 | BRACKET, CROSS LIGHT FOLDING R425 |
|
| N100-0060-50 | BURNER, MAIN TUBE 18GA ROGUE 50MBAR |
|
|
|
|
N120-0031-GY0TX | CAP, END CONT PANEL LT GREY 365/425/525 |
|
|
|
N120-0032-GY0TX | CAP, END CONT PANEL RT GREY 365/425/525 |
|
|
|
N122-0450 | CARDBRD, CE TANK TRAY/ KIT SPCER 425 525 |
|
|
|
N135-0050-GY1HT | CASTING, LID LEFT SIDE R365/425/525 |
|
|
|
N135-0051-GY1HT | CASTING, LID RIGHT SIDE R365/425/525 |
|
|
|
N135-0052-GY1HT | CASTING, BASE GREY 425 |
|
|
|
N200-0118-GY1SG | COVER, BASE BACK, GREY RSE425-1 |
|
|
|
N335-0082-BK2GL | NGZ LID, INSERT BLACK 425 |
|
|
|
N345-0001 | HOSE 10FT TYPE I C/W QUICKDISCONNECT |
|
|
|
N357-0013 | IGNITER 1 SPARK - AAA 1.5V / ALLUMEUR |
|
|
|
N380-0043 | BURNER CONTROL KNOB LARGE / BOUTON DE CONTRÔLE GRANDE |
|
|
|
N380-0044 | KNOB, CONTROL W/ BEZEL, SML, ROGUE/RXT-1 |
|
|
|
N385-0505 | HANGTAG, HOSE CLIP EN/FR/ES |
|
|
|
N385-0513 | LOGO, NAPOLEON 3PIN |
|
| N385-0557 | N385-0557 |
|
|
| N385-10003364 | N385-10003364 |
|
|
|
|
N450-0032 | NGZ, NUT M4 TYPE K LOCKNUT STN STL |
|
|
|
N450-0044 | @ NUT,THREAD CUTTING 3/16 STUD SIZE |
|
| N475-10002334-BK1GL | PANEL, CONTROL FLAME SIDE R425SB-2 BK |
|
|
|
|
N485-0021 | NGZ PIN, HAIRPIN COTTER 2MM X 28MM (285) |
|
|
|
N485-0026 | PIN CLEVIS 6MM X 25MM 365/425/525 |
|
|
|
N510-0013 | RUBBER BUMPER FOR GSS48COV / PARE-CHOCS POUR COUVERCLE |
|
|
|
N520-0055 | RACK, WARMING STN STL R425-1 |
|
|
|
N570-0076 | SCREW, #8X1/2 HI/LO TAP PHIL PAN HD |
|
|
|
N570-0078 | @ * SCREW, M4 X 8MM PAN HD PHIL ZINC |
|
|
|
N570-0118 | SCREW,1/4-20X3/8 HEX HD BLK ZINC TYPE23 |
|
|
|
N570-0122 | SCREW,1/4-20 X 3/8" THREAD ROLL STN STL |
|
|
|
N570-0131 | SCREW, 1/4-20 X 9/16" SELF-LOCKING |
|
|
|
N570-0145-GY | SCREW 1/4-20x1/2IN THRD RL TRS T30 GY |
|
|
|
N585-0103-GY1SG | SHIELD, HEAT CONTROL PANEL GREY 425 |
|
| N685-10004971 | N685-10004971 |
|
|
|
|
N735-0032 | WASHER, ALUMINIUM 0.250x0.875 IN |
|
|
|
N750-0016 | ELECTRONIC IGNITION LEAD / FIL D’ALLUMAGE ÉLECTRONIQUE |
|
| Z010-0051 | Z010-0051 |
|
|
| Z010-0070 | Z010-0070 |
|
|
|
|
Z735-0001 | NGZ, WASHER M9 X 5MM X 0.5MM |
|
| Z735-0017 | Z735-0017 |
|
|
|
|
N010-0869-BK-SER | BLACK CART DOOR KIT / TROUSSE DE PORTE POUR CHARIOT NOIR |
|
|
|
N010-1041-SER | BASE CASTING ASSEMBLY / TROUSSE DE CUVE |
|
|
|
N010-1222-SER | ASSY, SHELF SB FLM BLACK R365/425/525-1 |
|
|
|
N010-1751-BK | ASSY, LID ROGUE 425 BLACK |
|
| N010-1763-NG-BK | N010-1763-NG-BK |
|
|
|
|
N010-1780-BK | ASSY, SML SIDE SHELF ROGUE BLACK L/R |
|
|
|
N080-0364 | BRACKET SIDE SHELF “A” / SUPPORT DE LA TABLETTE LATÉRALE « A » |
|
|
|
N080-0365 | BRACKET SIDE SHELF “B” / SUPPORT DE LA TABLETTE LATÉRALE « B » |
|
|
|
N080-0378-GY1SG | BRACKET, PIVOT / SUPPORT, PIVOT |
|
|
|
N080-0380-GY1SG | BRACKET MAGNET / SUPPORT MAGNÉTIQUE |
|
|
|
N100-0070 | BURNER, FLAME SIDE 365/425/525 |
|
|
|
N105-0011 | DOOR BUSHINGS / BAGUES DE PORTE |
|
| N120-0030 | N120-0030 |
|
|
|
|
N120-0030-GY0TX | CAP, END SD SHLF GREY 365/425/525 |
|
|
|
N160-0033-GY1SG | CLIP, GREASE TRAY GREY 365/425/525 |
|
|
|
N160-0045 | CLIP, FLEX LINE, ADJUSTABLE |
|
|
|
N200-0136-GY1SG | COVER, BASE BACK GREY ROGUE/RXT425-1 |
|
|
|
N255-0027 | FITTING, UNION 3/8” FLARE / L’RACCORD, 3/8 PO ÉCLATER |
|
|
|
N325-0094-SER | HANDLE, DOOR 365/425/525/625 |
|
|
|
N335-0099-BK1HR | LID, SIDE BURNER R425SIBPBE |
|
|
|
N385-0513-SER | LOGO, NAPOLEON 3PIN+CLIPS |
|
| N385-10001896 | N385-10001896 |
|
|
|
|
N430-0002 | MAGNETIC CATCH / LOQUET MAGNÉTIQUE |
|
|
|
N475-0363-GY1SG | PANEL, REAR CART GREY 425 |
|
|
|
N475-0607-GY1SG | PANEL, LFT/RT CART RSE/RXT365/425/525-1 |
|
| N475-10002332-BK1GL | N475-10002332-BK1GL |
|
|
|
|
N510-0015 | SOCKET, CASTER 365/425/525/625 |
|
|
|
N570-0013 | @SCREW #8 X 5/8" ST.ST. PAN HD. PHIL. |
|
|
|
N570-0068 | @ SCREW,14X 1/2 STN STL HEX WSHR HD AB |
|
|
|
N590-0256-GY1SG | SHELF, BOTTOM CART GREY 425 NA |
|
| N590-10001906-BK1HR | N590-10001906-BK1HR |
|
|
|
|
N710-0062 | TRAY, GREASE ALUM (HARD TOOLED) |
|
|
|
N710-0094 | PAN, DRIP STN STL 425 (SINGLE DOOR CAB) |
|
|
|
S82001 | 3" Caster Set for Rogue® Series and Prestige® 500 |
|
| S83017 | Three Cast Iron Cooking Grids for Rogue® 525 |
|
|
|
|
S85002 | 10' Natural Gas hose with 3/8" Quick Connect |
|
|
|
S86002 | 1 Spark Igniter |
|
|
|
S87010 | Cross Light Bracket & One Screws for Rogue® 425 |
|
|
|
S87015 | Folding Side Shelf Kit for Prestige®, LEX, Rogue® and Triumph® |
|
|
|
S87024 | Replacement Sear Plates Rogue® 425 |
|
|
|
S87027 | Replacement Burners Rogue® 425, Freestyle™ 365 |
|
| S91015 | S91015 |
|
|
|
|
W450-0005 | @ NUT, SPRING |
|
|
|
Z305-0008 | SIDE BURNER GRATE 325/410/425/495 |
|
|
|
Z325-0013 | HANDLE, SB LID 325/365/410/425/495/525 |
|
|
|
Z430-0002 | MAGNET, SB LID 325/365/410/425/495/525 |
|
|
|
Z485-0001 | CLEVIS PIN |
|
|
|
Z580-0003 | PIVOT, SB LID 325/365/410/425/495/525 |
|
