TravelQ™ 285X Portable Propane Gas Grill and Scissor Cart with Griddle, Red | TQ285X-RD-A | Portable Grills | 12,000 BTU's | Winner of two prestigious awards, the 2014 Vesta in the gas barbecue division, and the award for Top Ten Best Value Grill from AmazingRibs.com, the beautiful red Napoleon TravelQ™ 285X Portable Propane Gas Grill With Scissor Cart is a grill that can't be beat. Leading the way with innovation and quality, Napoleon's TravelQ™ 285X has everything you need for perfect portable grilling anywhere. Featuring all-terrain wheels, easy folding, setup, and compact storage, this grill is perfect for any adventure. Two burners provide precise heat for indirect grilling and smoking, or high heat searing. You'll know it's a Napoleon with the iconic WAVE™ cooking grids for those distinctive sear marks. The porcelainized cast iron cooking grids and griddle season up just like a cast iron frying pan. Go anywhere by hooking up a 1.2 lb. propane cylinder, or stay put with a full-sized tank. The TravelQ™ 285X has everything you need for successful grilling on the go.
Obsolete
TQ285X-RD-A

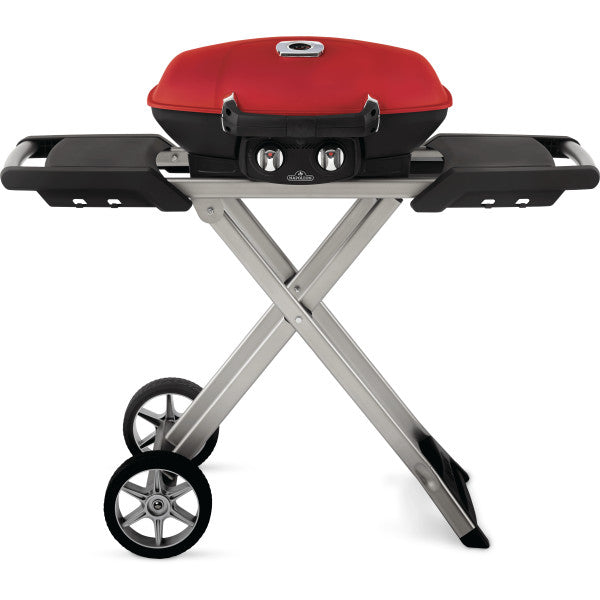

TravelQ™ 285X Portable Propane Gas Grill and Scissor Cart with Griddle, Red
| Numéro de pièce | Description de la pièce | ||
|---|---|---|---|
|
|
N010-0773 | NGZ, ASSY MANIFOLD LPG (285) |
|
|
|
N010-0804-SS1SG | NGZ ASSY, CART FRONT BEAM TQ285X |
|
|
|
N010-0805-SS1SG | NGZ ASSY, CART REAR BEAM TQ285X |
|
|
|
N010-0806-SS1SG | NGZ ASSY, CART WHEEL SIDE TQ285X |
|
|
|
N010-1155-RD | ASSEMBLY, LID RED TQ285-1 |
|
|
|
N010-1157-SER | HANDLE, BOTTOM TQ285-1/TQ285X-1 |
|
|
|
N015-0009 | NGZ AXLE, WHEEL TQ285X |
|
|
|
N051-0009 | NGZ, BEZEL TEMPERATURE GAUGE (285) |
|
|
|
N080-0302 | NGZ, BRACKET CROSS LIGHT (285) |
|
|
|
N080-0304 | NGZ, BRACKET DRIP PAN SUPPORT (285) |
|
|
|
N100-0046 | NGZ, BURNER TUBE LEFT LPG (285) |
|
|
|
N100-0047 | NGZ, BURNER TUBE RIGHT LPG (285) |
|
|
|
N105-0016 | NGZ, BUSHING WHEEL |
|
|
|
N120-0023 | NGZ, CAP NYLON WHEEL FRAME TQ285X |
|
|
|
N135-0045-BK1HT | NGZ, CASTING BASE BLACK (285) |
|
|
|
N135-0066-RD1HT | LID, RED TQ285-1 |
|
|
|
N160-0026 | NGZ, CLIP NYLON TQ285X |
|
|
|
N200-0107 | NGZ COVER, DUST REGULATOR TQ285X |
|
|
|
N200-0108-BK1HT | NGZ COVER, LEFT LEG TQ285X |
|
|
|
N200-0109-BK1HT | NGZ COVER, RIGHT LEG TQ285X |
|
|
|
N272-0001 | NGZ, FOOT SCISSOR CART TQ285X |
|
|
|
N305-0087-BK2FL | NGZ,GRID COOKING CAST LEFT (285) |
|
|
|
N305-0088-BK2FL | NGZ,GRID COOKING CAST RIGHT (285) |
|
|
|
N325-0082 | NGZ, HANDLE TOP/BOTTOM (TQ285/TQ285X) |
|
|
|
N325-0082B-SER | NGZ, HANDLE BOTTOM SPLIT (TQ285/TQ285X) |
|
|
|
N325-0082T-SER | NGZ, HANDLE TOP SPLIT (TQ285/TQ285X) |
|
|
|
N325-0084 | NGZ, HANDLE FOOT SCISSOR CART TQ285X |
|
|
|
N325-0084-SER | NGZ, HANDLE FOOT SCISSOR CART TQ285X |
|
|
|
N325-0085-SS1SG | NGZ, HANDLE CART CHASSIS TQ285X |
|
|
|
N330-0020-SER | NGZ, HINGE LEFT (285) |
|
|
|
N330-0021-SER | NGZ, HINGE RIGHT (285) |
|
|
|
N380-0020-RD | BURNER CONTROL KNOB / BOUNTON DE CONTRÔLE POUR BRÛLEUR |
|
|
|
N390-0003 | NGZ, LATCH HANDLE LID (285) |
|
|
|
N390-0004-BK1SG | NGZ, LATCH SLIDE LOCK BLACK (TQ285X) |
|
|
|
N390-0005-SS1SG | NGZ, LATCH SLIDE HANDLE (TQ285X) |
|
|
|
N450-0043 | NGZ, NUT AXLE PLASTIC CAP 8MM |
|
|
|
N475-0319-SER | NGZ, PANEL CONTROL 285 NA / 30MBAR |
|
|
|
N485-0021 | NGZ PIN, HAIRPIN COTTER 2MM X 28MM (285) |
|
|
|
N485-0022 | NGZ, PIN CLEVIS 8MM X 50MM TQ285X |
|
|
|
N500-0042B | NGZ HNDLE, LID VENT (NK22CK-L/NK22CK-C) |
|
|
|
N525-0047-BK1SG | NGZ RAIL, SLIDING TRACK BLACK TQ285X |
|
|
|
N525-0047-BK1SG-SER | NGZ RAIL, SLIDING TRACK BLACK TQ285X |
|
|
|
N530-0055-SER | NGZ REGULATOR (TQ285X/PRO285X) SER |
|
|
|
N570-0013 | @SCREW #8 X 5/8" ST.ST. PAN HD. PHIL. |
|
| N570-0026 | USE N570-0086 |
|
|
|
|
N570-0073 | @ SCREW, 1/4-20 X 3/8 S/S HEX WASHER HD |
|
|
|
N570-0076 | SCREW, #8X1/2 HI/LO TAP PHIL PAN HD |
|
|
|
N570-0078 | @ * SCREW, M4 X 8MM PAN HD PHIL ZINC |
|
|
|
N570-0086 | @SCREW, AB THREAD 14 X 1/2 HEX HD WASHER |
|
|
|
N570-0104 | 10-24 X 3/8” SCREW / VIS, 10-24 X 3/8 PO |
|
|
|
N570-0107 | NGZ,SCREW 10-24 X 30MM STN PAN TQ285X |
|
|
|
N570-0108 | NGZ,SCREW M8 X 35MM PAN HD BLK TQ285X |
|
|
|
N570-0109 | NGZ,SCREW M8 X 60MM PAN HD BLK TQ285X |
|
|
|
N570-0111 | NGZ, SCREW #14 X 1-1/4 ZINC HEX HD |
|
|
|
N585-0089-BK1HT | NGZ, SHIELD HEAT CNTRL PNL (285) BLK |
|
|
|
N630-0006 | NGZ SPRING EXTENSION TQ285X/365/425/525 |
|
|
|
N655-0156 | SUPP, LID HANDLE LEFT TQ285/TQ285X |
|
|
|
N655-0157 | SUPP, LID HANDLE RGHT TQ285/TQ285X |
|
|
|
N655-0158 | NGZ SUPPORT, BASE HANDLE LEFT (285) |
|
|
|
N655-0159 | NGZ SUPPORT, BASE HANDLE RIGHT (285) |
|
|
|
N685-0015 | NGZ, GAUGE TEMPERATURE (TQ285) |
|
|
|
N710-0079 | NGZ, PAN DRIP (285/285X) |
|
|
|
N720-0060 | NGZ CONNECTOR,FLEX MANIFOLD 1/4X14"(285) |
|
|
|
N720-0067-SS1SG | NGZ TUBE, CART FOOT SIDE TQ285X |
|
|
|
N735-0018 | NGZ WASHER, LEG PIVOT TQ285X |
|
|
|
N735-0019 | NGZ WASHER,8MM NYLON TQ285X |
|
|
|
N745-0007 | WHEEL, NAP 8"- 6 SPOKE .5" BORE |
|
|
|
Z450-0015 | NGZ, NUT M8 BLK ZINC NYLOCK |
|
|
|
Z570-0023 | SCREW 10-24 X 6MM STAINLESS STEEL / VIS 10-24 X 6MM ACIER INOXYDABLE |
|
|
|
Z570-0029 | SCREW, 10-24 35 MM STN STL PAN HEAD |
|
|
|
Z570-0033 | SCREW, 10-24 12 MM STN STL PAN HEAD |
|
|
|
Z570-0036 | NGZ, SCREW,1/4-20 X 1 1/8" PAN HEAD BLK |
|
Manuels / Guides de produits

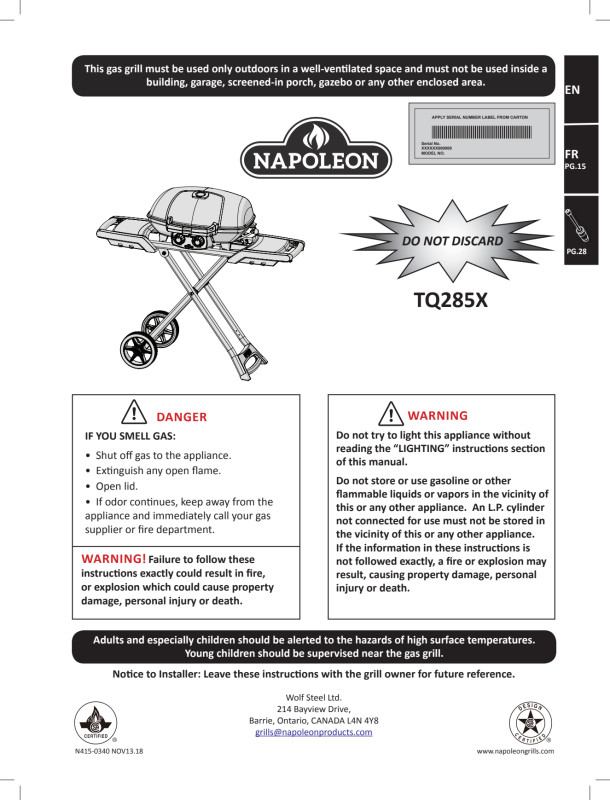

N415-0340.pdf
Télécharger
