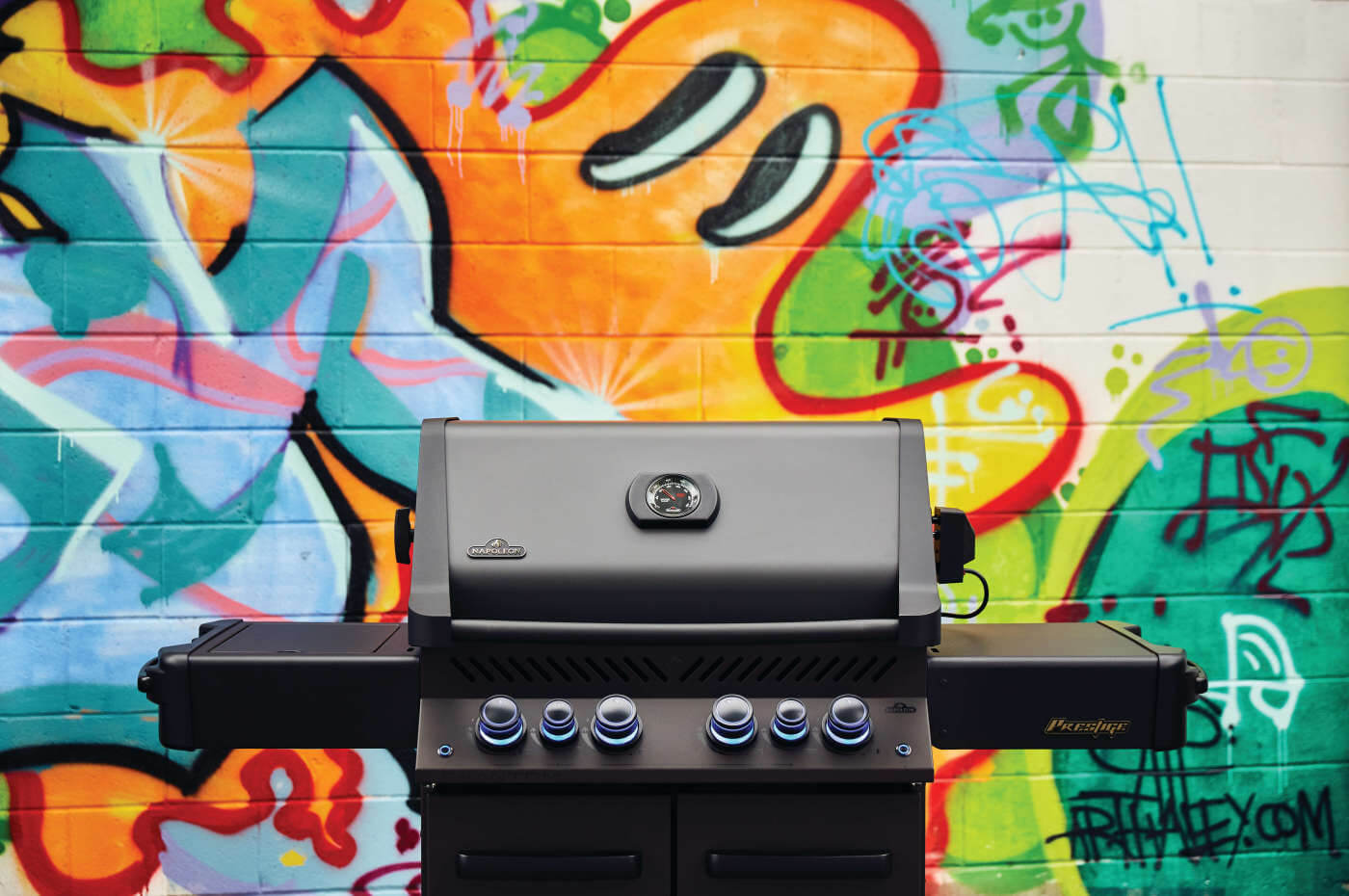

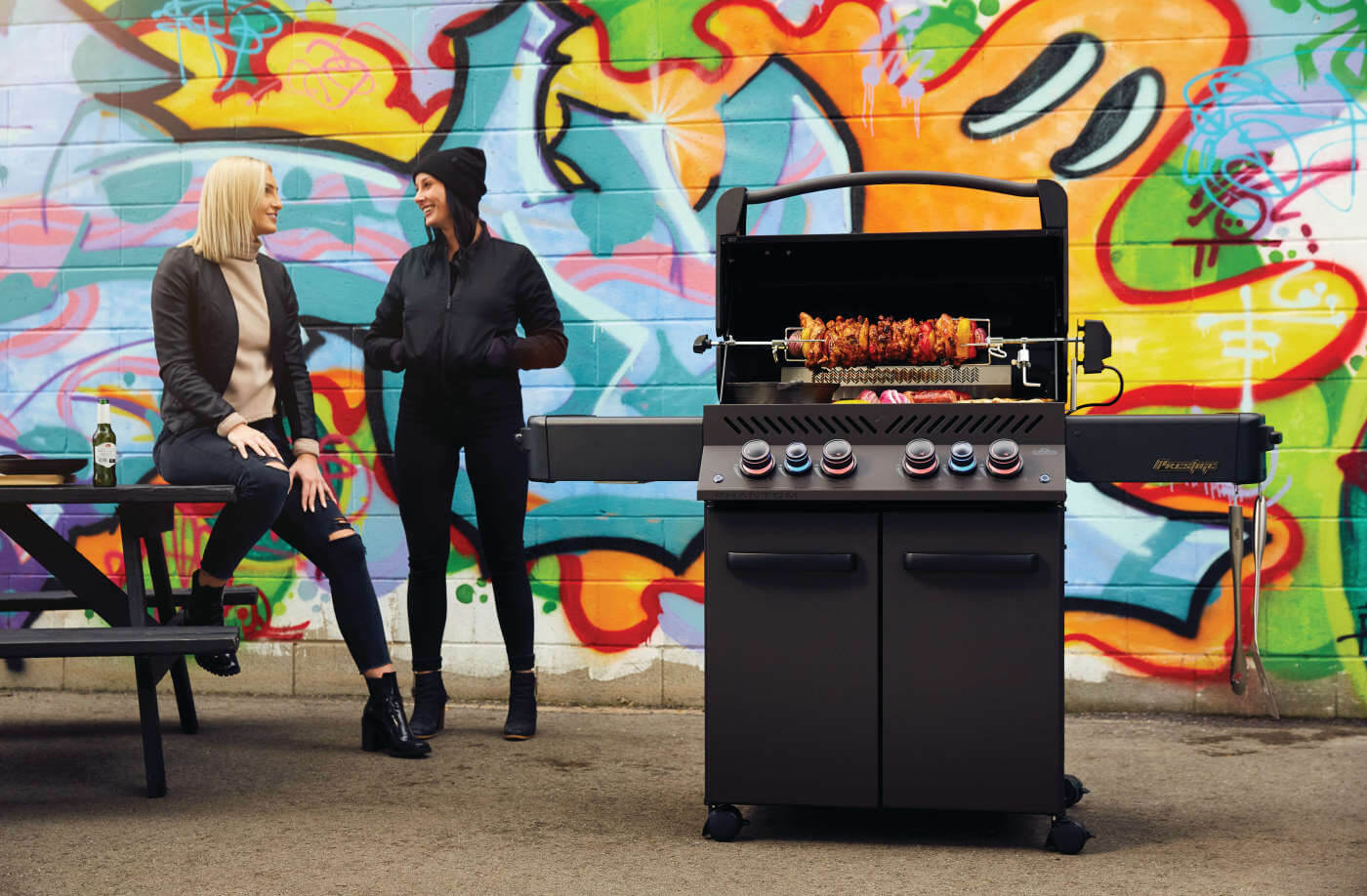

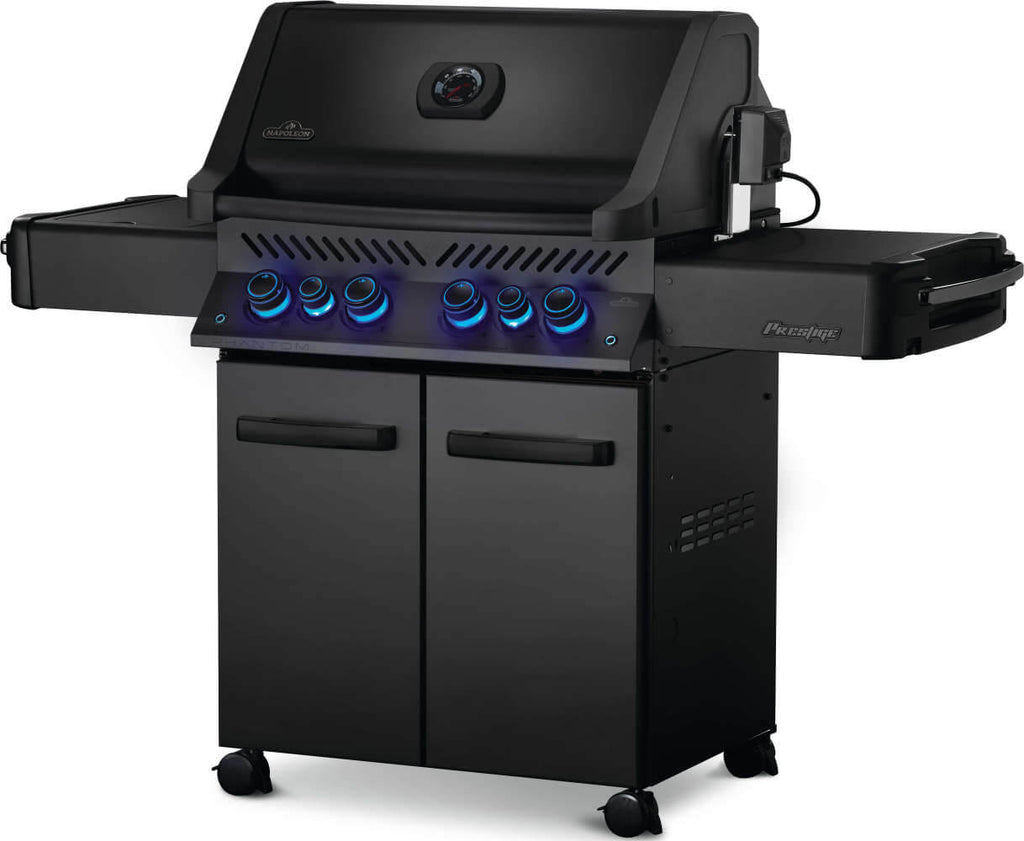

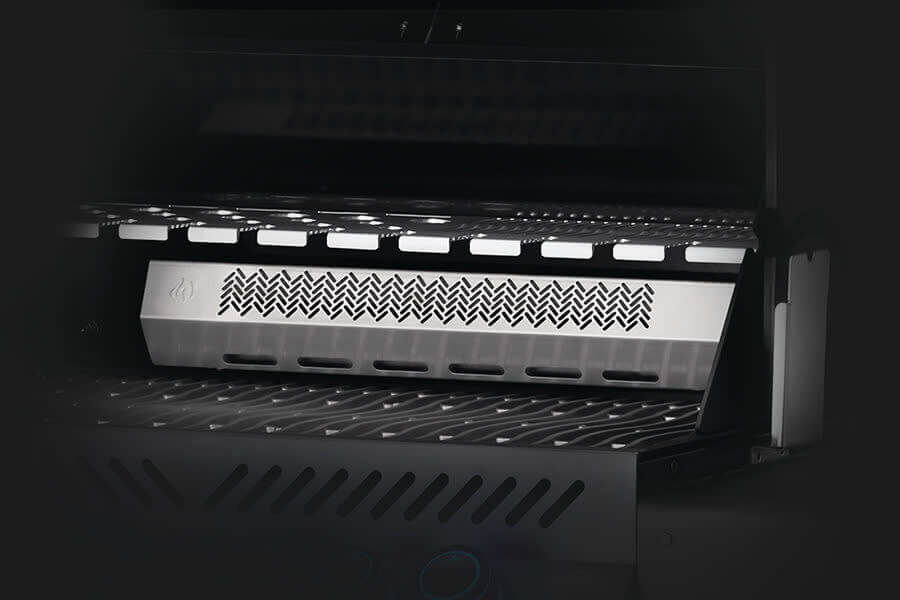

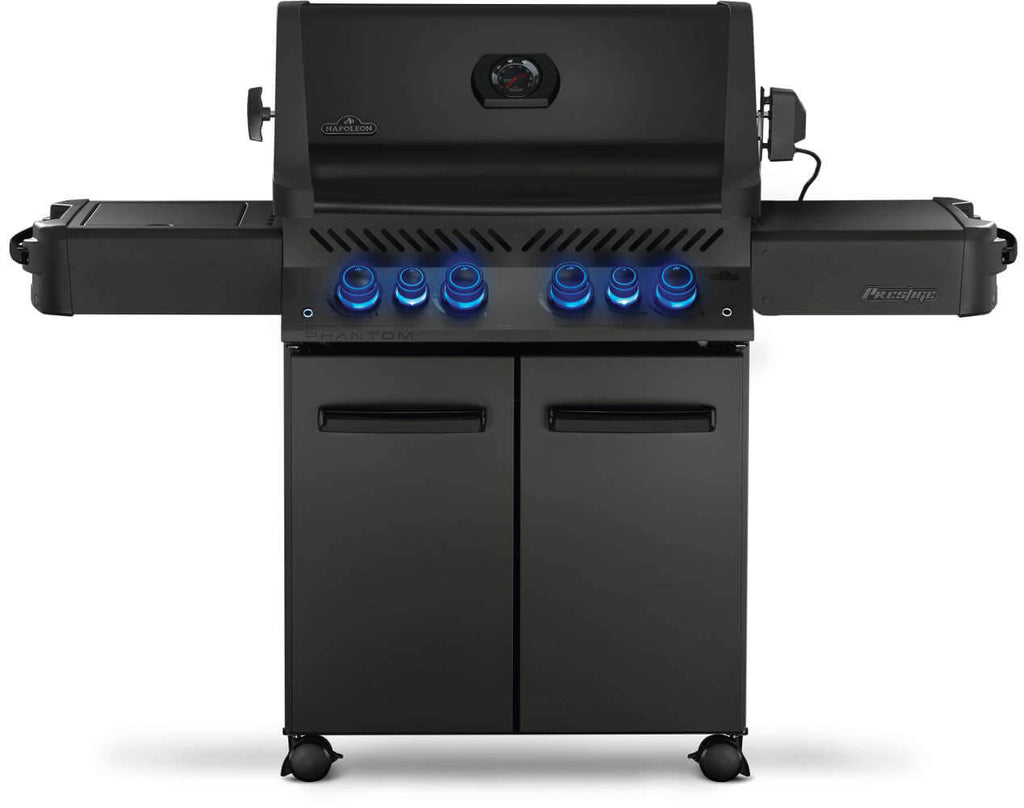

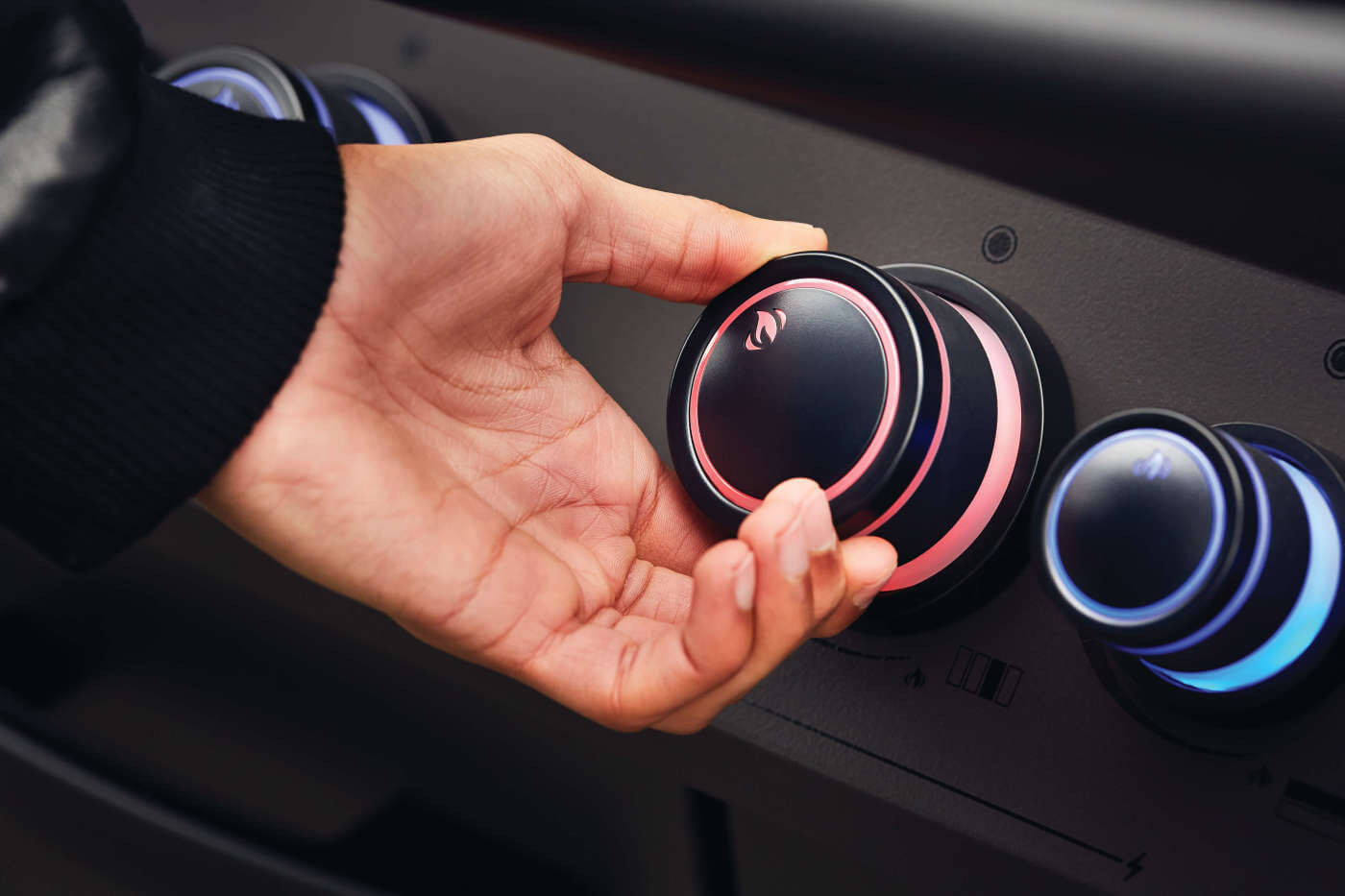

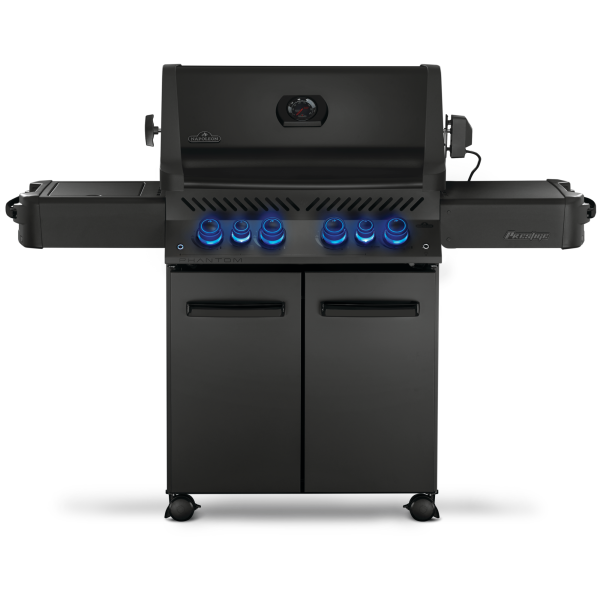

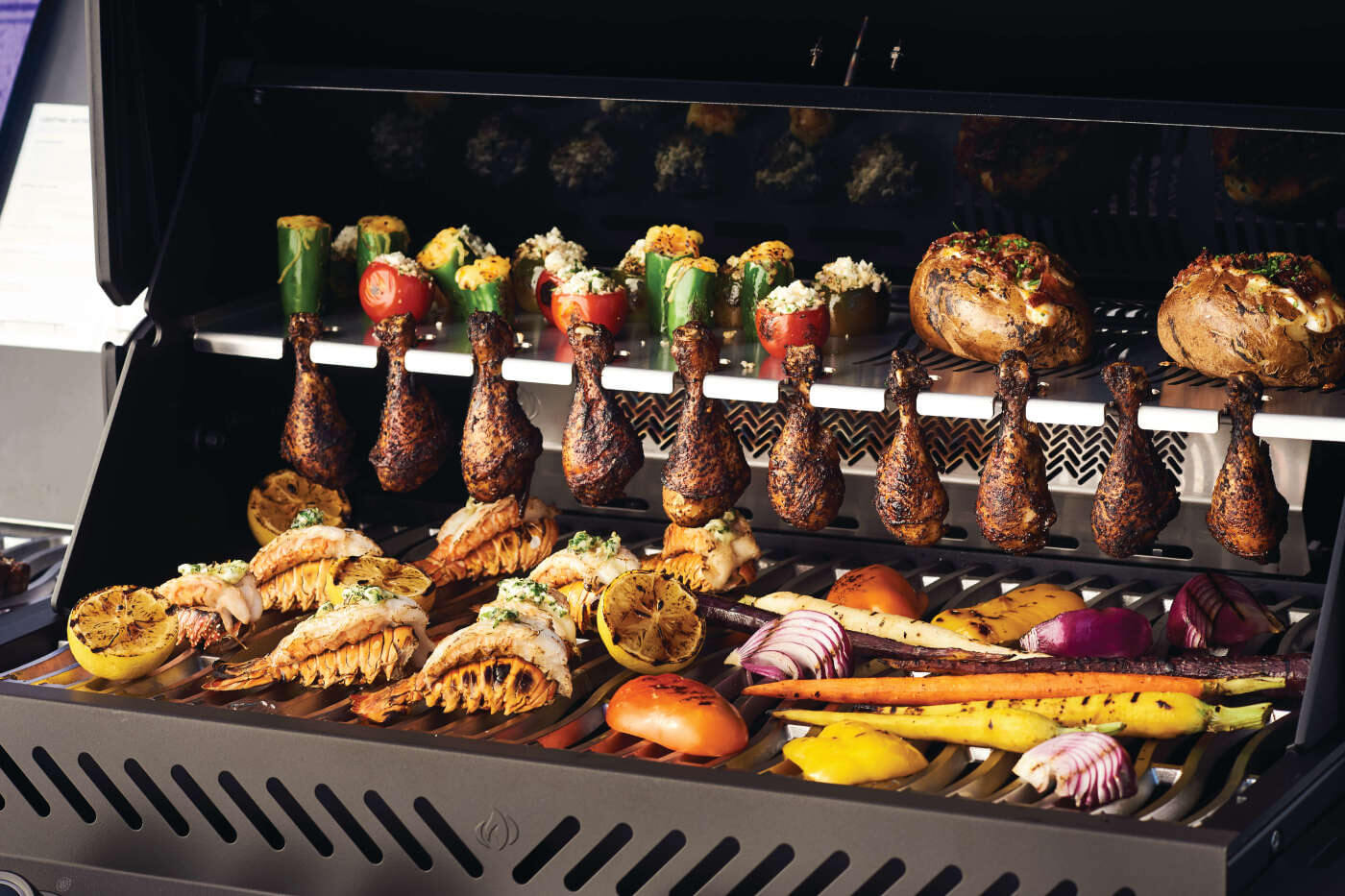

PHANTOM Prestige® 500 Propane Grill with Infrared Side and Rear Burner | P500RSIBPK-3-PHM | Gas Grills | 80,000 BTU's | Deep, dark, matte black, the Phantom Prestige® 500 Propane Grill with Infrared Side and Rear Burners is the total grilling package. From the top of the lid to the locking casters, this gas barbecue is completely silky matte black. Edgy and attractive, the Phantom has the full capabilities of an outdoor kitchen. Upgraded iconic WAVE™ cast stainless steel cooking grids and a multifunctional grilling rack - ideal for entertaining and incredible appetizers - round out the already incredible features of a Prestige® 500 Gas Grill. Four main burners, a rear burner, and infrared sear station, this grill cooks meals using a plethora of unique grilling styles. Stainless steel sear plates provide extra surface area for drippings to vaporize, keeping this luxurious grill clean, avoiding flare-ups. The matte black knobs are backlit with the SafetyGlow feature filling the night with blue light that turns red when the burners are on. The Phantom Prestige® 500 Gas Grill is more than just a look. It's a lifestyle.
Obsolete
P500RSIBPK-3-PHM

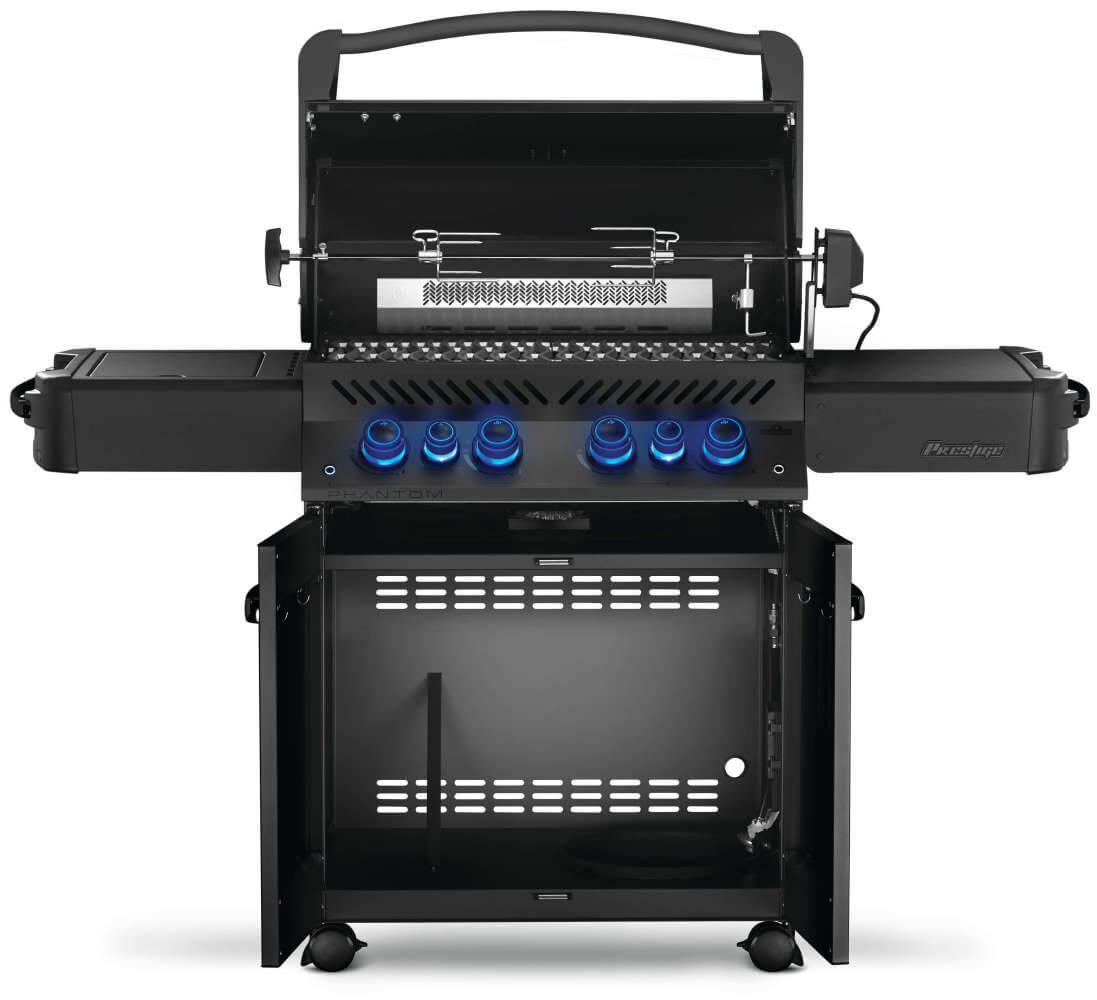

PHANTOM Prestige® 500 Propane Grill with Infrared Side and Rear Burner
| Part Number | Part Description | ||
|---|---|---|---|
|
|
N135-0049-BK1HT | CASTING, BASE BLACK 500 |
|
|
|
N080-0282-BK1HX | BRACKET, UNIT MNT LT/RT BLK TXTR P500-3 |
|
|
|
N570-0122 | SCREW,1/4-20 X 3/8" THREAD ROLL STN STL |
|
|
|
N570-0132 | SCREW, 1/4-20 X 1/2 FLAT PH HEAD STN STL |
|
|
|
N080-0406 | BRACKET, CROSS LIGHT P/PRO500 |
|
|
|
N100-0056 | BURNER, MAIN TUBE 365/425/500/525 |
|
|
|
N475-0016 | MOUNT,ROT BRKT SS450/500/PT600/750 |
|
|
|
N570-0086 | @SCREW, AB THREAD 14 X 1/2 HEX HD WASHER |
|
|
|
N080-0359 | BRACKET, FOLDING SHELF "A" P500-1 |
|
|
|
N080-0360 | BRACKET, FOLDING SHELF "B" P500-1 |
|
|
|
N570-0068 | @ SCREW,14X 1/2 STN STL HEX WSHR HD AB |
|
|
|
N100-0045 | BURNER, REAR STN STL 500/665/825 |
|
|
|
N450-0006 | @ NUT, LOCKING 1/4-20 BLK ZINC |
|
|
|
N240-0001-RP | ELECTRODE ASSY, REAR BURN 450/500 |
|
|
|
N570-0008 | #8 X 1/2" SCREW - VIS #8 X 1/2" |
|
|
|
N350-0069 | HOUSING, REAR BURNER 500/665/825 |
|
|
|
N105-0023 | BUSHING, 0.875 IN, SPLIT |
|
|
|
N750-0016 | ELECTRONIC IGNITION LEAD / FIL D’ALLUMAGE ÉLECTRONIQUE |
|
|
|
N370-0735-BX | KIT, CART PANELS LT/RT BLK TXTR P500-3 |
|
|
|
N370-0891PG-BX | KIT, CART PANEL BLK TXTR P500-3 LPG |
|
|
|
N122-0592 | @CARDBOARD, LID PROTECTOR, P500-3 |
|
|
|
N370-1042 | KIT, DRIP PAN/ WARMING RACK P500-3-PHM |
|
|
|
N370-1125 | KIT, CAST STN STL COOKING GRIDS P500 |
|
|
|
N555-0038 | SPIT, ROD H/D 405/450/485/495/500 |
|
|
|
N472-0021 | PALLET, 42 IN X 62 IN P500-1/PRO500-1 |
|
|
|
N010-0736 | ASSY, REAR BRN 1.25MM ORIFICE 500 LPG |
|
|
|
N020-0143 | @POLYBAG 43" X 14" X 40" 150/ROLL |
|
|
|
N122-0245 | CARDBOARD, CORRUGATE 18IN X 250' ROLL |
|
|
|
N122-0316 | @CARDBOARD, SPACER REAR P500-1 |
|
|
|
N122-0590 | @CARDBOARD, SIDE SUPPORTS P500-3 |
|
|
|
N160-0023 | SB HOSE ORIFICE RETAINER CLIP / CLIP D’ARRÊT D’ORIFICE TUYAU BRÛLEUR LATÉRAL |
|
|
|
N200-0119-BK1HX | COVER, BASE BACK BLK TXTR P500-3-PHM |
|
|
|
N357-0021LY | IGNITER, BLOCK 2 SPARK 4.5V |
|
|
|
N370-0092 | KIT, ROTIS HVY DUTY - NO SPIT |
|
|
|
N370-0893-BX | KIT, DOORS DOUBLE BLK TXTR P500-3 |
|
|
|
N370-1118-BX-NA | KIT, ASSY FASTENRS BK TXTR P500-3 NA |
|
|
|
N370-1130-BK | KIT, SD SHELF REG+SIB P500-3-PHM |
|
|
|
N385-0417 | LABEL, RATING PLATE 500 EN/FR/ES |
|
|
|

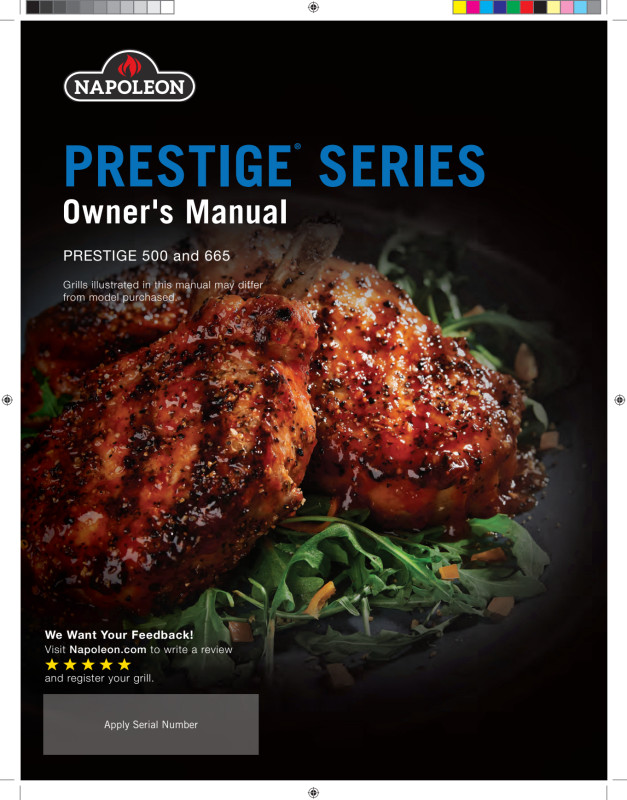

N415-0609 | MANUAL, COLOUR, PRESTIGE SERIES |
|
|
|

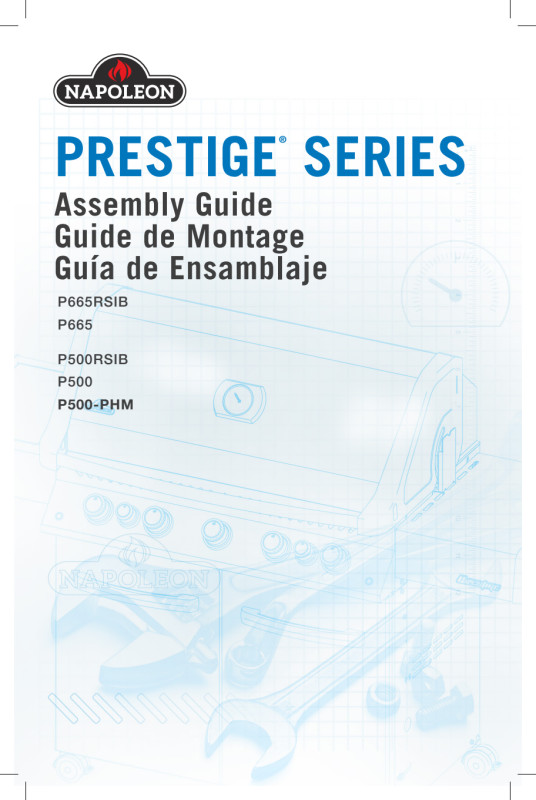

N415-0610 | GUIDE, ASSY COLOUR, P500-3/P665 |
|
|
|
N655-0191 | SUPPORT, TANK PROPANE 500-1/P665 |
|
|
|
N720-0058 | TUBE, REAR BURNER SUPPLY P/PRO 500 |
|
|
|

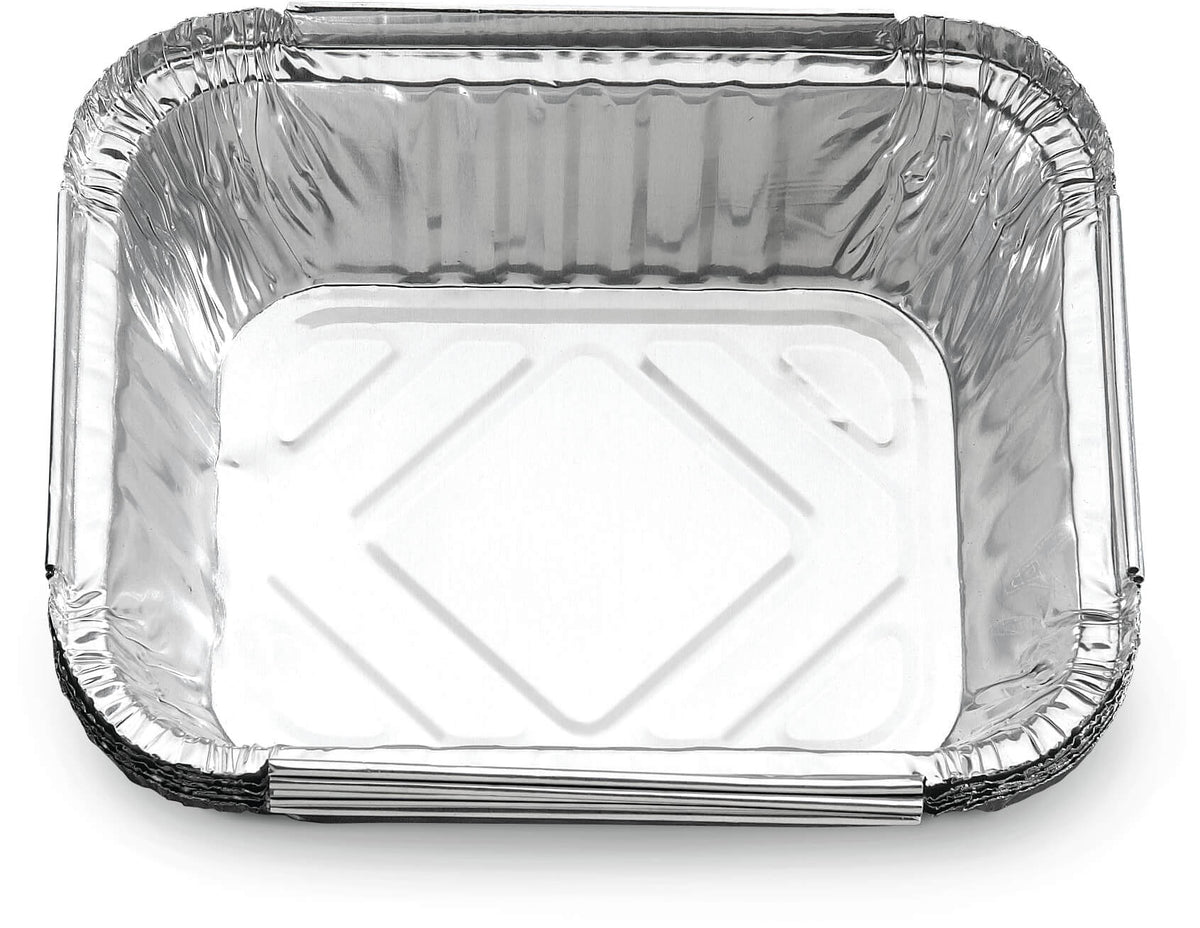

62007 | Disposable Grease Drip Trays (6" x 5") - Pack of 5 |
|
|
|

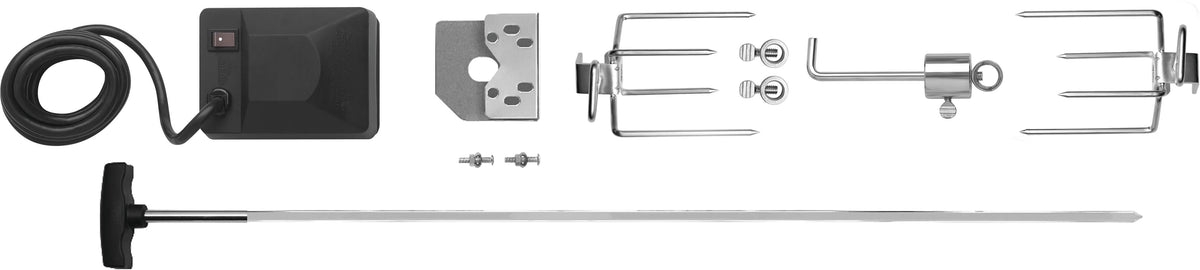

69211 | Heavy Duty Rotisserie Kit for PRO 500 & Prestige® 500 Grill Models |
|
|
|

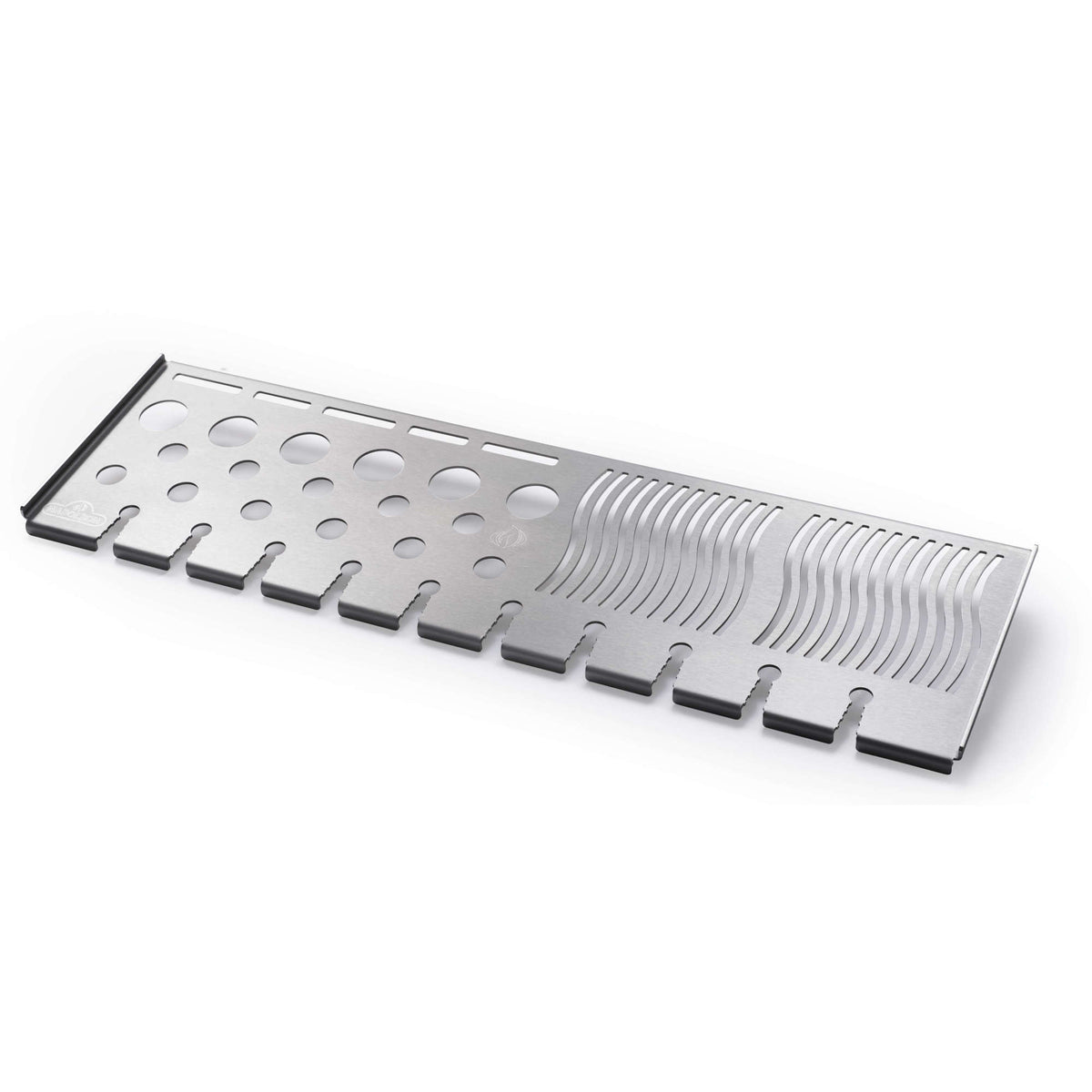

71500 | Multifunctional Warming Rack for Prestige® /PRO 500 |
|
|
|
N010-0714 | ASS'Y, MANIFOLD 500 RSIB LPG #60 |
|
|
|
N010-0991 | ASSY, SHELF SD BRN STN STL - P500 |
|
|
|
N010-0991-BK-SER | ASSY, SHELF IR SB BLACK P500-3-PHM |
|
|
|
N010-1052 | ASSY, WIRE HARNESS LED/SWITCH P500-3 |
|
|
|
N010-1053LY-BK | ASSY, BEZEL LED LIGHT LRG BLACK P500-3 |
|
|
|
N010-1054LY-BK | ASSY, BEZEL LED LIGHT SML BLACK P500-3 |
|
|
|
N010-1092-SER | ASSY, LID PIVOT HARDWARE 500/665/825 |
|
|
|
N010-1357 | ASSY, FLEX HOSE W/ 90DEG ELBOW FITTING |
|
|
|
N010-1401-SER | ASSY, CONT PANEL BLK P500RSIB-3-PHM LPG |
|
|
|
N010-1403-SER | ASSY, HOOD BLACK CASTINGS P500-3-PHM |
|
|
|
N010-1553 | ASSY,IR GRATE CAST SS CW PINS N/LOGO |
|
|
|
N010-1614-PHM | ASSY, LID SEMI-GLOSS BLACK P500-3-PHM |
|
|
|
N010-1623-SER | ASSY, DOOR BLK TXTR P500-3-PHM |
|
|
|
N010-1627-BK-SER | ASSY, SHELF SIDE L/R BK P500 -1 -2 -3 |
|
|
|
N020-0177-BK | BAGGIE, BRACKETS/HOLE COVER BLK P500-3 |
|
|
|
N080-0254-BK1TX | BRACKET, TANK INHIB BLK TXTR P500-PHM |
|
|
|
N080-0282-BK1HL | BRACKET, UNIT MNT LFT/RGHT BK P500-3 |
|
|
|
N080-0358 | NGZ DRIP PAN TRACK INFRA RED SD BRN |
|
|
|
N080-0371 | BRACKET, UNIT MOUNT TOP P500-1 |
|
|
|
N080-0385 | BRACKET, DOOR PIVOT LEFT P500-1 |
|
|
|
N080-0386 | BRACKET, DOOR PIVOT RIGHT P500-1 |
|
|
|
N105-0001 | BUSHING, PLASTIC 0.875" HOLE |
|
| N105-0002 | BUSHING, SNAP 1.5" HOLE |
|
|
|
|
N105-0011 | DOOR BUSHINGS / BAGUES DE PORTE |
|
|
|
N105-0018 | BUSHING, STOP, COMM QLTY AND H/D ROTIS |
|
|
|
N120-0019-BK0TX | CAP, DOOR TOP/BOTTOM BLACK P500-3 |
|
|
|
N120-0029-BK0TX | CAP, END SD SHLF BLACK P500-3 |
|
|
|
N130-0010-BK | CASTER, 3 IN WITH SHAFT, BRAKE BLACK |
|
|
|
N160-0022-BK0TX | CLIP, PIVOT PIN DOOR BLACK P500-3 |
|
|
|
N160-0045 | CLIP, FLEX LINE, ADJUSTABLE |
|
|
|
N200-0119-BK1HL | COVER, BASE BACK BLACK P500-3 |
|
|
|
N200-0133-BK1FL | COVER, HEAT SHIELD HOLE BLACK P500-3 |
|
|
|
N215-0016 | DEFLECTOR, WIND LARGE PRO500/825 |
|
|
|
N225-0046-BK1FL | DOOR FACE DBL DOOR MATTE BK P500-3 |
|
|
|
N240-0001 | ELECTRODE ASSY, REAR BURN 450/500/600 |
|
|
|
N240-0026 | SIDE BURNER ELECTRODE / ÉLECTRODE DE BRÛLEUR LATÉRAL |
|
|
|
N255-0027 | FITTING, UNION 3/8” FLARE / L’RACCORD, 3/8 PO ÉCLATER |
|
|
|
N275-0001 | FORKS, ROTIS FOR HVY DUTY KITS. |
|
|
|
N305-0140 | GRID, COOKING 7IN NO LOGO CAST STN STL |
|
|
|
N325-0079 | NEW "T" HANDLE PLASTIC FOR SPIT ROD |
|
|
|
N325-0091-BK4FL | HANDLE SIDE SHELF BLACK P500-3 |
|
|
|
N325-0103-BK4FL | HANDLE, DOOR BLACK P500-3 |
|
|
|
N335-0098-BK1TX | LID, IR SD BRN BLACK P500-3/RSE425-1 |
|
|
|
N340-0007 | NGZ TOOL HOOK DOOR 485/500 |
|
|
|

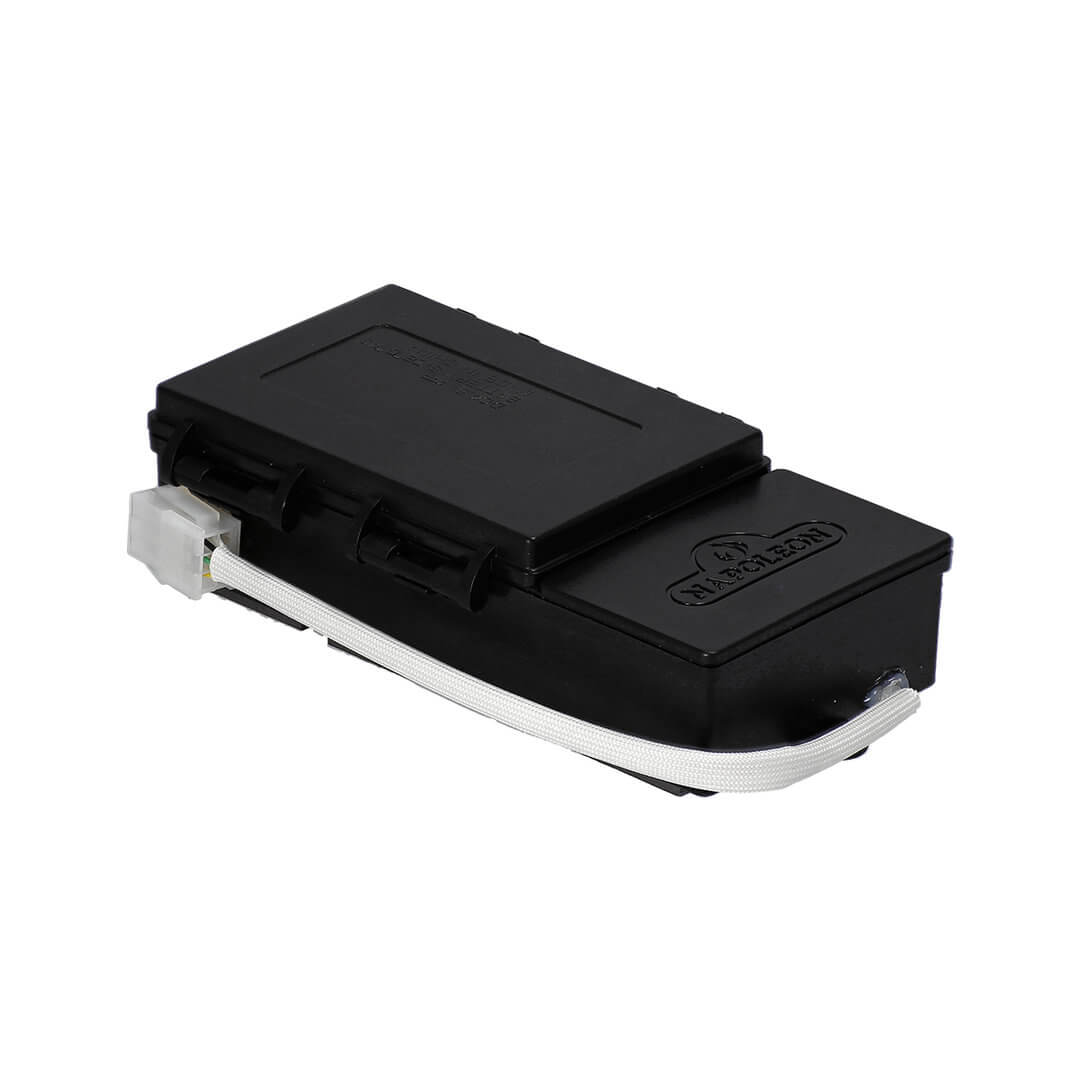

N350-0077LY | HOUSING, BATTERY 3D-CELL P500-3/P665 |
|
|
|
N357-0021 | ELECTRONIC IGNITION - 2 SPARK / ALLUMEUR ÉLECTRONIQUE - 2 ÉTINCELLES |
|
|
|
N370-0308 | KIT,COUNTER BALANCE FOR H/D ROTIS |
|
|
|
N380-0039-BK | KNOB, CONTROL LRG BLACK P500-3/RSE425-1 |
|
|
|
N380-0040-BK | KNOB, CONTROL SML BLACK P500-3/RSE425-1 |
|
|
|
N385-0144 | LOGO, PRESTIGE ALUMINUM |
|
|
|
N385-0307 | Napoleon LOGO MILLED (2015) |
|
|
|
N430-0009 | CATCH, MAGNETIC 500-1 |
|
|
|
N450-0008 | NUT, 1/4-20 STAINLESS STEEL |
|
|
|
N450-0044 | @ NUT,THREAD CUTTING 3/16 STUD SIZE |
|
|
|
N450-0049 | NUT, POST #10-24 SHELF PIVOT 304 STN STL |
|
|
|
N450-0050 | NUT, PLASTIC CAP TYPE 9.5mm BLACK |
|
|
|
N455-0067 | ORIFICE #58 SD BRN LPG (500/665 SD BRN) |
|
|
|
N475-0359-BK1FL | PANEL, LT/RT CART MATTE BLACK P500-3 |
|
|
|
N475-0360-BK1TX | PANEL, REAR CART BLK TXTR P500-3-PHM |
|
|
|
N475-0545-BK1HL | PANEL, CONTROL BLACK P500RSIB-3-PHM |
|
|
|
N485-0021 | NGZ PIN, HAIRPIN COTTER 2MM X 28MM (285) |
|
|
|
N485-0028 | PIN, PIVOT DOOR P500-1 |
|
|
|
N510-0013 | RUBBER BUMPER FOR GSS48COV / PARE-CHOCS POUR COUVERCLE |
|
|
|
N510-0020 | SOCKET, CASTER PLUG P500/P665 |
|
| N530-0003 | REGULATOR 14" HOSE 1 OUTLET |
|
|
|
|
N555-0091 | ROD, PIVOT SD LID |
|
|
|
N570-0013 | @SCREW #8 X 5/8" ST.ST. PAN HD. PHIL. |
|
|
|
N570-0024 | @ SCREW, 1/4-20 X 1/2 HEX WASHER |
|
|
|
N570-0038 | SCREW 1/4-20 X 1/2 STAINLESS / VIS 1/4-20 X 1/2 ACIER INOXYDABLE |
|
|
|
N570-0042 | @ SCRW,10-24 X 3/8 RND HD PHILIP STN STL |
|
|
|
N570-0076 | SCREW, #8X1/2 HI/LO TAP PHIL PAN HD |
|
|
|
N570-0078 | @ * SCREW, M4 X 8MM PAN HD PHIL ZINC |
|
|
|
N570-0082 | NGZ SCREW, 1/4-20 X 5/8" STN STL HEX HD |
|
|
|
N570-0087 | SCREW 1/4 X 20 X 7/8 HEX / VIS 1/4 X 20 X 7/8 HEX |
|
|
|
N570-0099 | SCREW, #14 X 3/4 ZINC PLTD AB THREAD |
|
|
|
N570-0100 | SCREW, #8 X 1/2 HI-LO TAPPING FLAT HD |
|
|
|
N570-0101 | SCREW, ADVERT 10-24 X 3/8" STN STL |
|
|
|
N585-0098 | SHIELD, HEAT SWITCH 665/825 |
|
|
|
N585-0125-BK1FL | SHIELD, HEAT CABINET MATTE BK P500-3 |
|
|
|
N590-0257-BK1FL | SHELF, BOTTOM MATTE BLACK P500-3 LPG |
|
|
|
N590-0291-BK1TX | SHELF, SD LFT/RGHT BLACK P500-3 |
|
|
|
N660-0011 | SWITCH, MOMENTARY 4.5V 120-250V 5A BLACK |
|
|
|
N710-0062 | TRAY, GREASE ALUM (HARD TOOLED) |
|
|
|
N710-0063 | BURNER DRIP TRAY (SIB) / BAC D’ÉGOUTTEMENT DU BRÛLEUR LATÉRAL (SIB) |
|
|
|
N710-0093 | PAN DRIP STN STL P/PRO500-1 |
|
|
|
N720-0044 | FLEX CONNECTOR 12" X 3/8" / CONNECTEUR FLEXIBLE 12" X 3/8" |
|
|
|

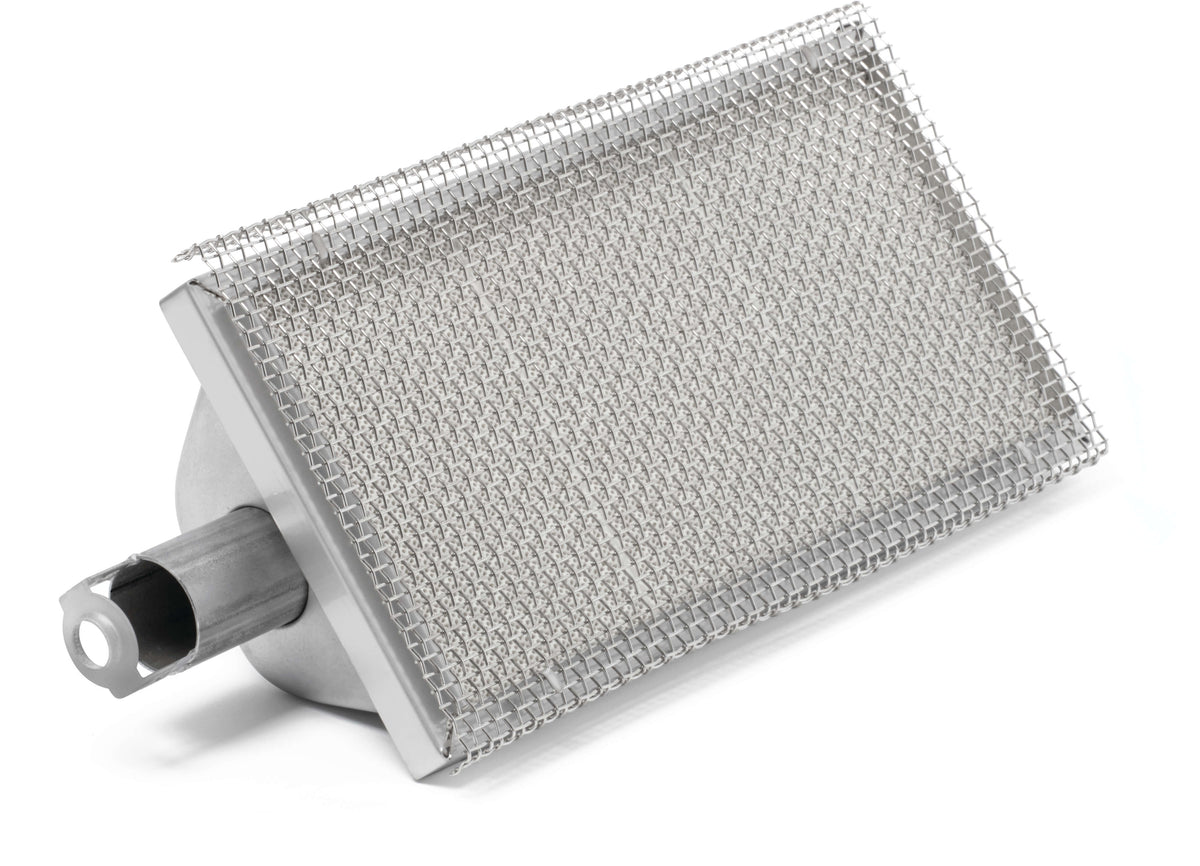

S81005 | Infrared Side Burner for LEX 485 & Prestige® 450/500/665 |
|
|
|
S81006 | Infrared Side Burner Screen for LEX 485 & Prestige® 450/500/665 |
|
|
|
S87001 | 1 Burner & 2 Sear Plates for Rogue® Series, Prestige® 500 and PRO 500 Model Gas Grills |
|
|
|
S87011 | Cross Light Bracket & Two Screws for PRO/Prestige® 500 Series |
|
|
|

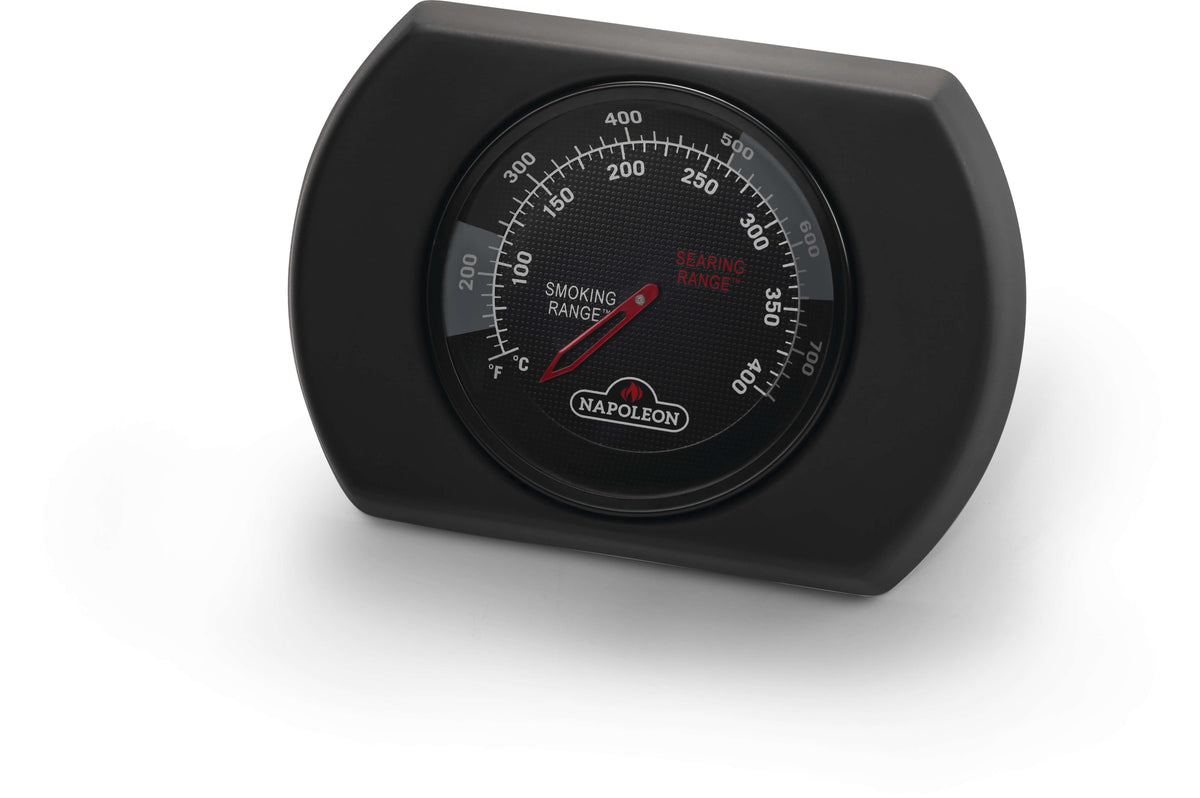

S91010 | Temperature Gauge for Phantom P500 / RSE425 |
|
