Prestige® 500 Propane Gas Grill with Infrared Side and Rear Burners, Stainless Steel | P500RSIBPSS-1 | Gas Grills | 80,000 BTU's | The Napoleon Prestige® 500 With Infrared Side and Rear Burners is the total grilling package; a cart model propane grill with the capabilities of an outdoor kitchen. With four main burners, an infrared rear and side burner, this grill can create meals using eight distinct cooking styles. Grill for a crowd with a capacity for up to thirty hamburgers on the main burners, and up to eight more over the infrared side burner. You'll know it's a Napoleon with the Iconic WAVE™ cooking grids for those distinctive sear marks. The unique design of our cooking grids provides even heating, preventing smaller foods from falling into the grill. Stainless steel construction resists corrosion. Not just durable on the outside; under the lid, is the same quality stainless steel used for the basin, tube burners, dual-level sear plates, and cooking grids. Seven staggered, stainless steel sear plates provide extra surface area for any drippings from your food to vaporize, avoiding flare-ups.
Obsolete
P500RSIBPSS-1
Prestige® 500 Propane Gas Grill with Infrared Side and Rear Burners, Stainless Steel
| Part Number | Part Description | ||
|---|---|---|---|
|
|
N010-0714 | ASS'Y, MANIFOLD 500 RSIB LPG #60 |
|
|
|
N010-0736 | ASSY, REAR BRN 1.25MM ORIFICE 500 LPG |
|
|
|
N010-0764 | ASSEMBLY HOOD GREY CASTINGS P500/PRO500 |
|
|
|
N010-0971-SS | ASSY LID STN GRY CAST SS HNDL P500-1 |
|
|
|
N010-0996-SER | ASSY, DOOR STN STL P500-1/-2/-3 |
|
|
|
N010-1092-SER | ASSY, LID PIVOT HARDWARE 500/665/825 |
|
|
|
N010-1357 | ASSY, FLEX HOSE W/ 90DEG ELBOW FITTING |
|
|
|
N051-0011 | BEZEL, CONTR KNOB - P/PRO/LD/LEX/TRMPH |
|
|
|
N051-0012 | BEZEL, CONTROL KNOB SM PRO665/825 |
|
|
|
N080-0254G | PROPANE TANK INHIBITOR BRACKET / SUPPORT INHIBITEUR BOUTEILLE DE PROPANE |
|
|
|
N080-0282-GY1HT | BRACKET, UNIT MNT LFT/RGHT GREY 500 |
|
|
|
N080-0353 | NGZ BRACKET, LEX 485/605/730 DOOR CATCH |
|
|
|
N080-0358 | NGZ DRIP PAN TRACK INFRA RED SD BRN |
|
|
|
N080-0359 | BRACKET, FOLDING SHELF "A" P500-1 |
|
|
|
N080-0360 | BRACKET, FOLDING SHELF "B" P500-1 |
|
|
|
N080-0371 | BRACKET, UNIT MOUNT TOP P500-1 |
|
|
|
N080-0386 | BRACKET, DOOR PIVOT RIGHT P500-1 |
|
|
|
N100-0045-SER | REAR BURNER (RIGHT) / BRÛLEUR ARRIÈRE (DROITE) |
|
|
|
N105-0011 | DOOR BUSHINGS / BAGUES DE PORTE |
|
|
|
N105-0012 | NGZ, BUSHING 1 1/2" SNAP SPLIT |
|
|
|
N105-0023 | BUSHING, 0.875 IN, SPLIT |
|
|
|
N120-0019-GY0TX | NGZ, CAP DOOR TOP/BOTTOM 485/500 (2012) |
|
|
|
N120-0029-GY0TX | CAP, END SD SHLF GREY P500-1 |
|
|
|
N135-0049-GY1HT | CASTING, BASE GREY 500 |
|
|
|
N160-0022 | NGZ CLIP, PIVOT PIN DOOR 485/500 (2012) |
|
|
|
N160-0044 | CLIP, FLAT, ORIFICE RETAINER SD BRN |
|
|
|
N200-0119-GY1SG | COVER, BASE BACK GREY P500-1 |
|
|
|
N215-0016 | DEFLECTOR, WIND LARGE PRO500/825 |
|
|
|
N240-0001 | ELECTRODE ASSY, REAR BURN 450/500/600 |
|
|
|
N240-0026 | SIDE BURNER ELECTRODE / ÉLECTRODE DE BRÛLEUR LATÉRAL |
|
|
|
N305-10001280 | GRID, WAVY, IR SIDE 3-TILE, STN STL |
|
|
|
N325-0091 | HANDLE SIDE SHELF P500/P665 |
|
|
|
N325-0103-SER | HANDLE, DOOR P500-3 |
|
|
|
N335-0048-M02 | NGZ LID, IR SD BRN MC485/PRO'S |
|
|
|
N340-0007 | NGZ TOOL HOOK DOOR 485/500 |
|
|
|
N350-0069 | HOUSING, REAR BURNER 500/665/825 |
|
|
|
N385-0144-SER | LOGO, PRESTIGE ALUMINUM C/W CLIPS |
|
|
|
N385-0513 | LOGO, NAPOLEON 3PIN |
|
|
|
N430-0009 | CATCH, MAGNETIC 500-1 |
|
|
|
N450-0006 | @ NUT, LOCKING 1/4-20 BLK ZINC |
|
|
|
N455-0067 | ORIFICE #58 SD BRN LPG (500/665 SD BRN) |
|
|
|
N475-0016 | MOUNT,ROT BRKT SS450/500/PT600/750 |
|
|
|
N475-0296 | PANEL, CONTROL P500RSIB |
|
|
|
N475-0359-GY1SG | PANEL, LEFT/RIGHT CART GREY 500-1 |
|
|
|
N475-0360-GY1SG | PANEL, REAR CART GREY 500-1 |
|
|
|
N485-0021 | NGZ PIN, HAIRPIN COTTER 2MM X 28MM (285) |
|
|
|
N485-0028 | PIN, PIVOT DOOR P500-1 |
|
|
|
N500-0039K | NGZ PLATE, IR SD BRN 485/500/605/730 |
|
|
|
N510-0013 | RUBBER BUMPER FOR GSS48COV / PARE-CHOCS POUR COUVERCLE |
|
|
|
N510-0020 | SOCKET, CASTER PLUG P500/P665 |
|
|
|
N520-0034 | RACK,WARMING CHROME PLTD ROD P500 |
|
|
|
N555-0084 | ROD, PIVOT LID SIDE BURNER |
|
|
|
N570-0008 | #8 X 1/2" SCREW - VIS #8 X 1/2" |
|
|
|
N570-0013 | @SCREW #8 X 5/8" ST.ST. PAN HD. PHIL. |
|
|
|
N570-0017 | SCREW, 1/4-20 X 1/2 STN STL PAN HEAD |
|
|
|
N570-0024 | @ SCREW, 1/4-20 X 1/2 HEX WASHER |
|
|
|
N570-0038 | SCREW 1/4-20 X 1/2 STAINLESS / VIS 1/4-20 X 1/2 ACIER INOXYDABLE |
|
|
|
N570-0042 | @ SCRW,10-24 X 3/8 RND HD PHILIP STN STL |
|
|
|
N570-0076 | SCREW, #8X1/2 HI/LO TAP PHIL PAN HD |
|
|
|
N570-0082 | NGZ SCREW, 1/4-20 X 5/8" STN STL HEX HD |
|
|
|
N570-0086 | @SCREW, AB THREAD 14 X 1/2 HEX HD WASHER |
|
|
|
N570-0087 | SCREW 1/4 X 20 X 7/8 HEX / VIS 1/4 X 20 X 7/8 HEX |
|
|
|
N570-0100 | SCREW, #8 X 1/2 HI-LO TAPPING FLAT HD |
|
|
|
N570-0122 | SCREW,1/4-20 X 3/8" THREAD ROLL STN STL |
|
|
|
N570-0132 | SCREW, 1/4-20 X 1/2 FLAT PH HEAD STN STL |
|
|
|
N585-0106-GY1SG | SHIELD, HEAT CABINET GREY P500-1 |
|
|
|
N590-0257-GY1SG | SHELF,BOTTOM P500-1 GREY LPG |
|
|
|
N590-0346 | SHELF, SIDE L/R SS P500 -1 -2 -3 |
|
|
|
N655-0191 | SUPPORT, TANK PROPANE 500-1/P665 |
|
|
|
N710-0062 | TRAY, GREASE ALUM (HARD TOOLED) |
|
|
|
N710-0063 | BURNER DRIP TRAY (SIB) / BAC D’ÉGOUTTEMENT DU BRÛLEUR LATÉRAL (SIB) |
|
|
|
N710-0093 | PAN DRIP STN STL P/PRO500-1 |
|
|
|
N720-0058 | TUBE, REAR BURNER SUPPLY P/PRO 500 |
|
|
|
N750-0016 | ELECTRONIC IGNITION LEAD / FIL D’ALLUMAGE ÉLECTRONIQUE |
|
|
|
S81005 | Infrared Side Burner for LEX 485 & Prestige® 450/500/665 |
|
|
|
S81006 | Infrared Side Burner Screen for LEX 485 & Prestige® 450/500/665 |
|
|
|
S82001 | 3" Caster Set for Rogue® Series and Prestige® 500 |
|
|
|
S83011 | Two Stainless Steel Cooking Grids for Prestige® 500 |
|
|
|
S85001 | 14" Regulator for Propane LEX, Rogue® & Prestige® Series |
|
|
|
S86003 | 2 Spark Igniter |
|
|
|
S87001 | 1 Burner & 2 Sear Plates for Rogue® Series, Prestige® 500 and PRO 500 Model Gas Grills |
|
|
|
S87011 | Cross Light Bracket & Two Screws for PRO/Prestige® 500 Series |
|
|
|
S87015 | Folding Side Shelf Kit for Prestige®, LEX, Rogue® and Triumph® |
|
| S88007 | Large Control Knob for Prestige® 500 Series |
|
|
|
|

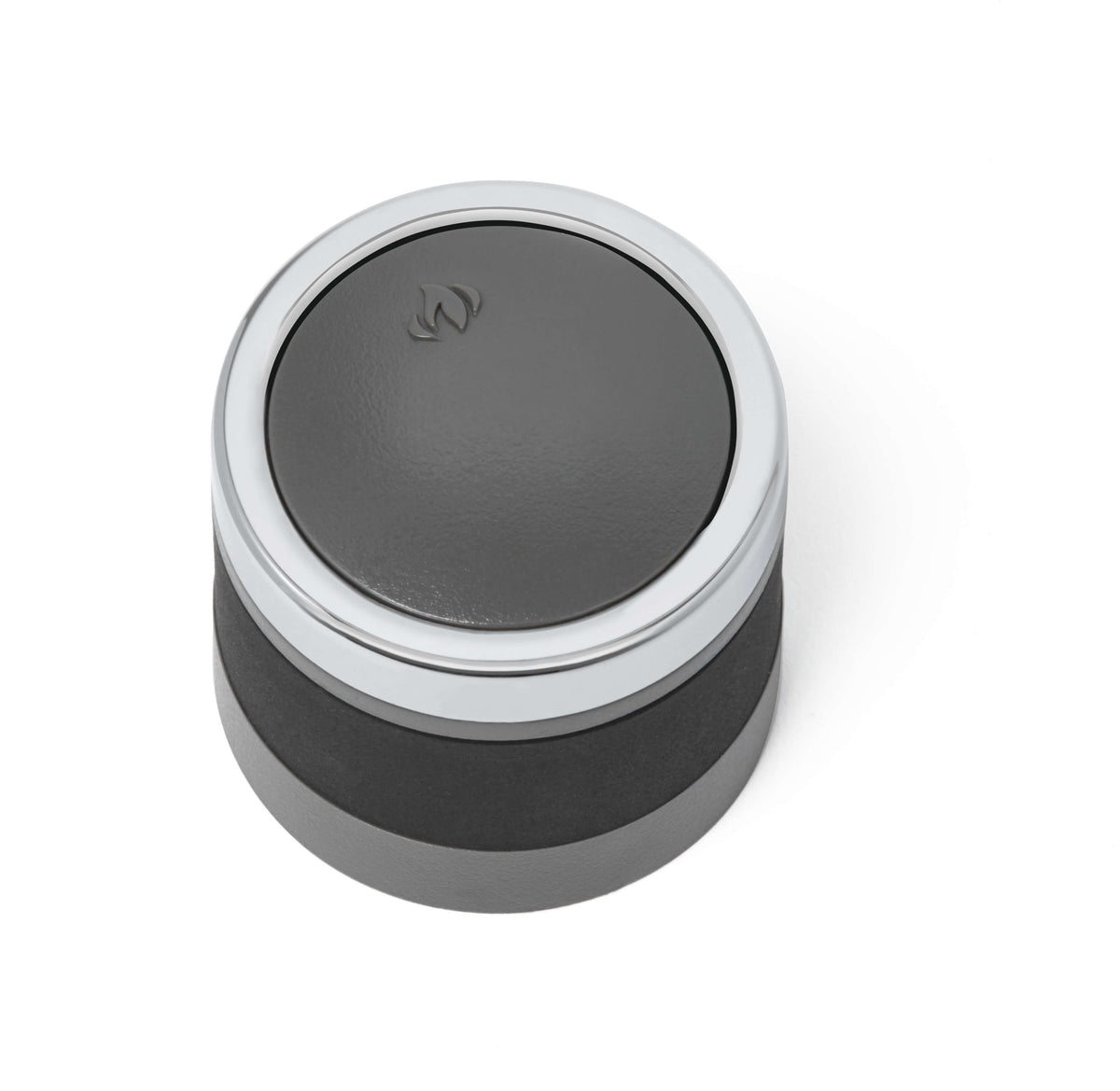

S88008 | Small Control Knob with a Clear Inset Ring for Prestige® 500 Series |
|
|
|
S91003 | Temperature Gauge for Prestige® Series |
|
|
|
N555-0084 | ROD, PIVOT LID SIDE BURNER |
|
|
|
N570-0008 | #8 X 1/2" SCREW - VIS #8 X 1/2" |
|
|
|
N570-0012 | @ BOLT 1/4"-20 X 5/8 CARRIAGE BLK |
|
|
|
N570-0013 | @SCREW #8 X 5/8" ST.ST. PAN HD. PHIL. |
|
|
|
N570-0015 | @ SCREW, LID PIVOT .303 SS |
|
|
|
N570-0017 | SCREW, 1/4-20 X 1/2 STN STL PAN HEAD |
|
|
|
N570-0024 | @ SCREW, 1/4-20 X 1/2 HEX WASHER |
|
|
|
N570-0038 | SCREW 1/4-20 X 1/2 STAINLESS / VIS 1/4-20 X 1/2 ACIER INOXYDABLE |
|
|
|
N570-0042 | @ SCRW,10-24 X 3/8 RND HD PHILIP STN STL |
|
|
|
N570-0076 | SCREW, #8X1/2 HI/LO TAP PHIL PAN HD |
|
|
|
N570-0082 | NGZ SCREW, 1/4-20 X 5/8" STN STL HEX HD |
|
|
|
N570-0086 | @SCREW, AB THREAD 14 X 1/2 HEX HD WASHER |
|
|
|
N570-0087 | SCREW 1/4 X 20 X 7/8 HEX / VIS 1/4 X 20 X 7/8 HEX |
|
|
|
N570-0089 | NGZ,SCREW IR ADD ON SD BRN GRATE |
|
|
|
N570-0100 | SCREW, #8 X 1/2 HI-LO TAPPING FLAT HD |
|
|
|
N570-0101 | SCREW, ADVERT 10-24 X 3/8" STN STL |
|
|
|
N570-0122 | SCREW,1/4-20 X 3/8" THREAD ROLL STN STL |
|
|
|
N570-0132 | SCREW, 1/4-20 X 1/2 FLAT PH HEAD STN STL |
|
|
|
N585-0106-GY1SG | SHIELD, HEAT CABINET GREY P500-1 |
|
|
|
N590-0248 | SHELF,SD BRN STN STL P500-1 |
|
|
|
N590-0257-GY1SG | SHELF,BOTTOM P500-1 GREY LPG |
|
|
|
N590-0291 | SHELF,SD LFT/RGHT STN STL P500-1/-2 |
|
|
|
N590-0346 | SHELF, SIDE L/R SS P500 -1 -2 -3 |
|
|
|
N655-0191 | SUPPORT, TANK PROPANE 500-1/P665 |
|
|
|
N710-0062 | TRAY, GREASE ALUM (HARD TOOLED) |
|
|
|
N710-0063 | BURNER DRIP TRAY (SIB) / BAC D’ÉGOUTTEMENT DU BRÛLEUR LATÉRAL (SIB) |
|
|
|
N710-0093 | PAN DRIP STN STL P/PRO500-1 |
|
|
|
N720-0058 | TUBE, REAR BURNER SUPPLY P/PRO 500 |
|
|
|
N750-0016 | ELECTRONIC IGNITION LEAD / FIL D’ALLUMAGE ÉLECTRONIQUE |
|
|
|
S81005 | Infrared Side Burner for LEX 485 & Prestige® 450/500/665 |
|
|
|
S81006 | Infrared Side Burner Screen for LEX 485 & Prestige® 450/500/665 |
|
|
|
S82001 | 3" Caster Set for Rogue® Series and Prestige® 500 |
|
|
|
S83010 | Cast Iron Infrared Side Burner Grid for LEX 485 & Prestige® 450/500/665 |
|
|
|
S83011 | Two Stainless Steel Cooking Grids for Prestige® 500 |
|
|
|
S85001 | 14" Regulator for Propane LEX, Rogue® & Prestige® Series |
|
|
|
S86003 | 2 Spark Igniter |
|
|
|
S87001 | 1 Burner & 2 Sear Plates for Rogue® Series, Prestige® 500 and PRO 500 Model Gas Grills |
|
|
|
S87011 | Cross Light Bracket & Two Screws for PRO/Prestige® 500 Series |
|
|
|
S87015 | Folding Side Shelf Kit for Prestige®, LEX, Rogue® and Triumph® |
|
| S88007 | Large Control Knob for Prestige® 500 Series |
|
|
|
|
S88008 | Small Control Knob with a Clear Inset Ring for Prestige® 500 Series |
|
|
|
S91003 | Temperature Gauge for Prestige® Series |
|
|
|
W450-0020 | NUTSERTS, #10-24 |
|
|
|
W735-0011 | WASHER - FLUE COLLAR (X2) / RONDELLE - COLLIER DU CONDUIT |
|
